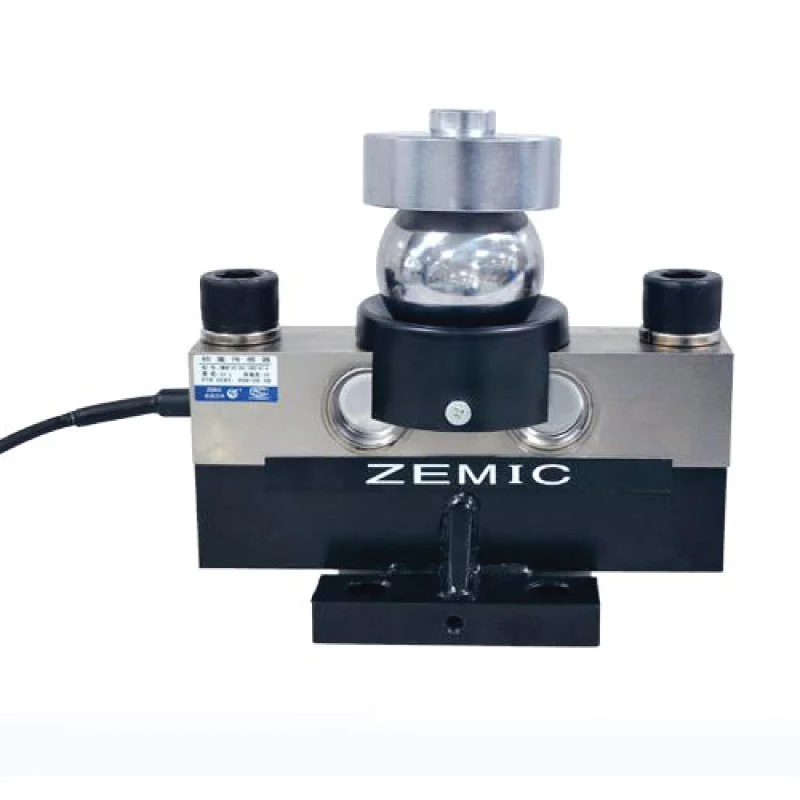

ZEMIC 40ton Load Cell for Truck Scale Weight Bridge (HM9B)
- Capacity 40ton
- Input Resistance 752.35 Ω
- Output Resistance 704.68 Ω
- Sensitivity 2.0013 mV/V
HM9B load cells are available in the capacities of 10t to 50t. Alloy steel construction, nickel-plated, hermetically welded,oil-proof, waterproof, and anti-corrosive gas and medium making, is suitable for all kinds of environments. Dual shear beam, Suitable for electronic truck scales, railway scales, and other electronic weighing devices. It is a safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
FEATURES OF ZEMIC 40TON LOAD CELL FOR TRUCK SCALE WEIGHT BRIDGE (HM9B)
- Capacity 40ton
- Usage Consumption Sensor
- Theory Resistance Sensor
- Output Analog Sensor
- Input Resistance 752.35 Ω
- Output Resistance 704.68 Ω
- Sensitivity 2.0013 mV/V
SPECIFICATION OF ZEMIC 40TON LOAD CELL FOR TRUCK SCALE WEIGHT BRIDGE (HM9B)
| Name | Details |
| Model | HM9B |
| Brand | ZEMIC |
| Origin | China |
| Capacity | 40ton |
| Usage | Consumption Sensor |
| Theory | Resistance Sensor |
| Output | Analog Sensor |
| Input Resistance | 752.35 Ω |
| Output Resistance | 704.68 Ω |
| Sensitivity | 2.0013 mV/V |
TOTAL OF ZEMIC 40TON LOAD CELL FOR TRUCK SCALE WEIGHT BRIDGE (HM9B)
| Name | Details | |||||
| Capacity | t | 10/20/25/30/40SE/40/50 | ||||
| Accuracy | C1 | C2 | C3 | A5M | B10M | |
| Approvals | OIML R60 C3 | |||||
| Maximum number of verification intervals |
n max | 1000 | 2000 | 3000 | 5000 | 10000 |
| Minimum load cell verification interval |
v min | Emax/3000 | Emax/5000 | Emax/7500 | Emax /15000 |
Emax /10000 |
| Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 |
| Creep | (%FS/30min) | ≤±0.038 | ≤±0.024 | ≤±0.016 | ≤±0.017 | ≤±0.040 |
| Temperature effect on sensitivity |
(%FS/10℃) | ≤±0.028 | ≤±0.017 | ≤±0.011 | ≤±0.013 | ≤±0.040 |
| Temperature effect on zero |
(%FS/10℃) | ≤±0.047 | ||||
