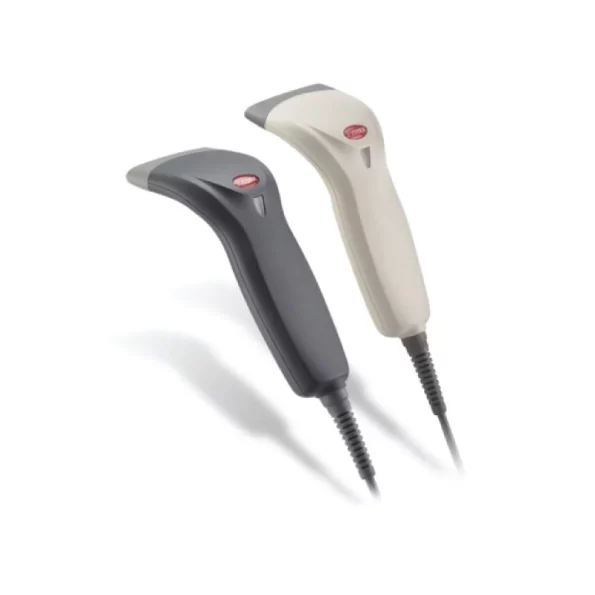

Zebex Barcode Scanner (Z-3220)
- Type Barcode Scanner
- Resolution 2,500 pixel linear sensor
- Bar Code Scan Speed 150 scans per second
- Light Source 625 nm visible LED
The sleek new Z-3220 delivers outstanding scanning performance at a competitive price. Specially designed for first time users, the scanner is ergonomically shaped and employs a field replaceable cable allowing for fast and easy disconnection from the host. With its newly improved decoding capability, the scanner provides an exceptional first-read-rate, making it ideal for retail applications.
- Proprietary Ultras can decoding technology.
- Light and rugged design.
- Advanced image capture technology.
- Multi-interface communication.
- Ideal for beginners.
- Captures barcodes on mobile phone, tablet, or computer screens.
FEATURES OF ZEBEX BARCODE SCANNER (Z-3220)
- Type Barcode Scanner
- Resolution 2,500 pixel linear sensor
- Bar Code Scan Speed 150 scans per second
- Light Source 625 nm visible LED
- Interface Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
SPECIFICATION OF ZEBEX BARCODE SCANNER (Z-3220)
| Name | Details |
| Model | Z-3220 |
| Brand | Zebex |
| Origin | China |
| Optical system | 2, 500 pixel linear sensor |
| Depth of field | 0mm (3 mil), 0 – 40mm (4 mil), 0 – 45mm (5 mil), 0 – 50mm (7.5 mil), 0 – 60mm (10 mil), 0 – 75mm (13 mil), 0 – 90mm (20 mil) |
| Indicators | Two colors LED, beep |
| Interface (Built-in) | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
| Cable length | Standard 2M straight |
| Input Voltage | 5 VDC +-10% |
| Number of Scan | 150 scans per second |
| 1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite |
| Dimensions | 161.5 x 72.5 x 55.2mm (device only) |
| Weight | 91gm |
| Color | Regular |
| Others | Light Source: 625 nm visible LED, Microprocessor: 32-bit, Standby Current: 55 mA typical, Proprietary Ultrascan decoding technology, Light and rugged design, Advanced image capture technology, Multi-interface communication, Ideal for beginners, Captures b |
| Warranty | 1 year |
PACKING INFORMATION OF ZEBEX BARCODE SCANNER (Z-3220)
VIDEO REVIEW OF ZEBEX BARCODE SCANNER (Z-3220)
