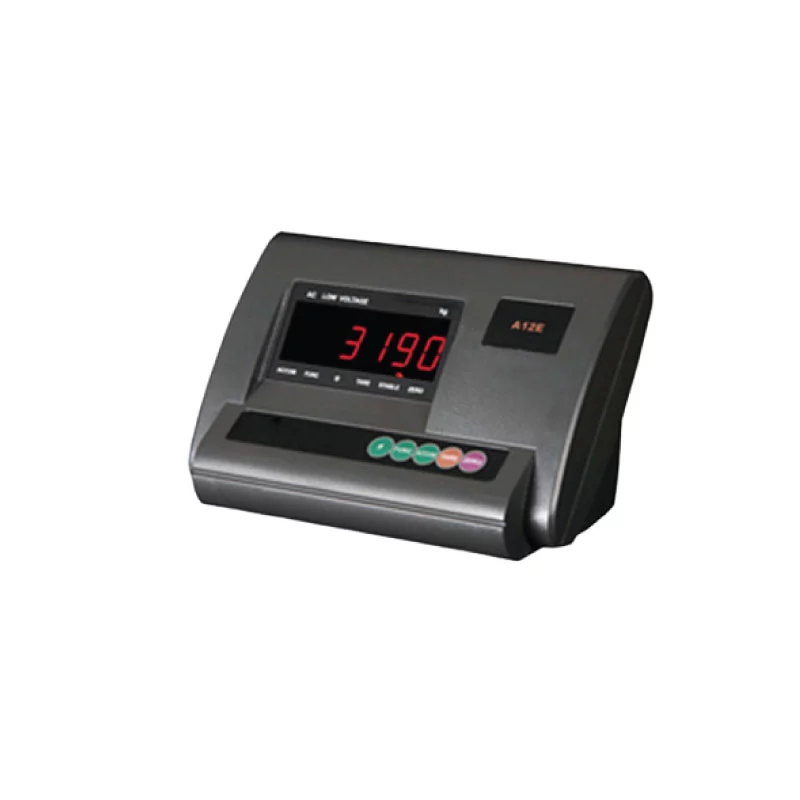

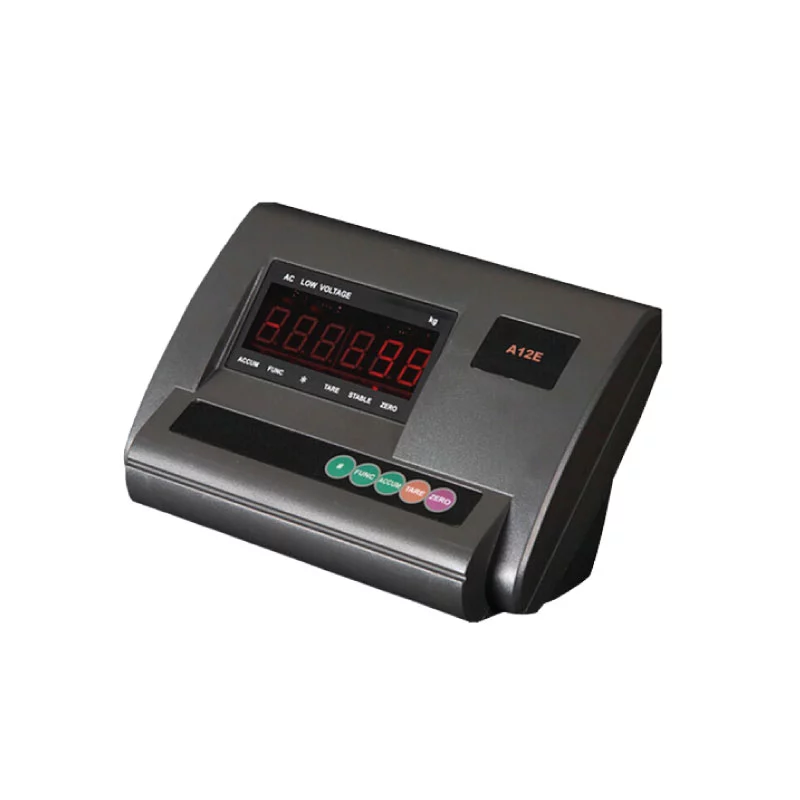

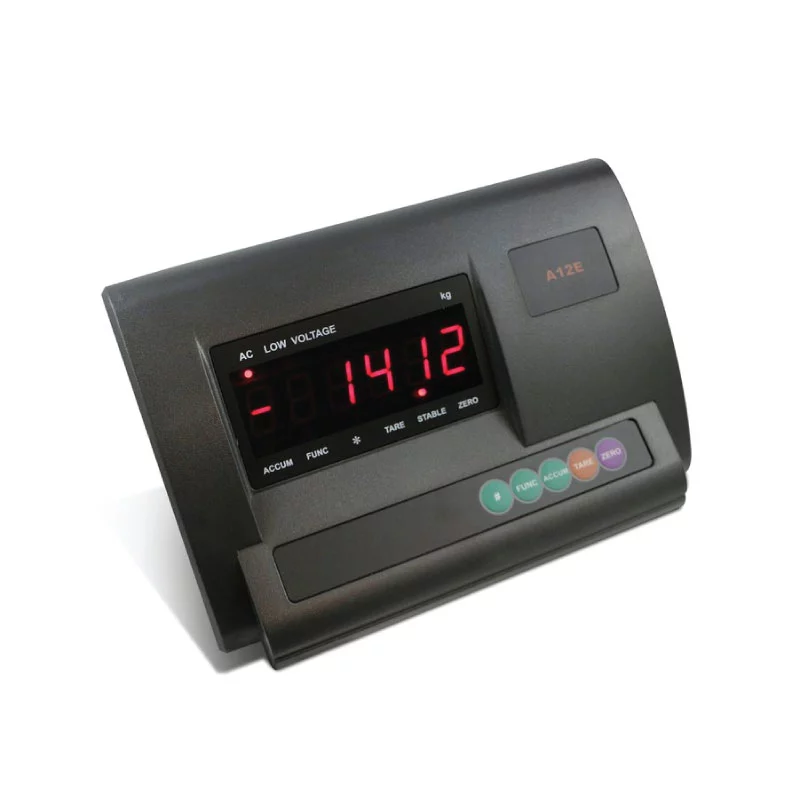

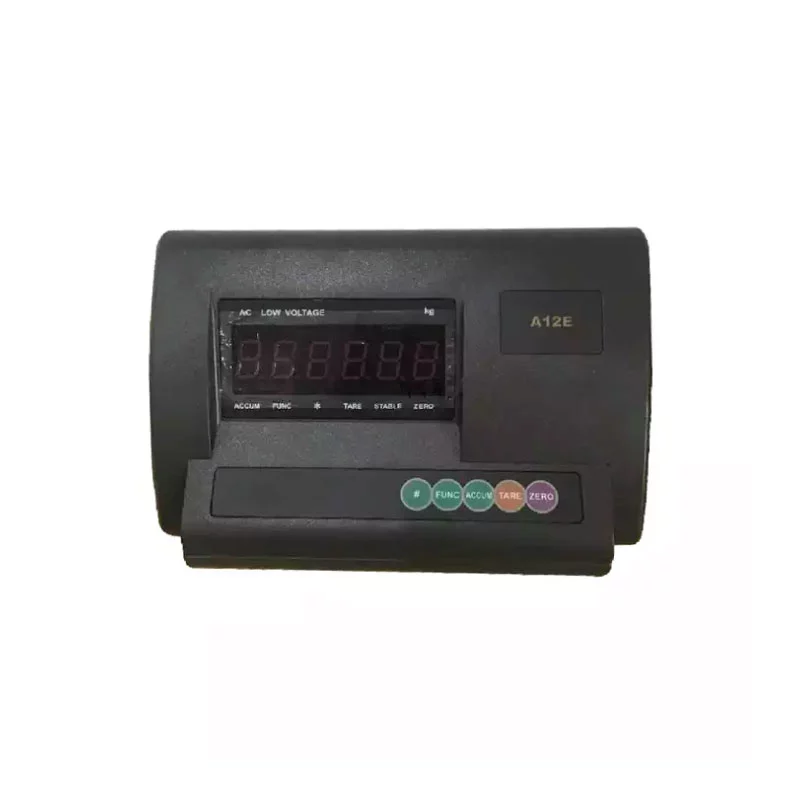

YAOHUA Weighing Indicator (XK3190-A12E)
- Accuracy Grade Ⅲ, n=3000.
- Sample Rate 10 times / second.
- Load cell sensitivity 1.5～3mV / V.
- Scale interval 1/2/5/10/20/50 for option.
Fast speed, high precision Σ-Δ A/D conversion Anti-vibration software Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell A/D conversion with readability 1/30000 Use inner code to replace weight observing and analysis tolerance Software to strength anti-vibration ability Zero tracking, zero range setup (auto/manual) Setup digital filter intensity, range and stable time Counting function with unit data save protection in case of power off Alarm for low battery and auto power.
FEATURES OF YAOHUA WEIGHING INDICATOR (XK3190-A12E)
- Accuracy Grade Ⅲ, n=3000.
- Sample Rate 10 times / second.
- Load cell sensitivity 1.5～3mV / V.
- Scale interval 1/2/5/10/20/50 for option.
- Display 6 bits LCD，6 state indicating signals.
- Scoreboard interface (optional) In serial output mode：current loop signal,transmission distance≤50m，.
- Communication interface (optional) RS232C；Baud rate 1200/2400/4800/9600 optional.
- Power supply Battery DC6V/4AH.
- Operating temperature/humidity 0～40℃；≤90%RH.
- Transporting temperature -20～50℃.
SPECIFICATION OF YAOHUA WEIGHING INDICATOR (XK3190-A12E)
| Name | Details |
| Model | XK3190-A12 |
| Brand | YAOHUA |
| Origin | China |
| Accuracy | Grade Ⅲ, n=3000 |
| Sample Rate | 10 times / second |
| Load cell sensitivity | 1.5～3mV / V |
| Scale interval | 1/2/5/10/20/50 for option |
| Display | 6 bits LCD，6 state indicating signals |
| Scoreboard interface (optional) | In serial output mode：current loop signal,transmission distance≤50m， |
| Communication interface (optional) | RS232C；Baud rate 1200/2400/4800/9600 optional |
| Power supply | Battery DC6V/4AH |
| Operating temperature/humidity | 0～40℃；≤90%RH |
| Transporting temperature | -20～50℃ |
PACKING INFORMATION OF YAOHUA WEIGHING INDICATOR (XK3190-A12E)
VIDEO REVIEW OF YAOHUA WEIGHING INDICATOR (XK3190-A12E)
