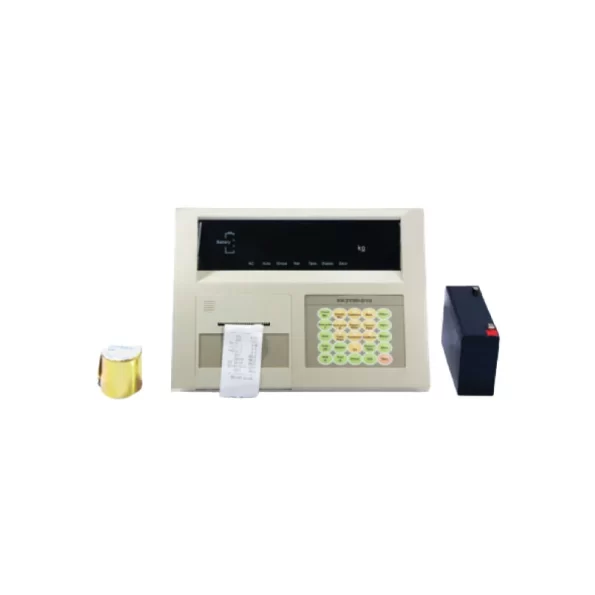

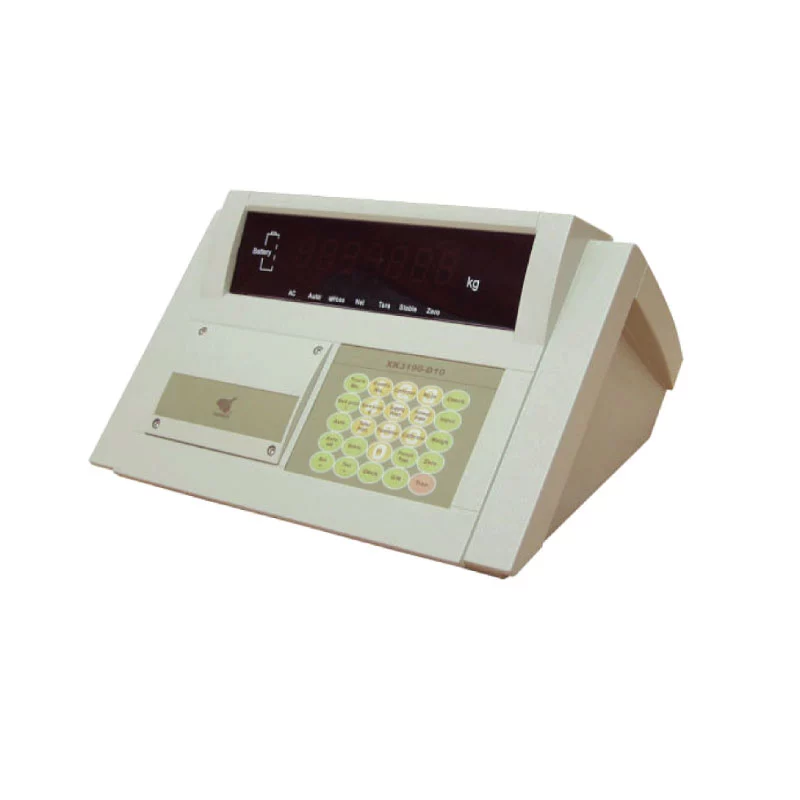

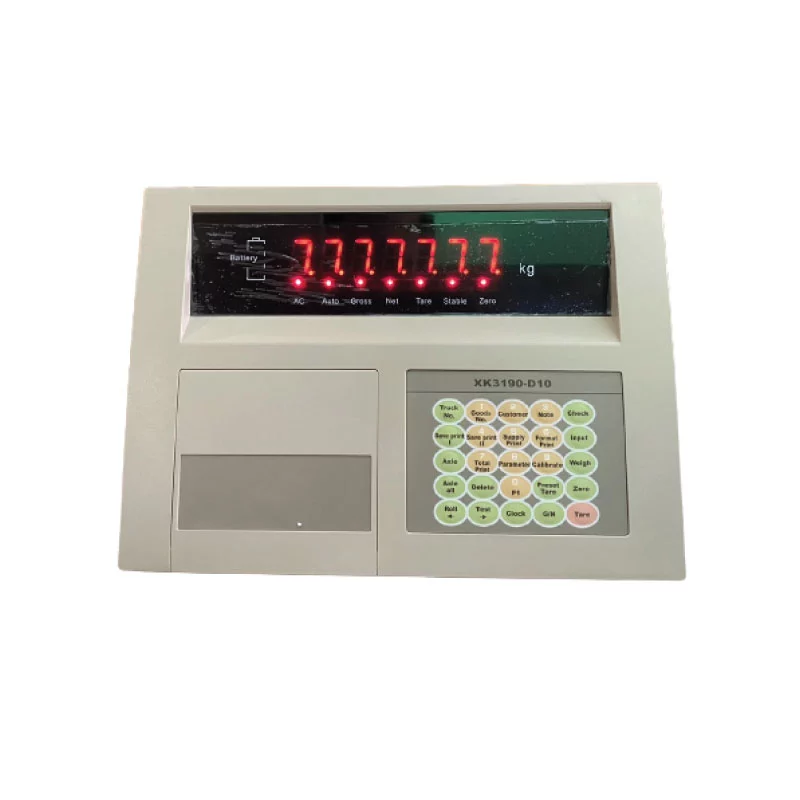

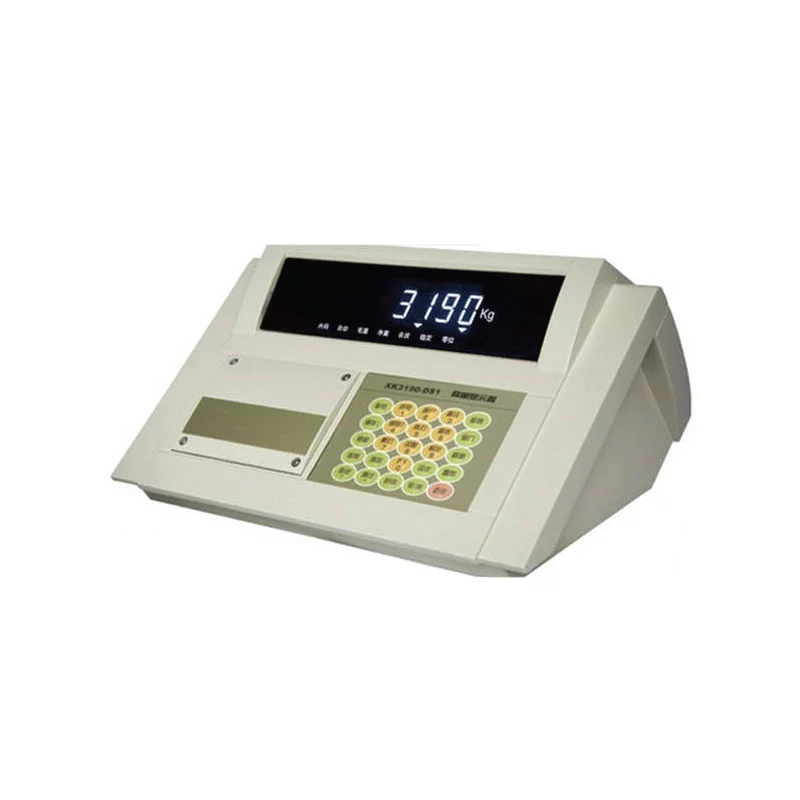

YAOHUA D10 Weighing indicator (XK3190-D10)

Accuracy Class III,N=5000
A/D Conversion Method ∑-Δ
Input Signal Range -15mV ~ 30mV
A/D conversion speed 200 times/sec.

Description

Weighing indicator XK3190-D10 adopts high precision ∑-Δ A/D conversion technology, widely applied in electronic floor scale、electronic truck scale、static railroad truck scale and so on alike static weighing system equipped with 1~8 load cell.

FEATURES OF YAOHUA D10 WEIGHING INDICATOR (XK3190-D10)

Accuracy Class III,N=5000
A/D Conversion Method ∑-Δ
Input Signal Range -15mV ~ 30mV
A/D conversion speed 200 times/sec.
Nonlinearity ≤0.0015%FS
Load Cell Excitation DC5V; I:120mA
Max. connection number of load cell 8 at 350 ohm or 16 at 700 ohm
Load cell connection mode 6 wire, auto compensation for long distance
Max. Sensitivity 0.5uV/d
Display 7 bits LED, 7 status indications,3 battery indications
Clock real clock without effect on power off
Standard Scoreboard interface (Standard)
Transmission distance Current loop≤2000 meters
Serial sending signal by current loop with baud rate 600
Communication interface ( RS232 C standard; RS422 optional)
Transmission distance RS232C≤30 meters; RS422≤1200 meters
Parallel sending, able to connect with wide-line printer KX-P1121、KX-P1131、LQ300K;
Fuse 0.5A
Print Print interface (Standard)
Power supply AC 187~242V,49~51HZ;DC:6V/10Ah

SPECIFICATION OF YAOHUA D10 WEIGHING INDICATOR (XK3190-D10)

Name	Details
Model	XK3190-D10
Brand	YAOHUA
Origin	China (Jiangsu)
Accuracy	Class III,N=5000
A/D Conversion Method	∑-Δ
Input Signal Range	-15mV ~ 30mV
A/D conversion speed	200 times/sec.
Nonlinearity	≤0.0015%FS
Load Cell Excitation	DC5V; I:120mA
Max. connection number of load cell	8 at 350 ohm or 16 at 700 ohm
Load cell connection mode	6 wire, auto compensation for long distance
Max. Sensitivity	0.5uV/d
Display	7 bits LED, 7 status indications,3 battery indications
Clock	real clock without effect on power off
Standard	Scoreboard interface (Standard)
Transmission distance	Current loop≤2000 meters
Serial sending signal by current loop with baud rate	600
Communication interface	( RS232 C standard; RS422 optional)
Transmission distance	RS232C≤30 meters; RS422≤1200 meters
Parallel sending, able to connect with wide-line printer	KX-P1121、KX-P1131、LQ300K;
Fuse	0.5A
Print	Print interface (Standard)
Power supply	AC 187~242V,49~51HZ;DC:6V/10Ah
