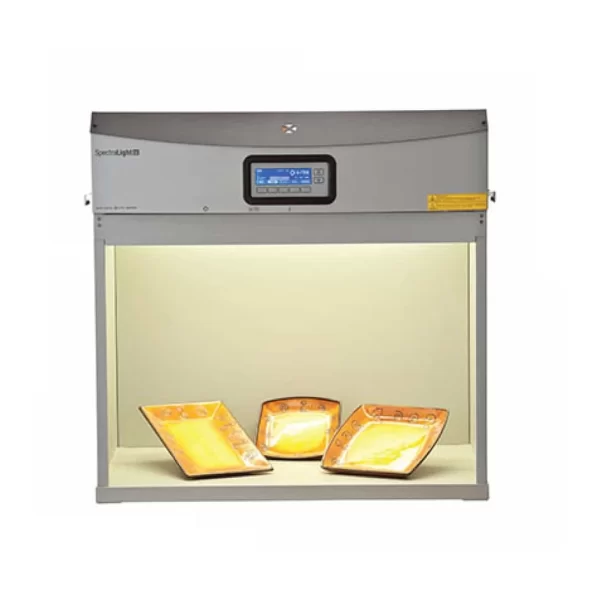

X-Rite 3 Feet 7 Option MACBETH Light Box Cabinet (SPLQC)
- Size 2 Feet.
- Light source 7 option.
- Dimensions (WxDxH) (94.5×61×70) cm.
- Viewing Area (WxDxH) (90x58x58) cm.
MACBETH Light Box Importer and supplier in Bangladesh. MACBETH Light Box is used to test color for Color Matching. MACBETH Light Box is a Textile Lab Machinery.
X-Rite 3 Feet 7 Option MACBETH Light Box Cabinet (SPLQC) is conversant to many people working in garments, textile, plastic and other industries. it is used to test color for Color Matching. X-Rite 3 Feet 7 Option MACBETH Light Box Cabinet (SPLQC) widely used in the garments, textile, plastic and other industries. that is offers a standardized visual evaluation of color. it is used for the determination of the color fastness in the garments, textile, plastic and other industries. The Color fastness is determined by an electronic crock meter machine which is a projected and highly coveted machine in the textile market. For this reason, X-Rite 3 Feet 7 Option MACBETH Light Box Cabinet (SPLQC) play an important role in garments, textile, plastic and other industries.
FEATURES OF X-RITE 3 FEET 7 OPTION MACBETH LIGHT BOX CABINET (SPLQC)
- Seven option Light source Color Light Box.
- Color Light Box Full body made Fiber-reinforce.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch easy to operate each light source.
- The energy-saving device which generates lower heat & high efficiency.
- Automatic changeable into another light source by switching.
- We provide Two year of free service warranty.
SPECIFICATION OF X-RITE 3 FEET 7 OPTION MACBETH LIGHT BOX CABINET (SPLQC)
| Name | Details |
|---|---|
| Model | SPLQC |
| Brand | X-Rite |
| origin | USA |
| Weight | 78.5 kg |
| Dimensions (WxDxH) | (94.5×61×70) cm |
| Viewing Area (WxDxH) | (90x58x58) cm |
| Lightsource | Seven light source. |
| Power Source | Electric. |
| Voltage | 100, 115, 230V |
| Body Material | Steel |
| Warm Up Time | Instant On |
| Unit Color | Munsell N7 |
| Storage Temperature Range | 32°F to 104°F / 0°C to 40°C |
| Service Indicator | Yes |
| Safety | UL Listed |
| Shipped Weight | 173 lb. / 78.5 kg. |
| Operating Temperature Range | 32°F to 95°F / 0°C to 35°C |
| Light Level Sensor | N/A |
| Languages Supported | English/Chinese |
| Lamp Timer | Yes |
| Lamp Life | 400-2000hrs |
| Internal Temperature & Humidity Sensor | No |
| Instrument Display | LCD Screen |
| Humidity | RH 0 to 95% max (non-condensing) |
| Industry Standards | ISO: 3664, 3668, 13076, 23603 AATCC: EP9 ASTM: D1729 SAE: J361 DIN: 6173 CIE: S012/E, 51.2 BSI: BS 950 Pt.2 |
| Communication Interface | Touchpad |
| Light Level Adjustment | Digital |
| Light Level Sensor | YES |
| Calibration | No |
| Light Source | D50 or D65, UVA, CIE A, one of TL83/TL84/U30/U35, and one of CWF/LED (either L940 or L950) |
| Visible Metamerism Index | Grade A/B |
| Wattage | 1150W |
| UV Metamerism Index | Grade B ( AS DEFINED BY CIE 51.2-1999 TECHNICAL REPORT, “A METHOD FOR ASSESSING THE QUALITY OF DAYLIGHT SIMULATORS FOR COLORIMETRY.” ) |
| Warranty | Two year free service |
PACKING INFORMATION OF X-RITE 3 FEET 7 OPTION MACBETH LIGHT BOX CABINET (SPLQC)
VIDEO REVIEW OF X-RITE 3 FEET 7 OPTION MACBETH LIGHT BOX CABINET (SPLQC)
