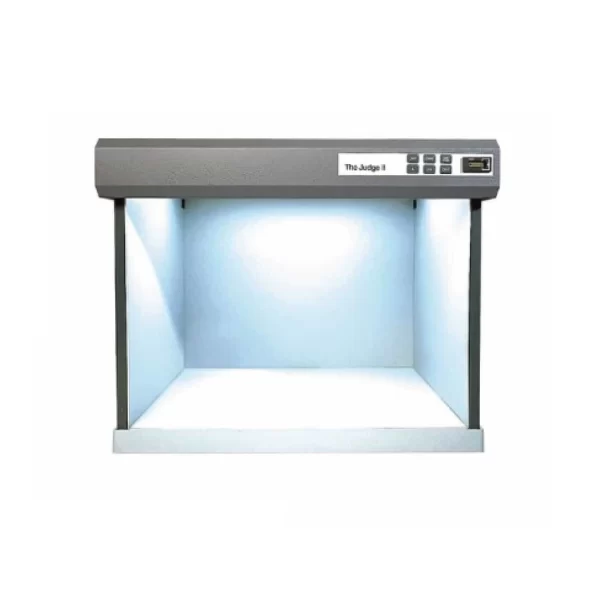

X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge II)
- Size 2 Feet.
- Light source 5 option.
- Dimensions (WxDxH) (710 x 545 x 540)mm.
- Viewing Area (WxDxH) (680 x 360 x 495)mm.
Color Light Box Importer and supplier in Bangladesh. Color Light Box is used to test color for Color Matching. Color Light Box is a Textile Lab Machinery.
X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge II) is conversant to many people working in garments, textile, plastic and other industries. it is used to test color for Color Matching. X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge II) widely used in the garments, textile, plastic and other industries. that is offers a standardized visual evaluation of color. it is used for the determination of the color fastness in the garments, textile, plastic and other industries. The Color fastness is determined by an electronic crock meter machine which is a projected and highly coveted machine in the textile market. For this reason, X-Rite 2 Feet 5 Option MACBETH Light Box Cabinet (Judge II) play an important role in garments, textile, plastic and other industries.
FEATURES OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE II)
- Five option Light source Color Light Box.
- Color Light Box Full body made Fiber-reinforce.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch easy to operate each light source.
- The energy-saving device which generates lower heat & high efficiency.
- Automatic changeable into another light source (F, UV, D65, TL84, CWF) by switching.
- We provide One year of free service warranty.
SPECIFICATION OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE II)
| Name | Details |
|---|---|
| Model | Judge II |
| Brand | X-Rite |
| origin | USA |
| Weight | 27.2kg |
| Dimensions (WxDxH) | 55.5 × 67.3 × 52 cm |
| Viewing Area (WxDxH) | 22.25 x 27in |
| Lightsource | Five light source. |
| Light Type | Daylight (D75, D65 or D50). Seven-phosphor Fluorescent. Cool White Fluorescent. Incandescent Home Lighting. Ultraviolet. |
| Power Source | Electric. |
| Voltage | 220 ~ 240V |
| Body Material | Fiber-reinforce |
| Standard | ASTM D1729, ISO 3664, DIN, ANSI & BSI |
| Warranty | One year free service |
LIGHT SOURCE OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE II)
| Light Source | Color viewing applications / Uses of Light | Color Temp. (K) | Power (W) | Quantity |
|---|---|---|---|---|
| D65 | International standard Artificial Daylight / Natural Daylight | 6500 | 18 | 2 Pieces |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 | 2 Pieces |
| F | “Sun-setting Light Yellow” incandescent light source | 2700 | 40 | 4 Pieces |
| UV | ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wave length: 365nm | 20 | 1 Pieces |
| CWF | (Cool White Fluorescent) American Standard | 4150 | 18 | 2 Pieces |
PACKING INFORMATION OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE II)
VIDEO REVIEW OF X-RITE 2 FEET 5 OPTION MACBETH LIGHT BOX CABINET (JUDGE II)
