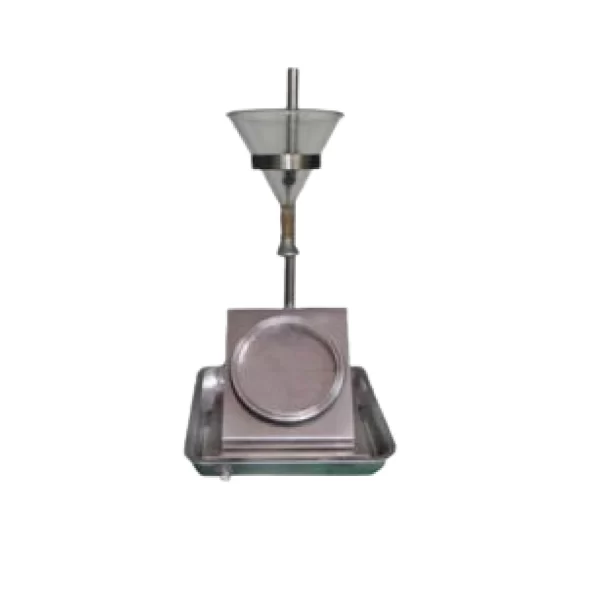

Tony Spray Rating Tester (HTF-010)
- 150mm Glass Funnel.
- 250ML Water spray quantity.
- 260 x 230 x 550mm Dimensions.
- 45° Degree Sample press release angle .
Tony Spray Rating Tester (HTF-010) can perform a shower test to determine the resistance of fabric to surface wetting by water. It is used to detect the tendency of fabric to get wet. Tony Spray Rating Tester (HTF-010) is Made of stainless steel the instrument is durable. it is a specially designed specimen ring clamp, operate easily and keeps the result more objective. The Tony Spray Rating Tester (HTF-010) nozzle is a high precision machined component, ensuring the water flow complies exactly with the standards.
FEATURES OF TONY SPRAY RATING TESTER (HTF-010)
- 6kg Weight.
- 150mm Glass Funnel.
- 250ML Water spray quantity.
- 260 x 230 x 550mm Dimensions.
- 45° Degree Sample press release angle .
SPECIFICATION OF TONY SPRAY RATING TESTER (HTF-010)
| Name | Details |
|---|---|
| Model | HTF-010 |
| Brand | Tony International (HK) Co. Ltd |
| Origin | Hong Kong |
| Dimensions | 260 x 230 x 550mm |
| Weight | 6kg |
| Water spray quantity | 250ML |
| Nozzle head to the sample center distance | 150mm |
| Sample press release angle | 45° Degree |
| Glass Funnel | φ150 * 150mm |
STANDARD OF TONY SPRAY RATING TESTER (HTF-010)
| Name |
|---|
| ISO4920 |
| BS EN 24920 |
| BS 3702 AATCC 22 |
| M&S P23 |
| NEXT 23 |
VIDEO REVIEW OF TONY SPRAY RATING TESTER (HTF-010)
