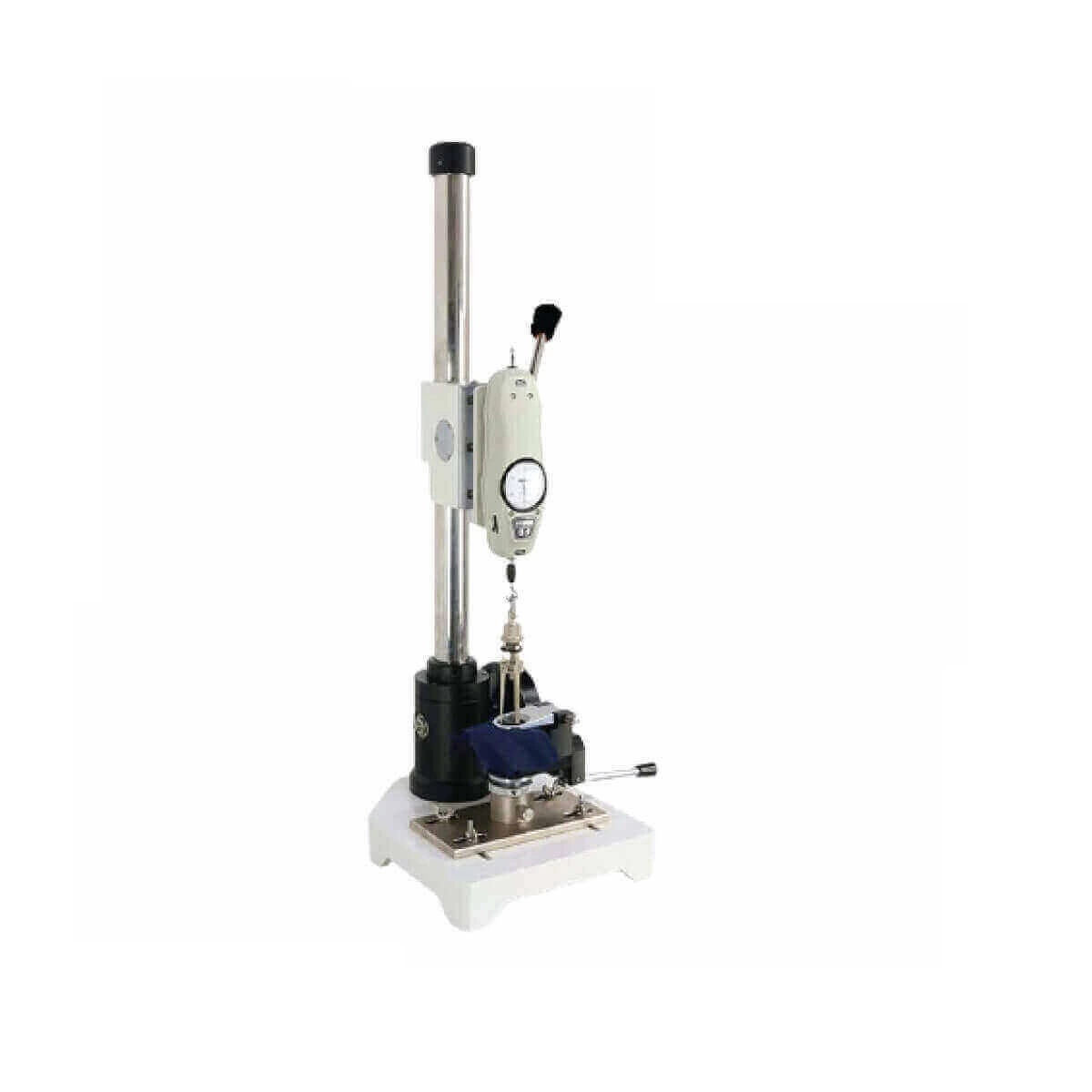

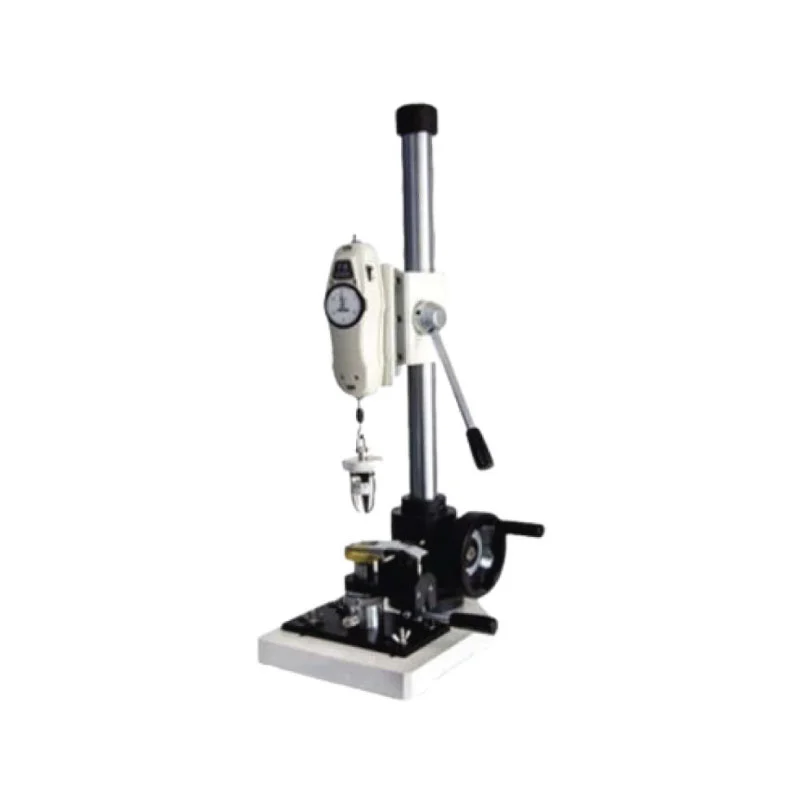

Tony Snap Button Pull Test Machine (HTP-005)
- Meter Load Capacity 30kg / 294.21N.
- Accuracy ±0.1% of full scale.
- Calibration Weight 15 LBS Included.
- Gross Weight 25 kg.
Best Button Pull Test Machine Importer & Supplier in Bangladesh. Button Pull Test Machine is a Textile Lab Machinery. Button Pull Test Machine is a tool for checking button pressure.
Tony Snap Button Pull Test Machine (HTP-005) is a Textile and Garments Lab Machinery. The Tony Snap Button Pull Test Machine is a smart machine that tests the pressure of cloth buttons. it’s widely used in the Textile and Garments sector. it is known as a button strength testing machine. But a reputed garments manufacturer close attention to the Tony Snap Button Pull Test Machine, especially for infants’ clothing. The Tony Snap Button Pull Test Machine (HTP-005) has a measuring meter. it is a manual device that is used to accurately test and compare. it can test the strength and elasticity of the various representative buttons attached to products such as clothing, shirts, denim, etc.
The Tony Snap Button Pull Test Machine (HTP-005) with Include Upper Universal Clamp, Upper Stud Clamp, Three Prong Clamp, Upper Grasp Button Clamp, Lower Fabric Clamp, Upper Long Nose Vise Clamp, IMADA Push-Pull Scale FB 30kg, and 15 LBS Calibration Weight.
FEATURES OF TONY SNAP BUTTON PULL TEST MACHINE (HTP-005)
- Including standard accessories (Seven Pieces).
- Including 15 kg LBS Calibration Weight.
- Including 30 kg/295N Japanese AIGU Measuring Meter.
- Standard 16 CFR 1500.51-53 || ASTM WK4510 PS79-96 || ASTM F963 || EN71-Part1 || M&S P115A (FOR SNAP) || P115 (FOR BUTTON) .
SPECIFICATION OF TONY SNAP BUTTON PULL TEST MACHINE (HTP-005)
| Name | Details |
|---|---|
| Model | HTP-005 |
| Brand | Tony Instrument |
| Origin | Hong Kong |
| Meter Load Capacity | 30kg / 294.21N |
| Accuracy | ±0.1% of full scale |
| Readability | 0.1N |
| Dimensions | 280 x 230 x 735 mm (L x W x H) |
| Calibration Weight | 15 LBS Included |
| Gross Weight | 25 kg |
| Standards | 16 CFR 1500.51-53 || ASTM WK4510 PS79-96 || ASTM F963 || EN71-Part1 || M&S P115A (FOR SNAP) || P115 (FOR BUTTON) |
ACCESSORIES OF TONY SNAP BUTTON PULL TEST MACHINE (HTP-005)
| Accessories Name | Details |
|---|---|
| Upper Universal Clamp | 1 Piece |
| Upper Stud Clamp | 1 Piece |
| Upper Grasp Button Clamp | 1 Piece |
| Three Prong Clamp | 1 Piece |
| Lower Fabric Clamp | 1 Piece |
| Upper Long Nose Vise Clamp | 1 Piece |
| AIGU Push-Pull Scale FB 30kg | 1 Piece |
| Calibration Weight 15 LBS | 1 Piece |
VIDEO REVIEW OF TONY SNAP BUTTON PULL TEST MACHINE (HTP-005)
