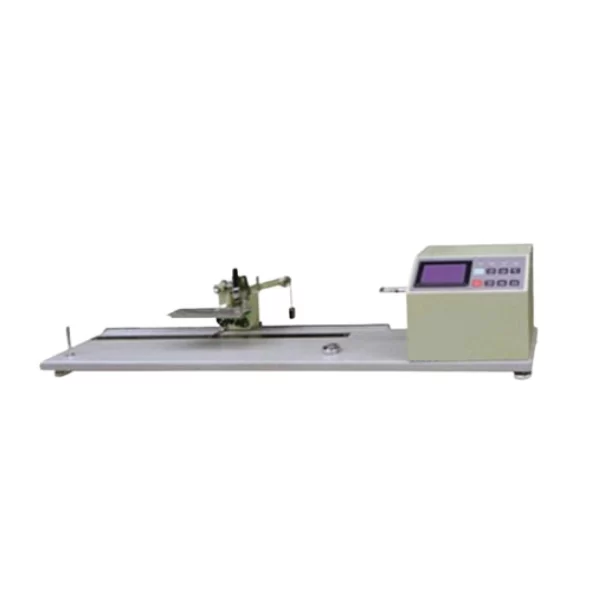

Tony Electronic Twist Tester (HTY-003B)
- Linear 1～499.9 tex.
- Testing Speed 100r/min～2000r/min (continuously adjustable).
- External Dimensions 970x250x310mm.
- Power Source AC220V 50HZ.
Electronic Twist Tester (Twist checking)/Digital Reeling Twist Tester HTY-003B The machine is used for the textile industry to test the yarn twist such as cotton、wool、silk、fibre、chemical fibre etc. Automatically to counting and printing the test data.
FEATURES OF TONY ELECTRONIC TWIST TESTER (HTY-003B)
- Testing Lengh 10~500mm selectable.
- Testing Range (Twist) 1-999.
- Test Cycles 100.
- Linear 1～499.9 tex.
- Testing Speed 100r/min～2000r/min (continuously adjustable).
- External Dimensions 970x250x310mm.
- Power Source AC220V 50HZ.
- Applicable Standards GB/T2543.1 GB/2543.2 ISO 2061 ，BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70.
- Accessories Power Line 1pcs, magnifying glass , Analysis needle.
SPECIFICATION OF TONY ELECTRONIC TWIST TESTER (HTY-003B)
| Name | Details |
| Model | HTY-003B |
| Brand | Tony Instrument |
| Origin | Hong Kong |
| Testing Lengh | 10~500mm selectable |
| Testing Range (Twist) | 1-999 |
| Test Cycles | 100 |
| Linear | 1～499.9 tex |
| Testing Speed | 100r/min～2000r/min (continuously adjustable) |
| External Dimensions | 970x250x310mm |
| Power Source | AC220V 50HZ |
| Applicable Standards | GB/T2543.1 GB/2543.2 ISO 2061 ，BS 2085 ASTM 1422/1423 DIN 53832 IWTO 25-70 |
| Accessories | Power Line 1pcs, magnifying glass , Analysis needle |
PACKING INFORMATION OF TONY ELECTRONIC TWIST TESTER (HTY-003B)
