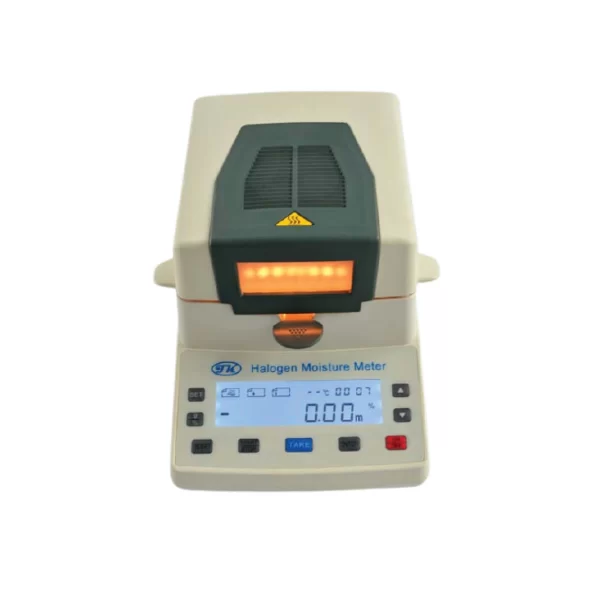

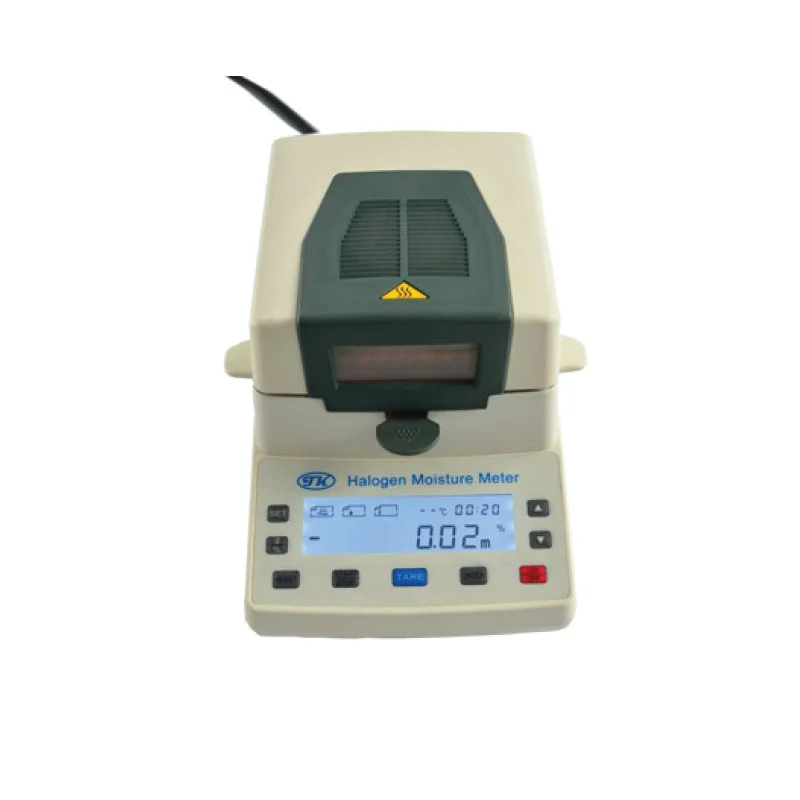

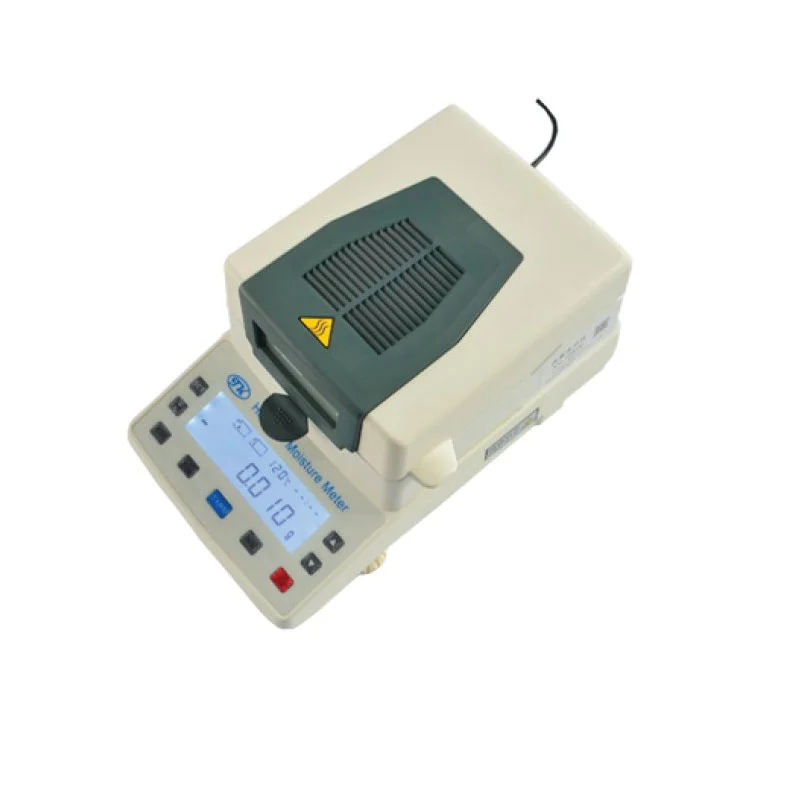

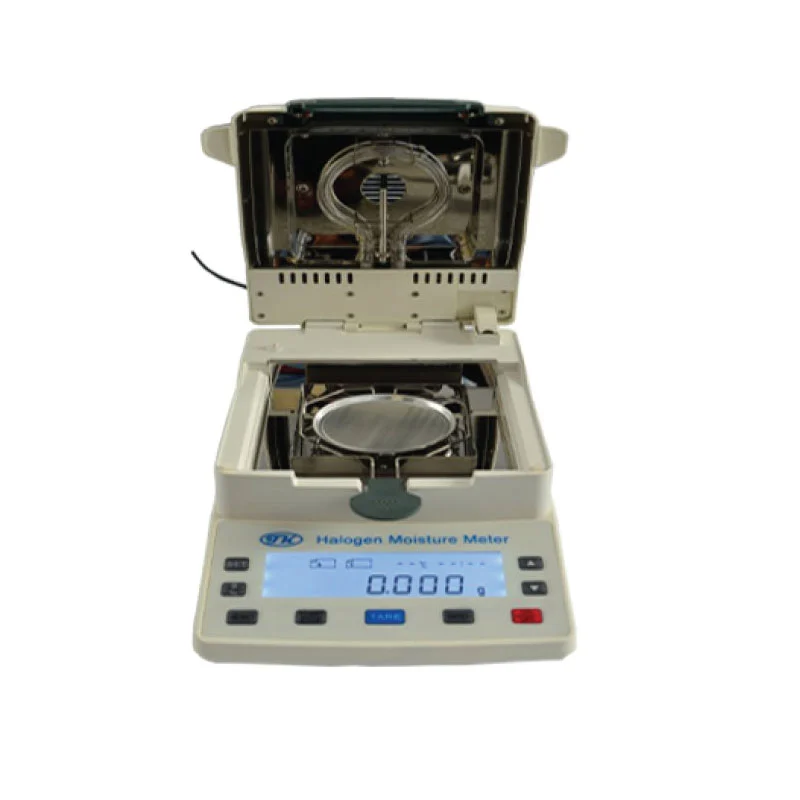

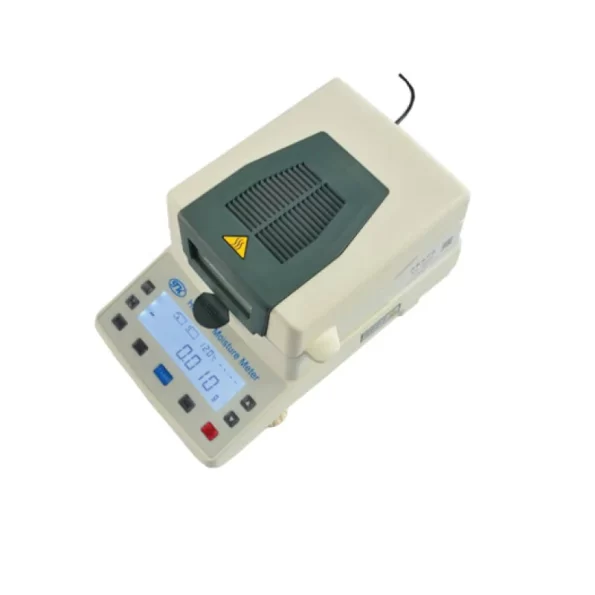

TK 110G Halogen Moisture Meter (XY-100W)
- Capacity 110g/1mg
- Readability 0.001g
- Tray size Φ 90
- Time Setting 1~99 minutes
Medicine materials moisture meter xy-100w used for measuring moisture content of medicine pills, pharmaceutical powder and pharmaceutical filling materials. It applicable of pharmaceutical production, testing and other relevant industry.
Halogen Moisture Goniophotometer is a new type of high-speed infrared moisture test instrument and can be used to measure the moisture of any material. (Except the substances which generate dangerous chemical reaction through heating). The instrument is designed in accordance with the thermogravimetric principle. While the instrument measures the weight of samples, infrared heating units and water evaporation channels dries samples rapidly too. In the drying process, instrument measures continually and displays immediately the lost moisture (%) of the samples in the process. When the drying is completed, the finally measured moisture is locked. Press the display button, data such as the moisture value, the starting value of the weight, the initial value and measuring time can be observed. This instrument is able to communicate with computer. Measuring data of moisture can be printed out though the computer or directly by the printer matched.
FEATURES OF TK 110G HALOGEN MOISTURE METER (XY-100W)
- Capacity 110g/1mg
- Readability 0.001g
- Tray size Φ 90
- Heating mode Halogen Lamp
- Display LCD
- Temperature Setting 40℃~199℃
- Time Setting 1~99 minutes
- Measuring Range 0%~100%
- History store 15 set
- Stop Mode 3
- Heating Mode 3
- Communication RS232
- Printer Optional
SPECIFICATION OF TK 110G HALOGEN MOISTURE METER (XY-100W)
| Name | Details |
| Model | XY-100W |
| Brand | TK |
| Origin | China |
| Capacity | 110g/1mg |
| Readability | 0.001g |
| Tray size | Φ 90 |
| Heating mode | Halogen Lamp |
| Display | LCD |
| Temperature Setting | 40℃~199℃ |
| Time Setting | 1~99 minutes |
| Measuring Range | 0%~100% |
| History store | 15 set |
| Stop Mode | 3 |
| Heating Mode | 3 |
| Communication | RS232 |
| Printer | Optional |
PACKING INFORMATION OF TK 110G HALOGEN MOISTURE METER (XY-100W)
VIDEO REVIEW OF TK 110G HALOGEN MOISTURE METER (XY-100W)
