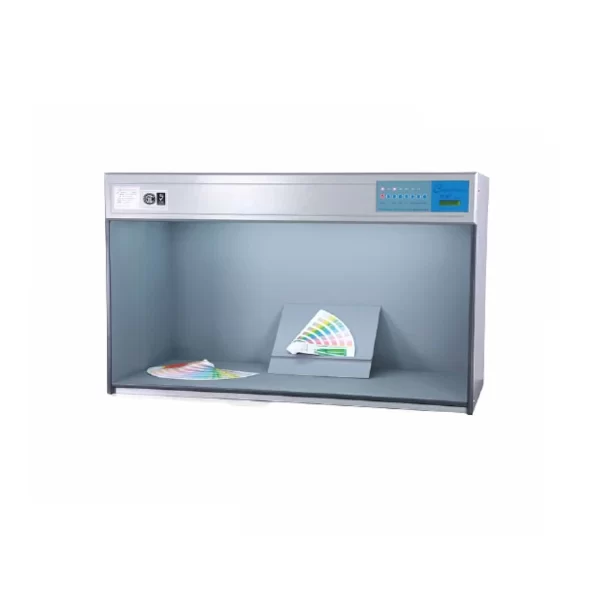

TILO 4 Feet 6 Option Color Assessment Cabinet (P120)
- Size 4 Feet
- Light source 6 option.
- Voltage 220 ~ 240V
- Standards ASTM D1729, ISO3664, DIN, ANSI and BSI
Color Light Box Importer and supplier in Bangladesh. Color Light Box is used to test color for Color Matching. Color Light Box is a Textile Lab Machinery.
TILO Color Assessment Cabinet (P120) is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting. TILO Color Assessment Cabinet (P120) can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
FEATURES OF TILO 4 FEET 6 OPTION COLOR ASSESSMENT CABINET (P120)
- Certified by ASTM D1729, ISO3664, DIN, ANSI and BSI.
- Automatic changeable into another light source by switching.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch; easy to operate each light source.
- No warm-up time; just plug and play.
- The energy-saving device; which generates lower heat & high efficiency.
- The name of the light source can be changed.
SPECIFICATION OF TILO 4 FEET 6 OPTION COLOR ASSESSMENT CABINET (P120)
| Name | Details |
|---|---|
| Model | P120 |
| Brand | TILO |
| Origin | Hong Kong |
| Weight | 60Kg |
| Dimensions (WxDxH) | Outline: (1310 x 600 x 800)mm Interior: (1280 x 590 x 590)mm |
| Standards | ASTM D1729, ISO3664, DIN, ANSI and BSI |
| Light source | Six light source |
| Power Source | Electric. |
| Voltage | 220 ~ 240V |
| Body Material of | Fiber-reinforce |
| Warranty of | One year free service. |
LIGHT SOURCE OF TILO 4 FEET 6 OPTION COLOR ASSESSMENT CABINET (P120)
| Light Source | Color viewing applications / Uses of Light | Color Temp. (K) | Power (W) | Brand Info | Quantity |
|---|---|---|---|---|---|
| D65 | International standard Artificial Daylight / Natural Daylight | 6500 | 18 | PHILIPS; TL-D/18-965 | 2 Pieces |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 | PHILIPS; TL-D/18-840 | 2 Pieces |
| F | “Sun-setting Light Yellow” incandescent light source | 2700 | 40 | PHILIPS | 4 Pieces |
| UV | ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wave length: 365nm | 20 | PHILIPS 18W BLB | 1 Pieces |
| CWF | (Cool White Fluorescent) American Standard | 4150 | 18 | PHILIPS; TL-D/18-640 | 2 Pieces |
| TL83 | Warm White Fluorescent American Standard | 3000 | 18 | PHILIPS; TL-D/18-830 | 2 Pieces |
PACKING INFORMATION OF TILO 4 FEET 6 OPTION COLOR ASSESSMENT CABINET (P120)
VIDEO REVIEW OF TILO 4 FEET 6 OPTION COLOR ASSESSMENT CABINET (P120)
