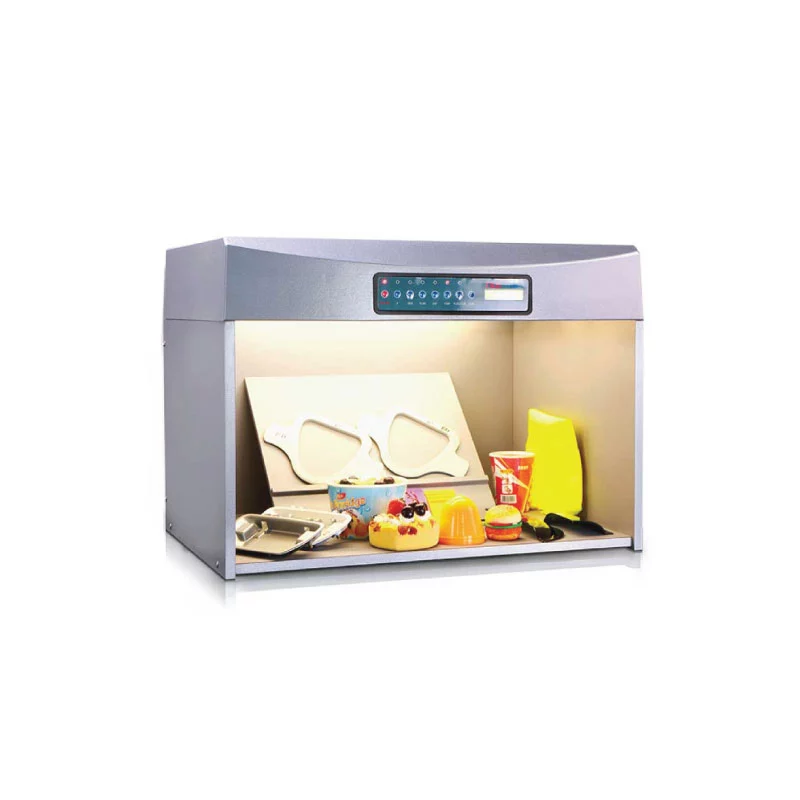

TILO 2 Feet 6 Option Color Assessment Cabinet (P60+)
- Size 2 Feet.
- Light source 6 option.
- Voltage 220 ~ 240V.
- Standards ASTM D1729, ISO3664, DIN, ANSI and BSI.
P60+ color light booth is our updated version, and it is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting. P60+ color light booth can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
FEATURES OF TILO 2 FEET 6 OPTION COLOR ASSESSMENT CABINET (P60+)
- TILO Color light booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
- Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
- Easy to operate by using individual switches for each light source.
- Elapsed time meter for tracking optimal lamp replacement.
- Automatically alternate among light sources.
- No warm-up time or flickering which insures quick and reliable color judgment.
- Economic power consumption and low heat generation for high light efficiency.
- The dimension can be made by customized.
SPECIFICATION OF TILO 2 FEET 6 OPTION COLOR ASSESSMENT CABINET (P60+)
| Name | Details |
|---|---|
| Model | P60+ |
| Brand | TILO |
| Origin | Hong Kong |
| Weight | 25Kg |
| Dimensions (WxDxH) | (WxDxH) 695x552x502mm |
| Standards | ASTM D1729, ISO3664, DIN, ANSI and BSI. |
| Light source | Six Light source. |
| Power Source | Electric. |
| Voltage | 220 ~ 240V |
| Material | Fiber-reinforce |
| Warranty | One year free service |
LIGHT SOURCES OF TILO 2 FEET 6 OPTION COLOR ASSESSMENT CABINET (P60+)
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
| D65 | International Standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
| F/A | “Sun-setting Light Yellow” incandescent light source (imitation of sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wave length:365nm | 20 |
| TL83 | Warm White Fluorescent American Standard | 3000 | 18 |
PACKING INFORMATION OF TILO 2 FEET 6 OPTION COLOR ASSESSMENT CABINET (P60+)
VIDEO REVIEW OF TILO 2 FEET 6 OPTION COLOR ASSESSMENT CABINET (P60+)
