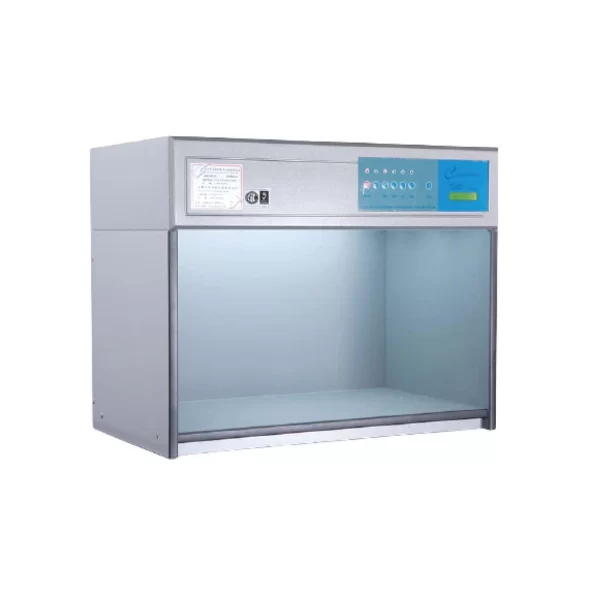

TILO 2 Feet 5 Option Light Box Cabinet (P60-5)
- Size 2 Feet
- Light source 5 option.
- Voltage 220 ~ 240V
- Standards ASTM D1729, ISO3664, DIN, ANSI and BSI
Color Matching Cabinet Importer and supplier in Bangladesh. Color Matching Cabinet is used to test color for Color Matching. Color Matching Cabinet is a Textile Lab Machinery.
TILO 2 Feet 5 Option Light Box Cabinet (P60-5) is equipped with 5 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting. TILO 2 Feet 5 Option Light Box Cabinet (P60-5) can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
FEATURES OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
- Certified by ASTM D1729, ISO3664, DIN, ANSI and BSI.
- Automatic changeable into another light source by switching.
- Usage time display, name of lamp, total number of switches for each.
- Violated time sensor for tracking lamp service or replacement.
- Large display & individual switch, easy to operate each light source.
- No warm-up time, just plug and play.
- The energy-saving device which generates lower heat & high efficiency.
- The name of the light source can be changed.
SPECIFICATION OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
| Name | Details |
|---|---|
| Model | P60(5) |
| Brand | TILO |
| Origin | Hong Kong |
| Weight | 23Kg |
| Dimensions (WxDxH) | (710 x 405 x 570)mm |
| Standards | ASTM D1729, ISO3664, DIN, ANSI and BSI |
| Light source | Five light source. |
| Power Source | Electric. |
| Voltage | 220 ~ 240V |
| Body Material | Fiber-reinforce |
| Warranty | One year free service |
LIGHT SOURCE OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
| Light Source | Color viewing applications / Uses of Light | Color Temp. (K) | Power (W) | Brand Info | Quantity |
|---|---|---|---|---|---|
| D65 | International standard Artificial Daylight / Natural Daylight | 6500 | 18 | PHILIPS; TL-D/18-965 | 2 Pieces |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 | PHILIPS; TL-D/18-840 | 2 Pieces |
| F | “Sun-setting Light Yellow” incandescent light source | 2700 | 40 | PHILIPS | 4 Pieces |
| UV | ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wave length: 365nm | 20 | PHILIPS 18W BLB | 1 Pieces |
| CWF | (Cool White Fluorescent) American Standard | 4150 | 18 | PHILIPS; TL-D/18-640 | 2 Pieces |
PACKING INFORMATION OF TILO 2 FEET 5 OPTION LIGHT BOX CABINET (P60-5)
