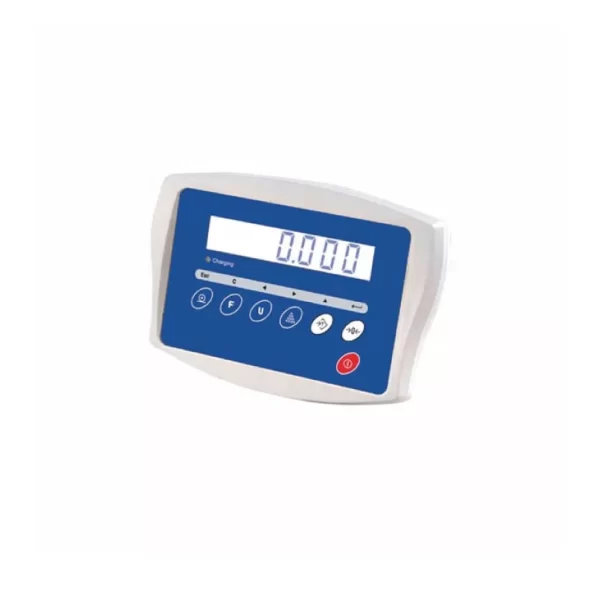

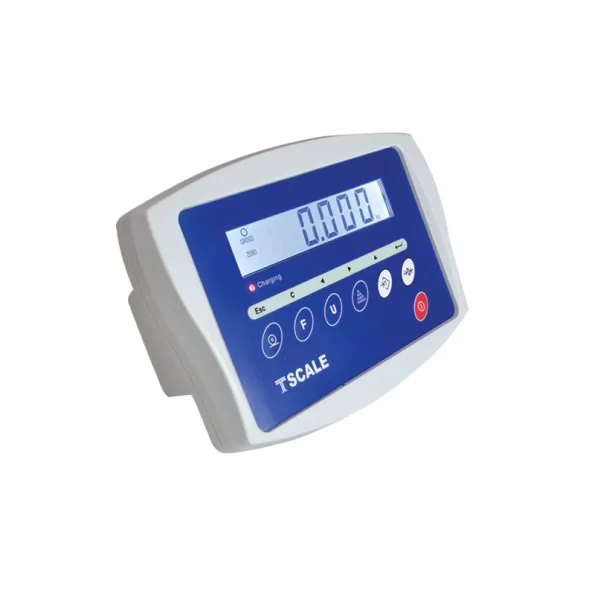

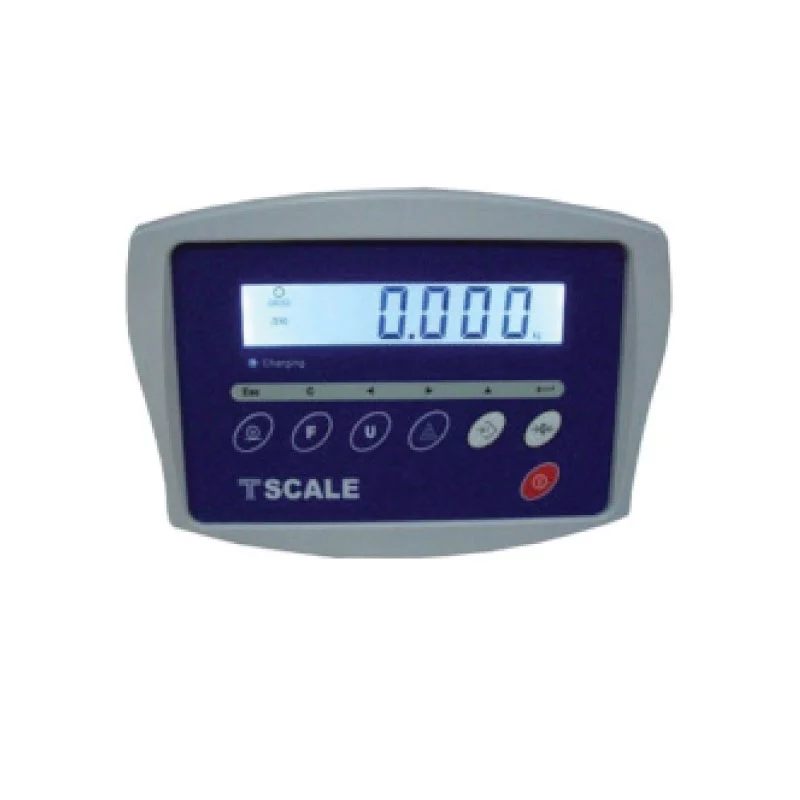

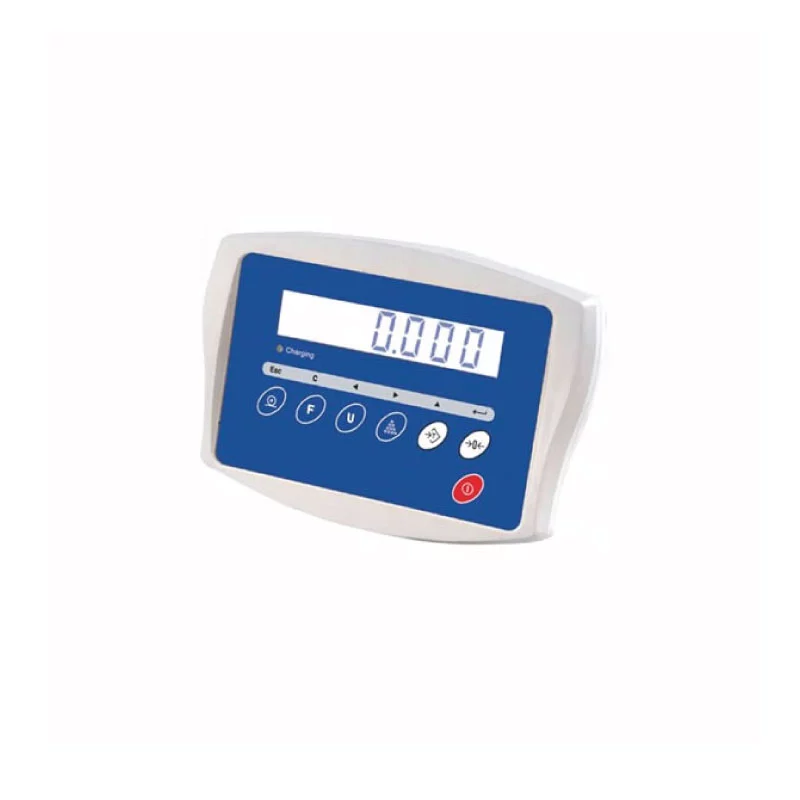

T-SCALE KW Weighing Indicator
- Large LCD display with LED backlight display
- Rechargeable battery operation, up to 70 hours of continuous use
- Programmable to meet your needs
- High resolution RS232 interface (optional)
KW indicator is an economical general-purpose indicator used mainly for industrial purposes in a variety of weighing applications. It comes with an internal resolution of 1/60,000 and select-able graduation sizes. Its application programs include; Check weighing simple parts counting, accumulation, auto print unit conversion. The battery of the KW indicator can provide up to 70 hours of continuous use and RS232 optional. The indicator has OIML approval.
FEATURES OF T-SCALE KW WEIGHING INDICATOR
- Large LCD display with LED backlight display
- Rechargeable battery operation, up to 70 hours of continuous use
- Programmable to meet your needs
- High resolution RS232 interface (optional)
SPECIFICATION OF T-SCALE KW WEIGHING INDICATOR
| Name | Details |
| Model | KM |
| Brand | T-SCALE |
| Origin | Taiwan |
| Display | 24mm digit LCD display with white LED backlight |
| Keyboard | 7keys(Membrane keyboard) |
| Housing | ABS plastic indicator |
| ADC | Sigma delta |
| ADC update | 1/10 second |
| Operate Temp | – 10°C- +40°C |
| Power | AC adapter (12V1500mA),rechargeable battery (6V/4Ah) |
| Gross Weight | 2.5kg |
| Packing | Master carton packing, dimension 0.017m³ Master carton 4 in 1 packing, dimension 0.084m³ |
| Application | Applicable in weighing products in different areas like in industries factories,etc. |
| Approval | CE, OIML |
PACKING INFORMATION OF T-SCALE KW WEIGHING INDICATOR
VIDEO REVIEW OF T-SCALE KW WEIGHING INDICATOR
