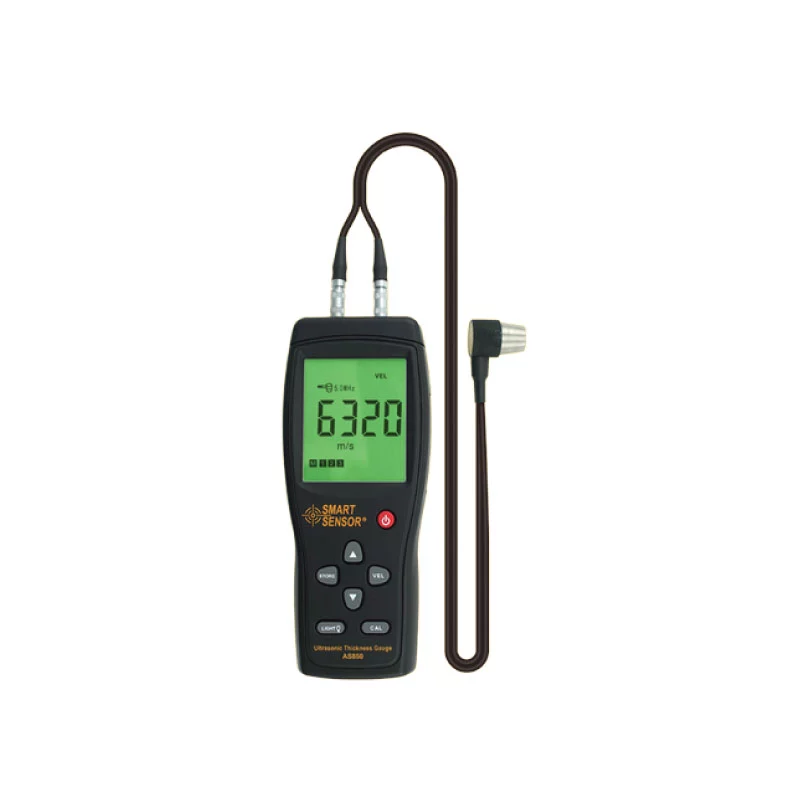

SMART SENSOR Ultrasonic Thickness Gauge (AS850)
- Accuracy ±(1%H+0.1)mm.
- Sound Velocity Range 1000~9999m/s.
- Operation Temperature 0°C~40°C.
- Measuring Range 1.2~225mm.
The usage of SMART SENSOR Ultrasonic Thickness Gauge (AS850) gauge for non-destructive testing to check material properties such as thickness measurement, is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications.
FEATURES OF SMART SENSOR ULTRASONIC THICKNESS GAUGE (AS850)
- Accuracy ±(1%H+0.1)mm.
- Resolution 0.1mm.
- Sound Velocity Range 1000~9999m/s.
- Frequency 5MHz.
- Operation Temperature 0°C~40°C.
- Measuring Range 1.2~225mm.
- Minimum limit for tube measuring Ф20*3mm(steel).
SPECIFICATION OF SMART SENSOR ULTRASONIC THICKNESS GAUGE (AS850)
| Name | Details |
|---|---|
| Model | AS850 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | 1.2~225mm |
| Accuracy | ±(1%H+0.1)mm |
| Resolution | 0.1mm |
| Sound Velocity Range | 1000~9999m/s |
| Frequency | 5MHz |
| Operation Temperature | 0°C~40°C |
| Minimum limit for Tube measuring | Ф20*3mm(steel) |
| Auto Zero Calibration | √ |
| Auto linear compensation | √ |
| Coupling Indicator | √ |
| Metric / Imperial Switchable | — |
| Battery Indication | √ |
| Auto Power Off | √ |
PACKING INFORMATION OF SMART SENSOR ULTRASONIC THICKNESS GAUGE (AS850)
| Name | Details |
|---|---|
| Power | 9V battery |
| Product Net Weight | 210g |
| Product Size | 150*80.5*34mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 10 |
| Standard Carton Size | 39*32*44cm |
| Standard Carton Gross Weight | 11.0KG |
VIDEO REVIEW OF SMART SENSOR ULTRASONIC THICKNESS GAUGE (AS850)
