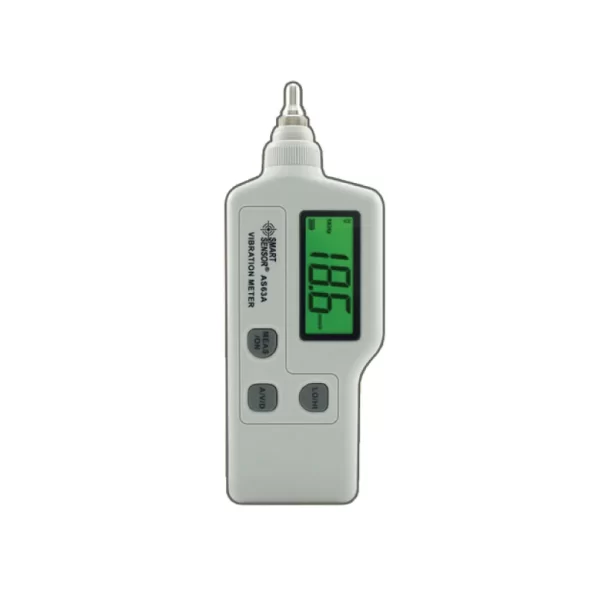

SMART SENSOR Portable Vibration Meter (AS63A)
- Accuracy ±5%H ±2 digits.
- Acceleration Range 0.1~199.9m/s2.
- Velocity Range 0.1~199.9m/s .
- Displacement Range 0.001~1.999mm.
SMART SENSOR Portable Vibration Meter (AS63A) (also called vibration severity) uses Piezoelectric Acceleration Transducer to transfer the vibration signal into electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
FEATURES OF SMART SENSOR PORTABLE VIBRATION METER (AS63A)
- Accuracy ±5%H ±2 digits.
- Acceleration Range 0.1~199.9m/s2.
- Velocity Range 0.1~199.9m/s .
- Displacement Range 0.001~1.999mm.
- Velocity Frequency Range 10Hz~1KHz.
- Displacement Frequency Range 10Hz~1KHz.
- Signal Output AC output 2V peak ( Display full scale ).
- Acceleration Frequency Range 10Hz~1KHz (LO) & 1KHz~15KHz (HI).
SPECIFICATION OF SMART SENSOR PORTABLE VIBRATION METER (AS63A)
| Name | Details |
|---|---|
| Model | AS8700A |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Principle | Piezoelectric Ceramic Accelerometer (shear-type) |
| Acceleration Range | 0.1~199.9m/s2 |
| Velocity Range | 0.1~199.9m/s |
| Displacement Range | 0.001~1.999mm |
| Acceleration Frequency Range | 10Hz~1KHz (LO) 1KHz~15KHz (HI) |
| Velocity Frequency Range | 10Hz~1KHz |
| Displacement Frequency Range | 10Hz~1KHz |
| Accuracy | ±5%H ±2 digits |
| Signal Output | AC output 2V peak ( Display full scale ) |
| Max Hold Function | —– |
| Temperature Measurement | —– |
| ℃/℉Selection | —– |
PACKING INFORMATION OF SMART SENSOR PORTABLE VIBRATION METER (AS63A)
| Name | Details |
|---|---|
| Power | 9V Battery |
| Product Net Weight | 147g |
| Product Size | 183*67*30mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 10PCS |
| Standard Carton Size | 45*32*55cm |
| Standard Carton Gross Weight | 14.17kg |
VIDEO REVIEW OF SMART SENSOR PORTABLE VIBRATION METER (AS63A)
