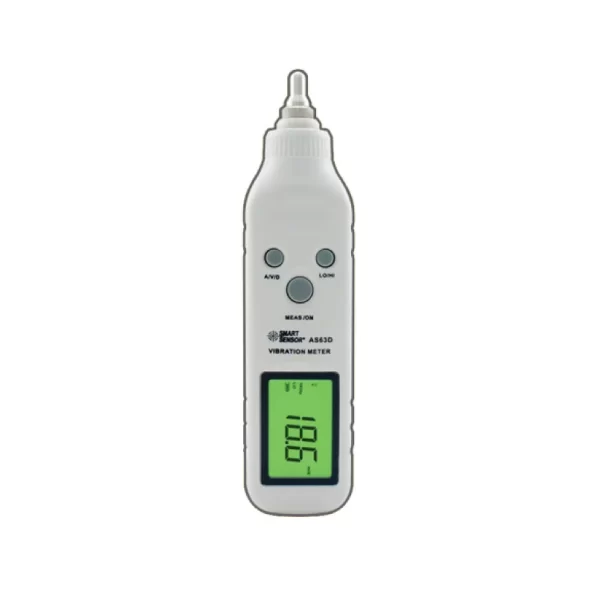

SMART SENSOR Pen Type Vibration Meter (AS63D)

Accuracy ±10%H ±2 digits.
Acceleration Range 0.1~199.9m/s2.
Velocity Range 0.1~199.9m/s .
Displacement Range 0.001~1.999mm.

SMART SENSOR Pen Type Vibration Meter (AS63D) (also called vibration severity) uses Piezoelectric Acceleration Transducer to transfer the vibration signal into electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

FEATURES OF SMART SENSOR PEN TYPE VIBRATION METER (AS63D)

Accuracy ±10%H ±2 digits.
Acceleration Range 0.1~199.9m/s2.
Velocity Range 0.1~199.9m/s .
Displacement Range 0.001~1.999mm.
Velocity Frequency Range 10Hz~1KHz.
Displacement Frequency Range 10Hz~1KHz.
Acceleration Frequency Range 10Hz~1KHz (LO) & 1KHz~15KHz (HI).
Measuring Principle Piezoelectric Ceramic Accelerometer (shear-type).

SPECIFICATION OF SMART SENSOR PEN TYPE VIBRATION METER (AS63D)

Name	Details
Model	AS63D
Brand	SMART SENSOR
Origin	China
Measuring Principle	Piezoelectric Ceramic Accelerometer(shear-type)
Acceleration Range	0.1~199.9m/s2
Velocity Range	0.1~199.9m/s
Displacement Range	0.001~1.999mm
Acceleration Frequency Range	10Hz~1KHz (LO) 1KHz~15KHz (HI)
Velocity Frequency Range	10Hz~1KHz
Displacement Frequency Range	10Hz~1KHz
Accuracy	±10%H ±2 digits
Signal Output	——
Max Hold Function	——
Temperature Measurement	——
℃/℉Selection	——

PACKING INFORMATION OF SMART SENSOR PEN TYPE VIBRATION METER (AS63D)

Name	Details
Power	*21.5V AA Battery**
Product Net Weight	115g
Product Size	*18042.530mm*
Packing Style	Gift Box
Standard Quantity Per Carton	20PCS
Standard Carton Size	*453255cm*
Standard Carton Gross Weight	13.08KG
