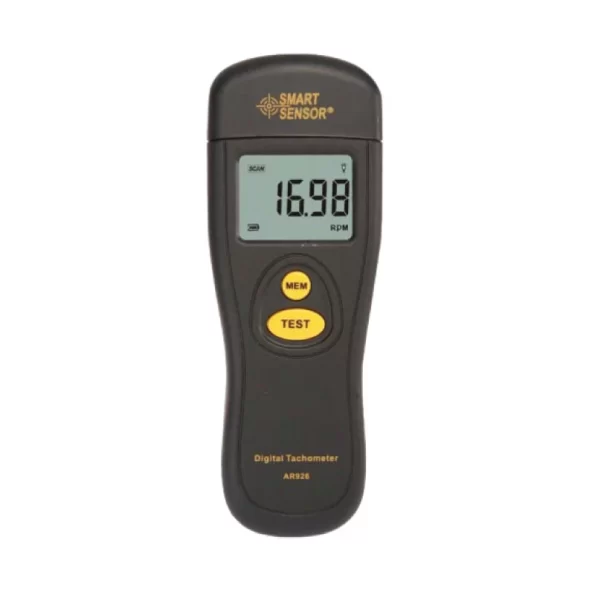

SMART SENSOR Non-Contact Digital Tachometer (AR926)
- Accuracy ±(0.05%+1 digits ).
- Measuring Range 2.5~99999RPM.
- Sampling Time 0.8 sec(Over 60RPM).
- Measuring Distance ±(0.05%+1 digits ).
SMART SENSOR Non-Contact Digital Tachometer (AR926) (RPM gauge) is an instrument measuring the rotation speed of a shaft or disk, as in a motor or other machine. The device usually displays the revolutions per minute (RPM) on a digital displays. Applying the MCU, photoelectricity and laser semiconductor technology, perform measurement of rotating speed Contact and Non Contact.
FEATURES OF SMART SENSOR NON-CONTACT DIGITAL TACHOMETER (AR926)
- Accuracy ±(0.05%+1 digits ).
- Measuring Range 2.5~99999RPM.
- Sampling Time 0.8 sec(Over 60RPM).
- Measuring Distance ±(0.05%+1 digits ).
- Linear Rolling Speed Resolution 50mm~500mm.
- Rotating Speed Resolution 0.1RPM (2.5~999.9RPM) 1RPM (Over 1000RPM).
SPECIFICATION OF SMART SENSOR NON-CONTACT DIGITAL TACHOMETER (AR926)
| Name | Details |
|---|---|
| Model | AR926 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | 2.5~99999RPM |
| Rotating Speed Resolution | 0.1RPM (2.5~999.9RPM) 1RPM (Over 1000RPM) |
| Linear Rolling Speed Resolution | 50mm~500mm |
| Measuring Distance | ±(0.05%+1 digits ) |
| Accuracy | ±(0.05%+1 digits ) |
| Sampling Time | 0.8 sec(Over 60RPM) |
| Max / Min Measuring | V |
| Data Storage | V |
| Memories Clear | V |
| Range Selection | Auto |
PACKING INFORMATION OF SMART SENSOR NON-CONTACT DIGITAL TACHOMETER (AR926)
| Name | Details |
|---|---|
| Power | 3*1.5V AAA Battery (not include) |
| Product Net Weight | 91g |
| Product Size | 150*56*31mm |
| Packing Style | Gift Box |
VIDEO REVIEW OF SMART SENSOR NON-CONTACT DIGITAL TACHOMETER (AR926)
