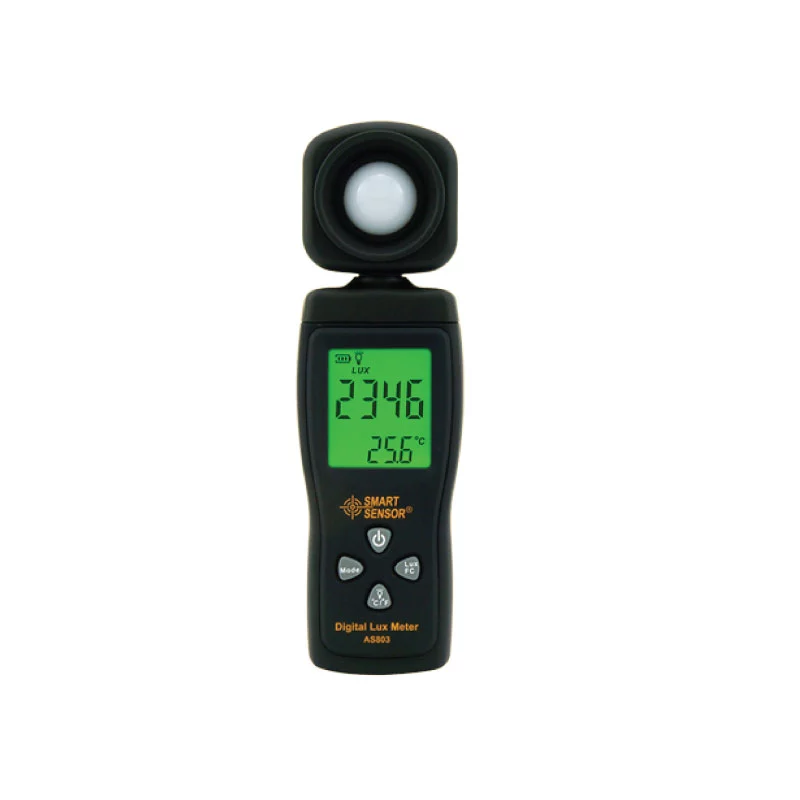

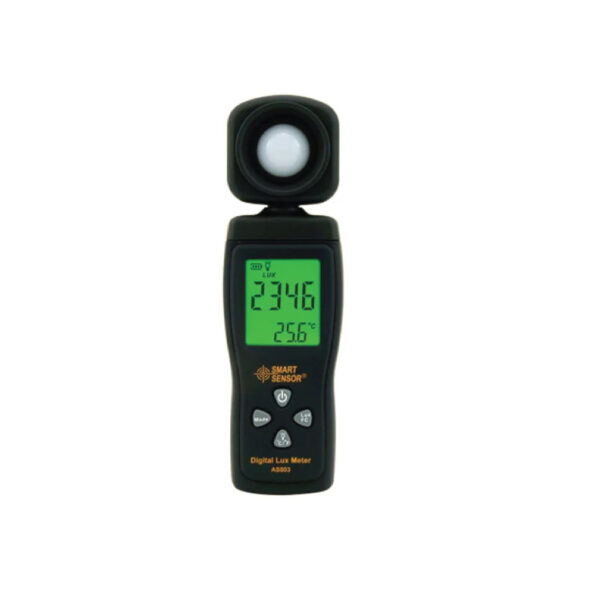

SMART SENSOR Lux Meter (AS803)
- Accuracy ±5%rdg ±10.
- Sampling Frequency 2 time/sec .
- Operation Condition 0~40℃.
- Measuring Range 1~200.000lux .
SMART SENSOR Lux Meter (AS803) is widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control. Lux Meter is a Device for measuring brightness, specifically, the intensity with which the brightness appears to the human eye. Lux Meter works by using a photocell to capture light. The meter then converts this light to an electrical current, and measuring this current allows the device to calculate the lux value of the light it captured.
FEATURES OF SMART SENSOR LUX METER (AS803)
- Accuracy ±5%rdg ±10.
- Unit Selection lux / FC.
- Measure Selection Auto.
- Repeatability ±2% .
- Sampling Frequency 2 time/sec .
- Resolution 1lux 0.1°C.
- Operation Condition 0~40℃.
- Measuring Range 1~200.000lux .
SPECIFICATION OF SMART SENSOR LUX METER (AS803)
| Name | Details |
|---|---|
| Model | AS803 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | 1~200.000lux |
| Accuracy | ±5%rdg ±10 |
| Unit Selection | lux / FC |
| Measure Selection | Auto |
| Repeatability | ±2% |
| Sampling Frequency | 2 time/sec |
| Resolution | 1lux 0.1°C |
| Data Hold Function | √ |
| Backlight Display | √ |
| Max & Min Measuring | √ |
| Auto Power Off | √ |
| Temp. Measuring | √ |
| Operation Condition | 0~40℃ |

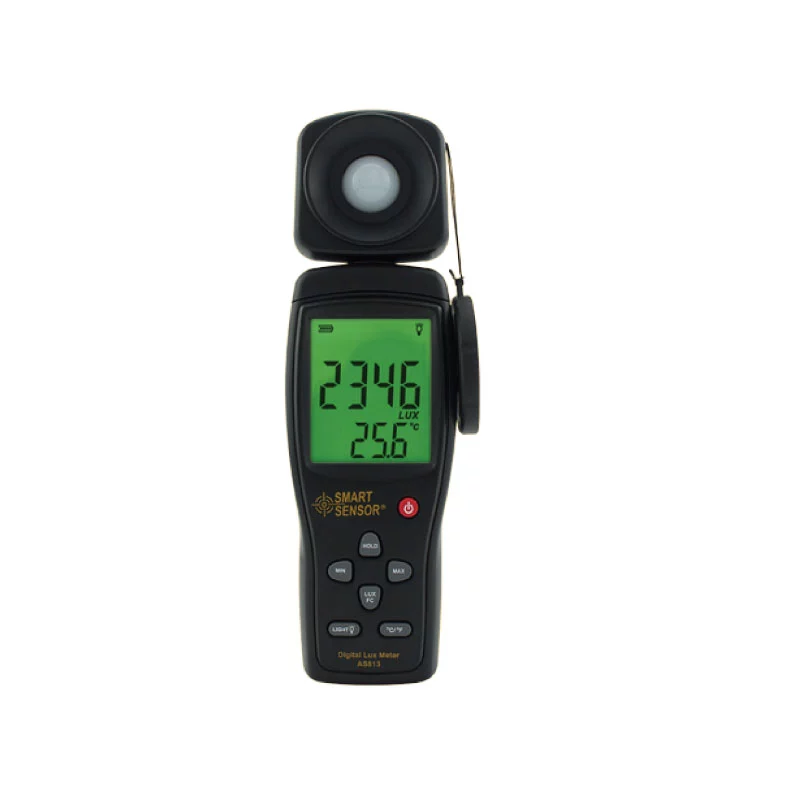

PACKING INFORMATION OF SMART SENSOR LUX METER (AS813)
| Name | Details |
|---|---|
| Power | 3*1.5V AAA battery |
| Product Net Weight | 80g |
| Product Size | 162*47*25mm |
| Packing Style | Blister |
| Standard Quantity Per Carton | 60pcs |
| Standard Carton Size | 50*24*46cm |
| Standard Carton Gross Weight | 9.39kg |
VIDEO REVIEW OF SMART SENSOR LUX METER (AS813)
