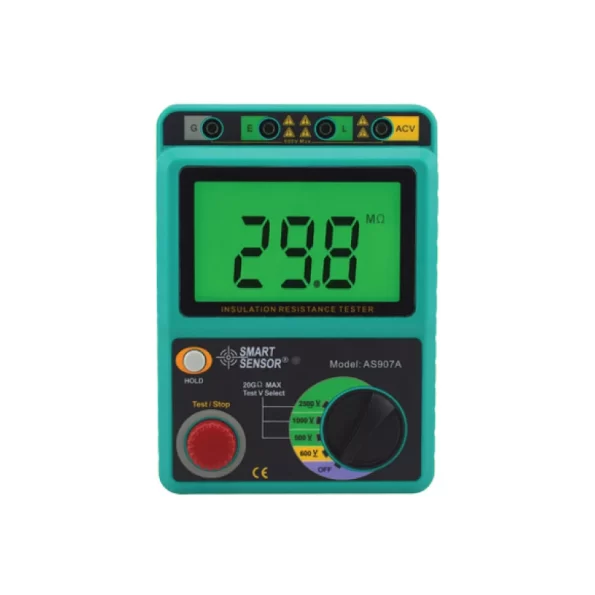

SMART SENSOR Insulation Resistance Tester (AS907A)
- Testing Range 10KΩ~20GΩ
- ACV Accuracy ( 2%dgt + 15rdg )
- ACV Frequency 50/60Hz
- Operating Condition 0~40℃, < 80%RH
SMART SENSOR Insulation Resistance Tester (AS907A) is High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.
FEATURES OF SMART SENSOR INSULATION RESISTANCE TESTER (AS907A)
- Rated Voltage n500V / 1000V / 2500V
- Testing Range 10KΩ~20GΩ
- ACV Range ≤600V
- ACV Accuracy ( 2%dgt + 15rdg )
- ACV Frequency 50/60Hz
- Operating Condition 0~40℃, < 80%RH
- Storing Condition -10~50℃, < 85%RH
- Open Circuit Voltage 90%~110% of rated voltage
- Resolution 0.001MΩ~200MΩ( 3%dgt + 5rdg ) & 200MΩ~10GΩ( 5%dgt + 5rdg ) & 10GΩ~20GΩ( 10%dgt + 5rdg )
SPECIFICATION OF SMART SENSOR INSULATION RESISTANCE TESTER (AS907A)
| Name | Details |
|---|---|
| Model | AS907A |
| Brand | SMART SENSOR |
| Origin | China |
| Rated Voltage | 500V / 1000V / 2500V |
| Open Circuit Voltage | 90%~110% of rated voltage |
| Testing Range | 10KΩ~20GΩ |
| Resolution | 0.001MΩ~200MΩ( 3%dgt + 5rdg ) 200MΩ~10GΩ( 5%dgt + 5rdg ) 10GΩ~20GΩ( 10%dgt + 5rdg) |
| Auto Discharge Function | √ |
| ACV Range | ≤600V |
| ACV Accuracy | ( 2%dgt + 15rdg ) |
| ACV Frequency | 50/60Hz |
| Battery Indication | √ |
| Operating Condition | 0~40℃, <80%RH |
| Storing Condition | 10~50℃, <85%RH |
PACKING INFORMATION OF SMART SENSOR INSULATION RESISTANCE TESTER (AS907A)
| Name | Details |
|---|---|
| Power | 6*1.5AA Battery |
| Product Net Weight | 410g |
| Product Size | 173*122*66mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 12 |
| Standard Carton Size | 52*33.5*47cm |
| Standard Carton Gross Weight | 17.08KG |
