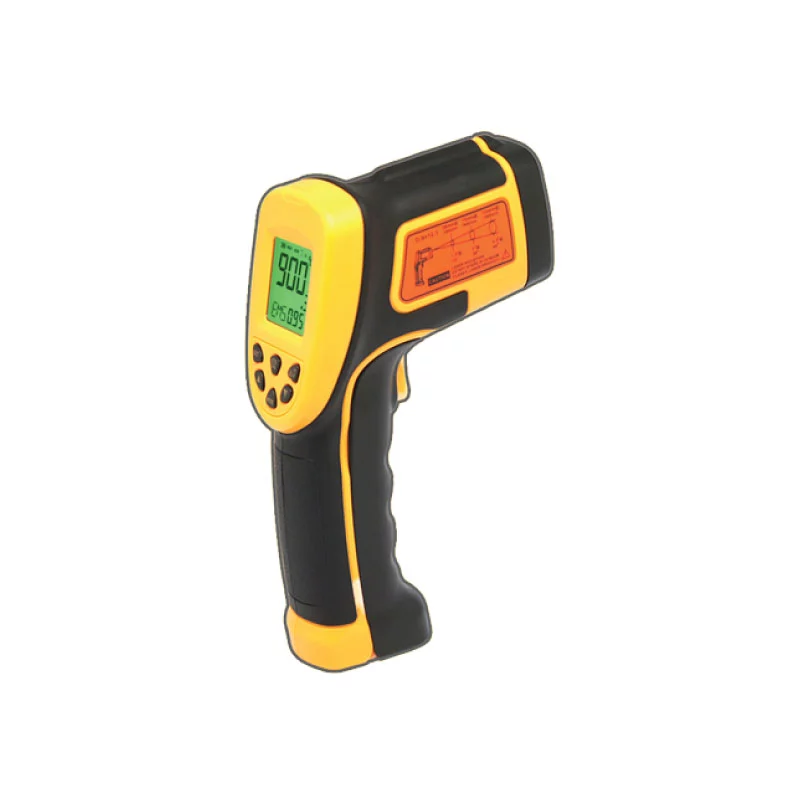

SMART SENSOR Infrared Thermometer (AS862A)
- Thermometer Accuracy ±2%or±2℃
- Thermometer Emissivity 0.10~1.00 adjustable
- Thermometer Resolution 0.1℃or 0.1℉(<1000℃)
- Thermometer Response Time (8-14)um & 500ms
In the SMART SENSOR Infrared Thermometer (AS862A) most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation. Infrared Thermometers allow users to measure temperature in applications where conventional sensors cannot be employed. Specifically, in cases dealing with moving objects ( i.e., rollers, moving machinery, or a conveyor belt), or where non-contact measurements are required because of contamination or hazardous reasons (such as high voltage), where distances are too great, or where the temperatures to be measured are too high for thermocouples or other contact sensors.
FEATURES OF SMART SENSOR INFRARED THERMOMETER (AS862A)
- Accuracy ±2%or±2℃.
- Distance Spot Ratio 12:1.
- Emissivity 0.10~1.00 adjustable.
- Resolution 0.1℃or 0.1℉(<1000℃).
- Repeatability ±1%or±1℃.
- Response Time (8-14)um & 500ms.
- Temperature Range -50℃~900℃(-58℉~1652℉).
SPECIFICATION OF SMART SENSOR INFRARED THERMOMETER (AS862A)
| Name | Details |
|---|---|
| Model | AS862A |
| Brand | SMART SENSOR |
| Origin | China |
| Temperature Range | -50℃~900℃(-58℉~1652℉) |
| Accuracy | ±2%or±2℃ |
| Distance Spot Ratio | 12:1 |
| Emissivity | 0.10~1.00 adjustable |
| Resolution | 0.1℃or 0.1℉(<1000℃) |
| Wavelength & Response Time | (8-14)um & 500ms |
| Repeatability | ±1%or±1℃ |
| ℃/℉Selection | √ |
| Data Hold Function | √ |
| Laser Target Pointer | √ |
| Backlight Display | √ |
| Auto Power Off | √ |
PACKING INFORMATION OF SMART SENSOR INFRARED THERMOMETER (AS862A)
| Name | Details |
|---|---|
| Power | 9V battery |
| Product Net Weight | 170g |
| Product Size | 175*100*49mm |
| Packing Style | Gift box |
| Standard Quantity Per Carton | 24 |
| Standard Carton Size | 46*45.5*55cm |
| Standard Carton Gross Weight | 19.5KG |
VIDEO REVIEW OF SMART SENSOR INFRARED THERMOMETER (AS862A)
Related Products
SMART SENSOR Lux Meter (AS823)
- Accuracy ±5%rdg ±10.
- Sampling Frequency 2 time/sec.
- Operation Condition -10~50℃.
- Measuring Range 1~200.000lux.

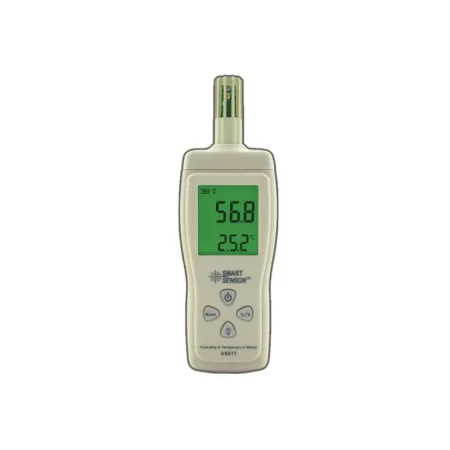

SMART SENSOR Humidity Temperature Meter (AS817)
- Accuracy of Temperature ±1.5℃.
- Sampling Frequency 2.5 times / sec.
- Temperature Measuring Range -10℃~50℃.
- Humidity Measuring Range 5%RH~98%RH.

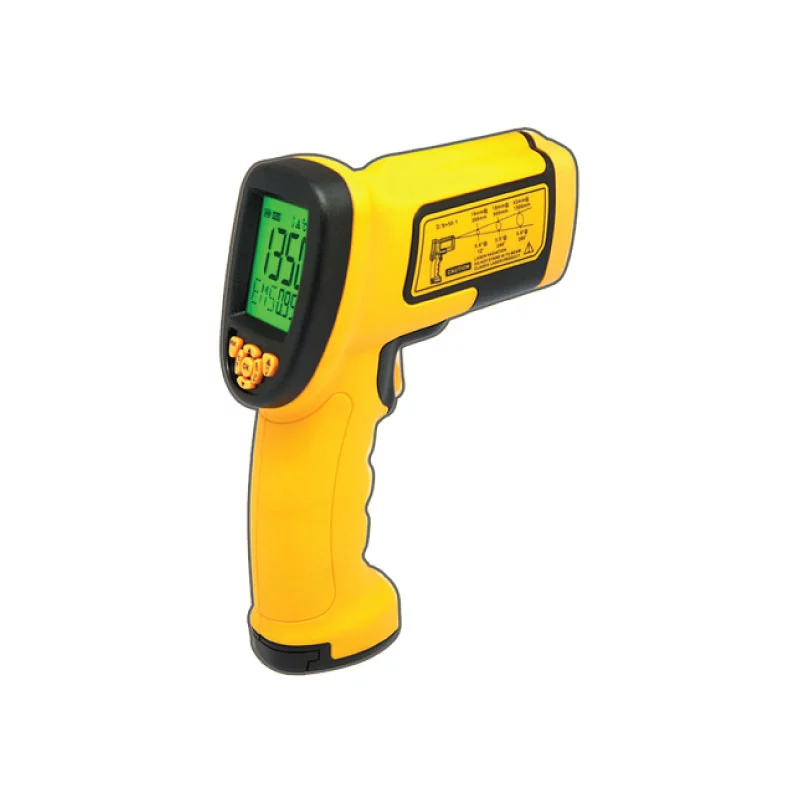

SMART SENSOR Infrared Thermometer (AS872D)
- Thermometer Accuracy ±2%or2℃.
- Thermometer Distance Spot Ratio 50:1 .
- Thermometer Emissivity 0.10~1.00 adjustable.
- Thermometer Response Time (8-14)um & 500ms.

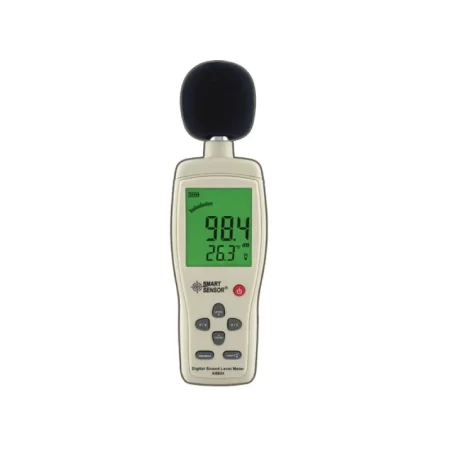

SMART SENSOR Sound Level Meter (AS824)
- Frequency Range 31.5HZ~8.5KHZ.
- Digit & Resolution 4 digits & 0.1dB.
- Sampling Frequency 2 times / sec.
- Measuring Leve 30~130 dBA and 35~130 dBC.
Mileseey 100M Laser Distance Meter (S2-100)
- Measuring Range 328ft /100m.
- Distance Measurement Precision ±1/16.
- Units m / in / ft / ft + in.
- Max storage 20 units.
SMART SENSOR Sound Level Meter (AS804)
- Measuring Leve 30~130 dBA
- Frequency Range 31.5HZ~8.5KHZ.
- Digit & Resolution 4 digits & 0.1dB.
- Sampling Frequency 2 times / sec.

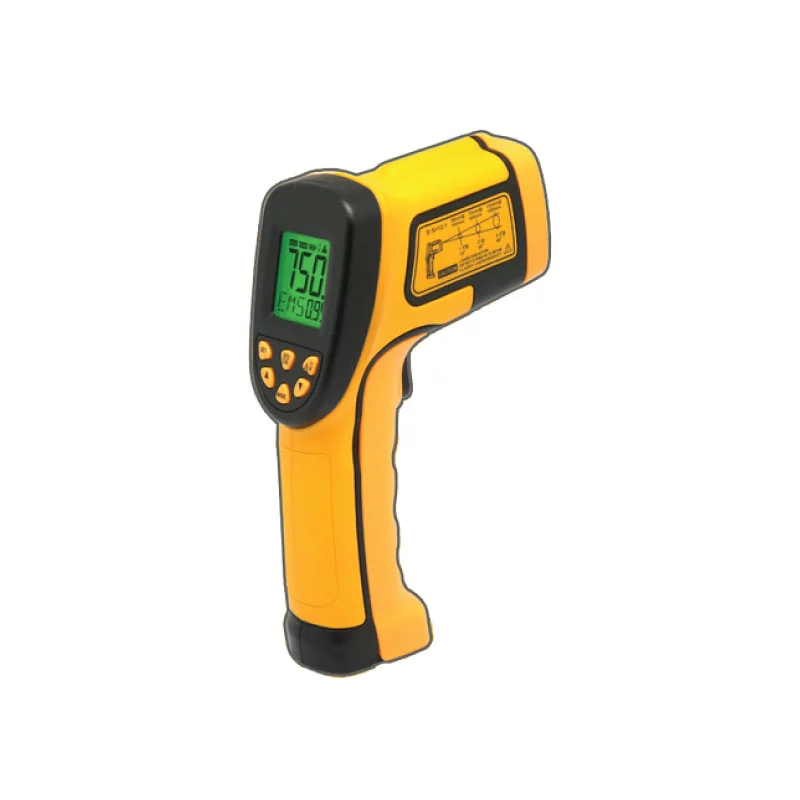

SMART SENSOR Infrared Thermometer (AS852B)
- Thermometer Accuracy ±2%or±2℃.
- Thermometer Emissivity 0.10~1.00 adjustable.
- Thermometer Resolution 0.1℃or 0.1℉(<1000℃).
- Thermometer Response Time (8-14)um & 500ms.
SMART SENSOR Infrared Thermometer (AS892)
- Thermometer Accuracy ±2%or2℃.
- Thermometer Distance Spot Ratio 80:1.
- Thermometer Response Time (900-1700)nm&500ms .
- Thermometer Measuring Range 200℃~2200℃.

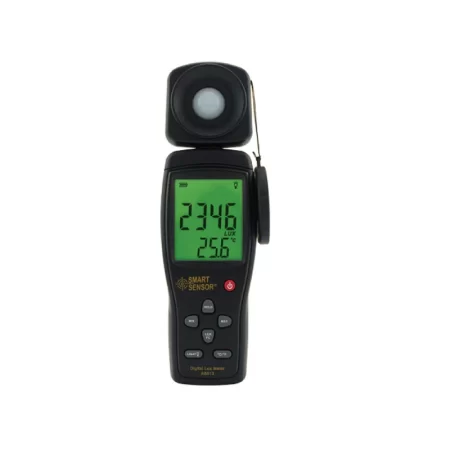

SMART SENSOR Lux Meter (AS813)
- Accuracy ±5%rdg ±10.
- Sampling Frequency 2 time/sec .
- Operation Condition -10~50℃.
- Measuring Range 1~200.000lux.
SMART SENSOR Infrared Thermometer (AF110A)
- Thermometer Accuracy ±2℃.
- Thermometer Resolution 0.1℃.
- Thermometer Distance Spot Ratio 5~10cm.
- Thermometer Response Time 1 sec.
SMART SENSOR Infrared Thermometer (AS530)
- Thermometer Accuracy ±2% or 2℃.
- Thermometer Distance Spot Ratio 12:1.
- Thermometer Resolution 0.1℃or 0.1℉.
- Thermometer Response Time (8-14)um & 500ms.

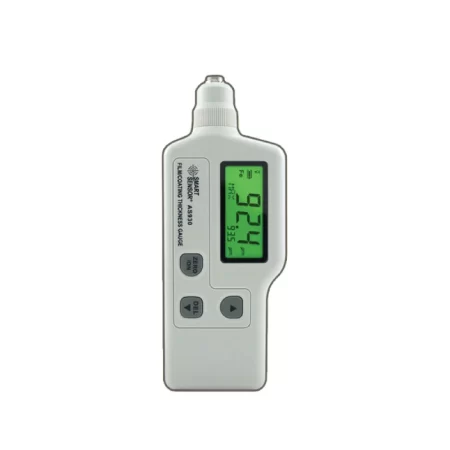

SMART SENSOR Film/Coating Thickness Gauge (AS930)
