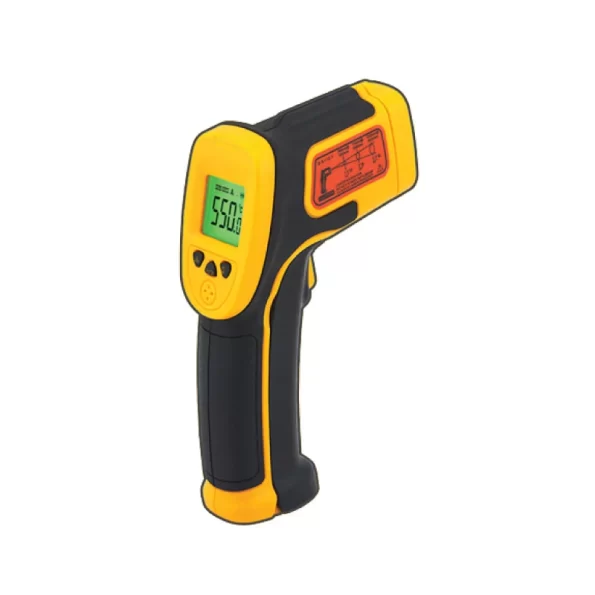

SMART SENSOR Infrared Thermometer (AS530)
- Thermometer Accuracy ±2% or 2℃.
- Thermometer Distance Spot Ratio 12:1.
- Thermometer Resolution 0.1℃or 0.1℉.
- Thermometer Response Time (8-14)um & 500ms.
Infrared thermometer is a thermometer which infers temperature from a portion of the thermal radiation sometimes called black-body radiation emitted by the object being measured. The primary use of an Infrared thermometer is in measuring the temperature of a subject from a distance. In the SMART SENSOR Infrared Thermometer (AS530) most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation.
FEATURES OF SMART SENSOR INFRARED THERMOMETER (AS530)
- Accuracy ±2% or 2℃.
- Distance Spot Ratio 12:1.
- Emissivity 0.95 Pre-set.
- Resolution 0.1℃or 0.1℉.
- Response Time (8-14)um & 500ms.
- Repeatability ±1% or ±1℃.
- Measuring Range -32℃~550℃(-26℉~1022℉).
SPECIFICATION OF SMART SENSOR INFRARED THERMOMETER (AS530)
| Name | Details |
|---|---|
| Model | AS530 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | -32℃~550℃(-26℉~1022℉) |
| Accuracy | ±2% or 2℃ |
| Distance Spot Ratio | 12:1 |
| Emissivity | 0.95 Pre-set |
| Resolution | 0.1℃or 0.1℉ |
| Wavelength & Response Time | (8-14)um & 500ms |
| Repeatability | ±1% or ±1℃ |
| ℃/℉ Selection | √ |
| Data Hold Function | √ |
| Laser Target Pointer Selection | √ |
| Backlight Display | √ |
| Auto Power Off | √ |
PACKING INFORMATION OF SMART SENSOR INFRARED THERMOMETER (AS530)
| Name | Details |
|---|---|
| Power | 2*1.5AAA battery |
| Product Net Weight | 130g |
| Product Size | 146*80*38mm |
| Packing Style | Blister |
| Standard Quantity Per Carton | 60 |
| Standard Carton Size | 56*26.5*46cm |
| Standard Carton Gross Weight | 11.91kg |
VIDEO REVIEW OF SMART SENSOR INFRARED THERMOMETER (AS530)
