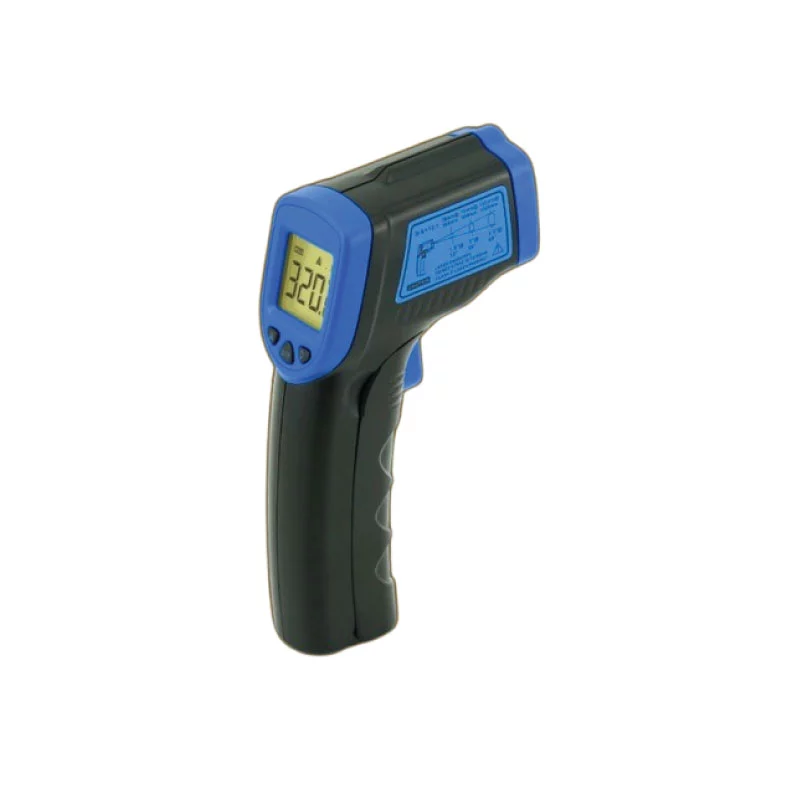

SMART SENSOR Infrared Thermometer (AS320)
- Accuracy ±2%or2℃.
- Response Time (8-14)um & 500ms .
- Repeatability ±1%or±1℃.
- Temperature Range -32℃~380℃ (-26℉~716℉).
Infrared thermometer is a thermometer which infers temperature from a portion of the thermal radiation sometimes called black-body radiation emitted by the object being measured. The primary use of an Infrared thermometer is in measuring the temperature of a subject from a distance. SMART SENSOR Infrared Thermometer (AS320) most basic design consists of a lens to focus the infrared (IR) energy on to a detector, which converts the energy to an electrical signal that can be displayed in units of temperature after being compensated for ambient temperature variation.
FEATURES OF SMART SENSOR INFRARED THERMOMETER (AS320)
- Accuracy ±2%or2℃.
- Distance Spot Ratio 12:1 .
- Emissivity 0.95 pre-set.
- Resolution 0.1℃or 0.1℉.
- Response Time (8-14)um&500ms .
- Repeatability ±1%or±1℃.
- Temperature Range -32℃~380℃(-26℉~716℉).
SPECIFICATION OF SMART SENSOR INFRARED THERMOMETER (AS320)
| Name | Details |
|---|---|
| Model | AS320 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | -32℃~380℃(-26℉~716℉) |
| Accuracy | ±2%or2℃ |
| Distance Spot Ratio | 12:1 |
| Emissivity | 0.95 pre-set |
| Resolution | 0.1℃or 0.1℉ |
| Wavelength & Response Time | (8-14)um&500ms |
| Repeatability | ±1%or±1℃ |
| ℃/℉Selection | √ |
| Data Hold Function | √ |
| Laser Target Pointer Selection | √ |
| Backlight Display Selection | √ |
| Auto Power Off | √ |
PACKING INFORMATION OF SMART SENSOR INFRARED THERMOMETER (AS320)
| Name | Details |
|---|---|
| Power | AAA*2 battery |
| Product Net Weight | 150g |
| Product Size | 143*93*38mm |
| Packing Style | Blister |
| Standard Quantity Per Carton | 60PCS |
| Standard Carton Size | 56*31.5*46cm |
| Standard Carton Gross Weight | 12KG |
