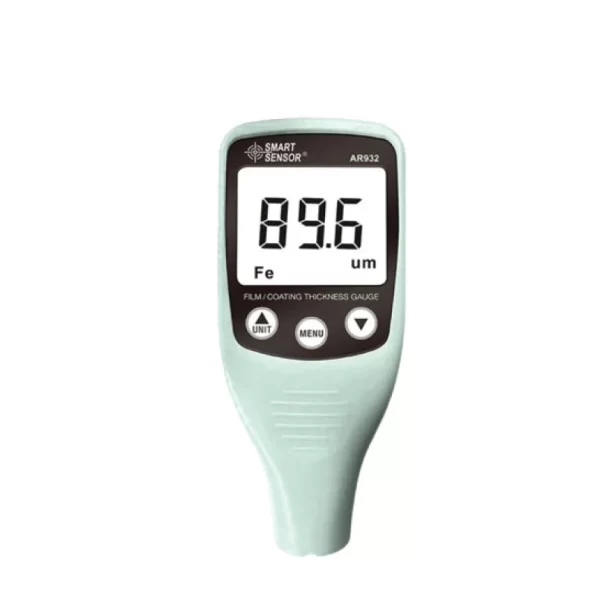

SMART SENSOR Film/Coating Thickness Gauge (AR932)
- Measuring Range 0~1700μm.
- Accuracy ±(1.8%um±2um)(0-500um).
- Data Storage 20 groups.
- Operating Condition 0℃~50℃.
SMART SENSOR Film/Coating Thickness Gauge (AR932) is used to measure dry film thickness. Dry film thickness is probably the most critical measurement in the coatings industry because of its impact on the coating process, quality and cost. Coating thickness gauge is used to measure the coating wall of metals and other material. It uses digital process technology, accurate, and light.
FEATURES OF SMART SENSOR FILM/COATING THICKNESS GAUGE (AR932)
- Measuring Range 0~1700μm.
- Accuracy ±(1.8%um±2um)(0-500um).
- Resolution 0.1μm / 1μm.
- Data Storage 20 groups.
- Operating Condition 0℃~50℃.
SPECIFICATION OF SMART SENSOR FILM/COATING THICKNESS GAUGE (AR932)
| Name | Details |
|---|---|
| Model | AR932 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | 0~1700μm |
| Measuring Principle | Magnetic Induction & Eddy current |
| Accuracy | ±(1.8%um±2um)(0-500um) ; ±(2.2%um±2um) (500-1700um) |
| Resolution | 0.1μm / 1μm |
| Backlight Display | √ |
| Battery Indication | √ |
| Zero / Two Poin / Basic correction | √ |
| Alarm Buzzer | √ |
| Single / Continuous / Standard Deviation Measurement | √ |
| Data Storage & Recall | √ |
| Data Storage | 20 groups |
| Max & Min Measuring | √ |
| AVG & DFR Measuring | √ |
| Metric / Imperial Switchable | √ |
| Data Analysis | √ |
| Operating Condition | 0℃~50℃(without strong magnetic) |
PACKING INFORMATION OF SMART SENSOR FILM/COATING THICKNESS GAUGE (AR932)
| Name | Details |
|---|---|
| Power | 2*1.5V AAA battery |
| Product Net Weight | 75g |
| Product Size | 119*50*30mm |
| Packing Style | Gift Box |
VIDEO REVIEW OF SMART SENSOR FILM/COATING THICKNESS GAUGE (AR932)
