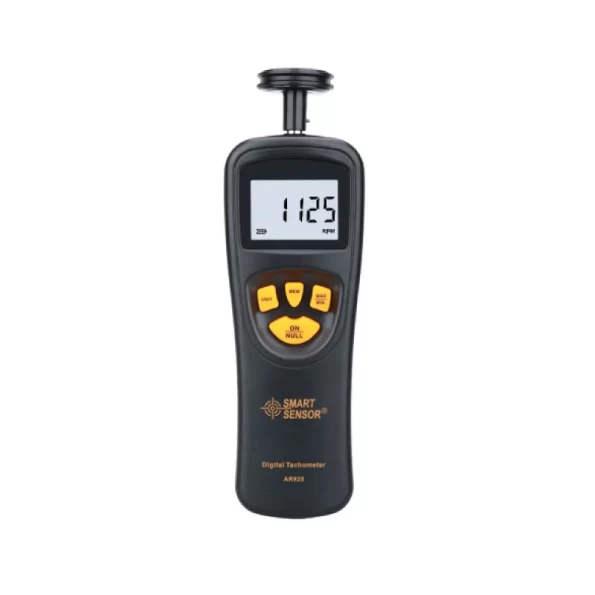

SMART SENSOR Digital Tachometer (AR925)
- Accuracy ±(0.05%+1 digits )
- Sampling Time 0.8 sec (Over 60RPM)
- Measuring Range Rotate: 0.5~19999RPM
- Rotating Speed Resolution 0.1RPM (2.5~999.9RPM)
SMART SENSOR Digital Tachometer (AR925) (RPM gauge) is an instrument measuring the rotation speed of a shaft or disk, as in a motor or other machine. The device usually displays the revolutions per minute (RPM) on a digital displays. Applying the MCU, photoelectricity and laser semiconductor technology, perform measurement of rotating speed Contact and Non Contact.
FEATURES OF SMART SENSOR DIGITAL TACHOMETER (AR925)
- Accuracy ±(0.05%+1 digits )
- Sampling Time 0.8 sec (Over 60RPM)
- Measuring Range Rotate: 0.5~19999RPM Linear: 0.05~19999.9m/min 0.2~6560 ft/min.
- Rotating Speed Resolution 0.1RPM (2.5~999.9RPM) 1RPM (Over 1000RPM).
- Linear Rolling Speed Resolution 0.01 m/min 0.05~99.99m/min) 0.1 m/min (Over 100 m/min)/ 0.1 ft (0.1~999.9 ft/min)/ 1 ft/min (Over 100 ft/min).
SPECIFICATION OF SMART SENSOR DIGITAL TACHOMETER (AR925)
| Name | Details |
|---|---|
| Model | AR925 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Range | Rotate: 0.5~19999RPM Linear: 0.05~19999.9m/min 0.2~6560 ft/min |
| Rotating Speed Resolution | 0.1RPM (2.5~999.9RPM) 1RPM (Over 1000RPM) |
| Linear Rolling Speed Resolution | 0.01 m/min 0.05~99.99m/min) 0.1 m/min (Over 100 m/min)/ 0.1 ft (0.1~999.9 ft/min)/ 1 ft/min (Over 100 ft/min) |
| Measuring Distance | X |
| Accuracy | ±(0.05%+1 digits ) |
| Sampling Time | 0.8 sec(Over 60RPM) |
| Max / Min Measuring | V |
| Data Storage | V |
| Memories Clear | V |
| Range Selection | Auto |
PACKING INFORMATION OF SMART SENSOR DIGITAL TACHOMETER (AR925)
| Name | Details |
|---|---|
| Power | 3*1.5V AAA Battery (not include) |
| Product Net Weight | 132g |
| Product Size | 155*55*35mm |
| Packing Style | Gift Box |
VIDEO REVIEW OF SMART SENSOR DIGITAL TACHOMETER (AR925)
