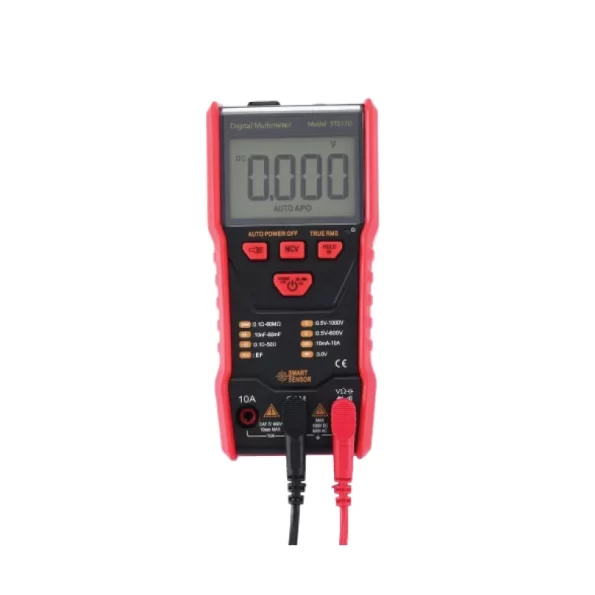

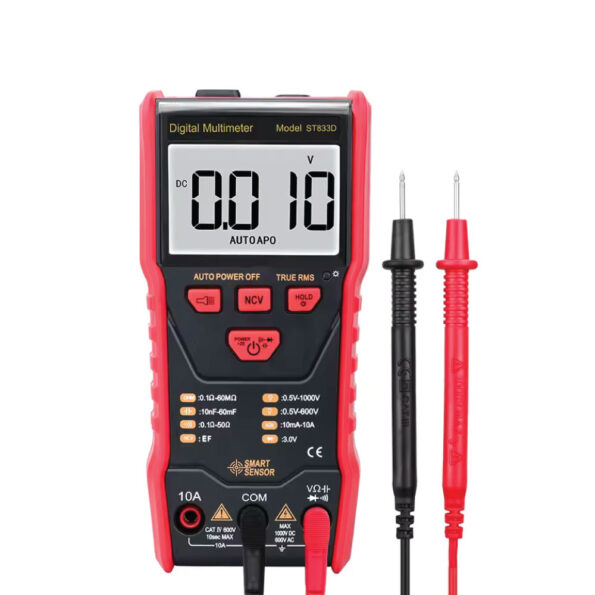

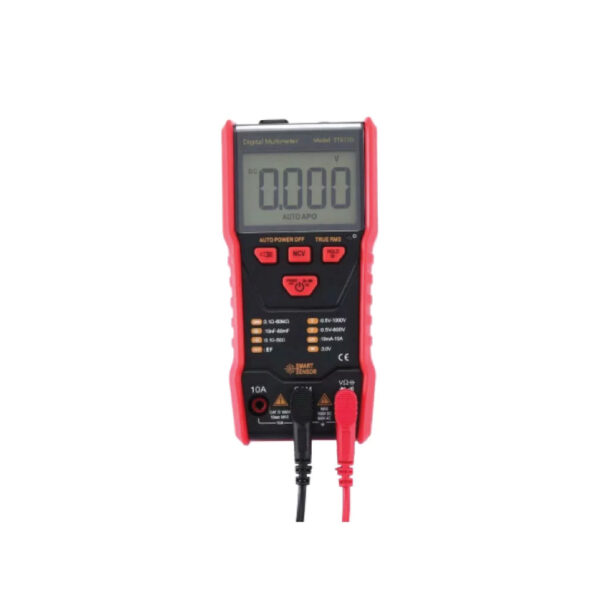

SMART SENSOR Digital Multimeter (ST833D)
- Resistance 600Ω/600KΩ/60MΩ +/-(0.8%+3)
- Capacitance 100nF/100μF/100mF+/-(3.5%+20)
- Maximum Display 5999(35/6) Bit Automatic Polarity
- Temperature Environment 0-40°C RH＜80%

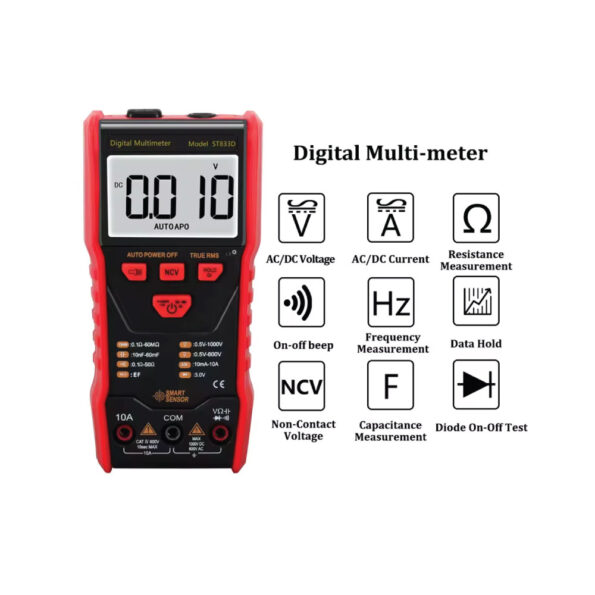

SMART SENSOR Digital Multimeter (ST833D) is a pocket-size 3 5/6-bit automatic digital instrument. it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument, the backlight can be bright can be automatically turned off after 15 seconds. This series of instruments can be used to measure the DC voltage and AC voltage DC current and AC current、resistance、 capacitance diode 、continuity test, frequency measurement, and true RMS measurement and other parameters. Is an ideal tool for the laboratory, factory, radio enthusiasts, and families.

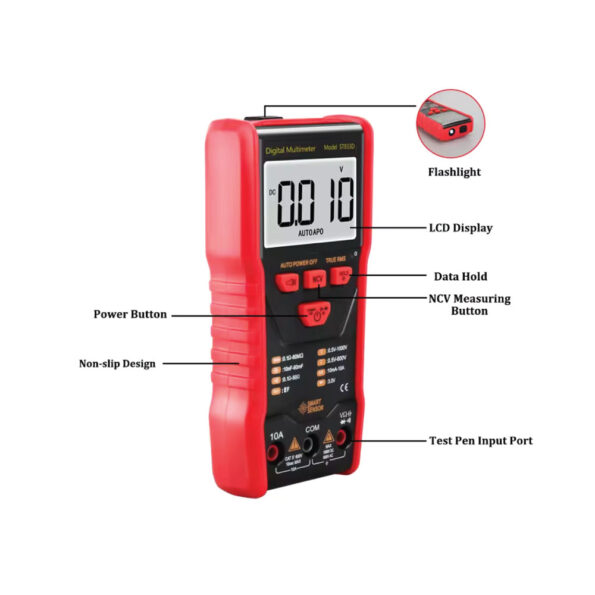

FEATURES OF SMART SENSOR DIGITAL MULTIMETER (ST833D)
- Display a larger Liquid crystal LCD display.
- Maximum display: 5999(35/6) bit automatic polarity display.
- Measurement method: double integral A/D conversion.
- Sampling Rate: About 3 times per second.
- Over range display: the highest position shows “OL”.
- Low voltage display: low battery indication.
- Working environment: (0-40)°C, relative humidity ＜80%.
- Power Supply: AAA 1.5V battery*2(Not Included).
- It is stable performance, high precision, high-reliability clear readings, and overload protection.
SPECIFICATION OF SMART SENSOR DIGITAL MULTIMETER (ST833D)
| Name | Details |
|---|---|
| Model | ST833D |
| Brand | SMART SENSOR |
| Origin | China |
| AC voltage(V) | 6V-600V +/-(0.5%+3) |
| DC voltage(V) | 6V-750V +/-(0.8%+3) |
| AC current(A) | 6A-10A +/-(2%+30) |
| DC current(A) | 6A-10A+/-(2%+30) |
| Resistance | 600Ω/600KΩ/60MΩ +/-(0.8%+3) |
| Capacitance | 100nF/100μF/100mF+/-(3.5%+20) |
| Frequency (F) | × |
| Maximum Display | 5999(35/6) Bit Automatic Polarity |
| Zero/Fire Line Test | × |
| Diode | √ |
| Transistor hFE | × |
| NVC | √ |
| Backlight Manual/Auto Off | √ |
| True RMS Measurement | √ |
| Flashlight Lighting | √ |
| Full Unit Symbol | √ |
| Low voltage Indicator | √ |
| Display | LCD display |
| Sampling Rate | About 3 second/time |
| Temperature Environment | 0-40°C RH＜80% |

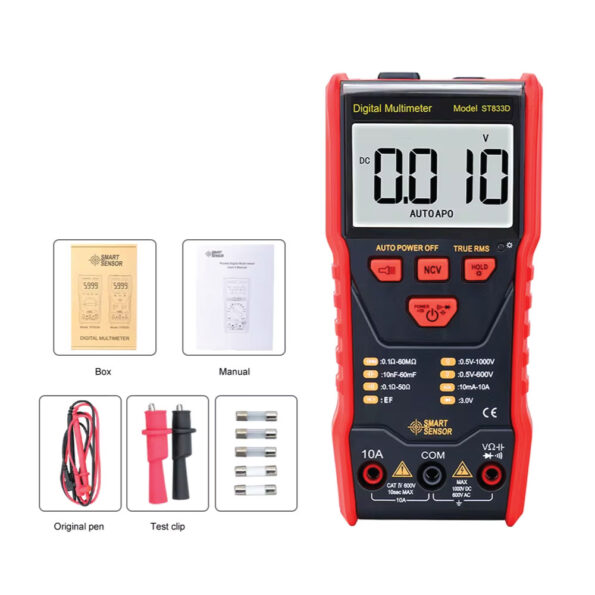

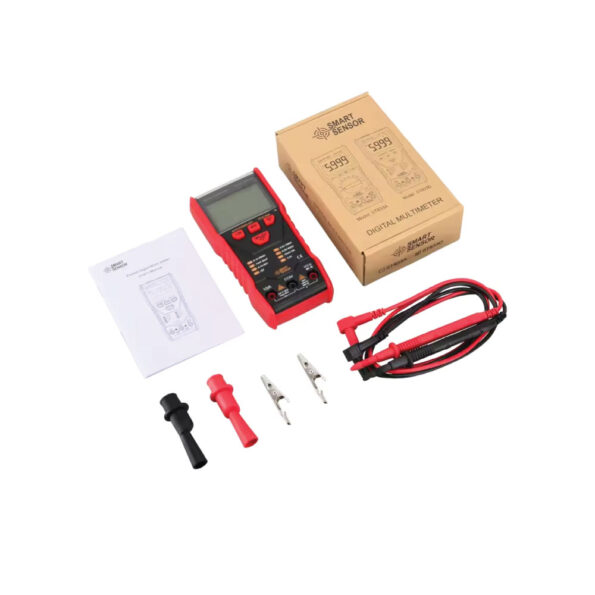

PACKING INFORMATION OF SMART SENSOR DIGITAL MULTIMETER (ST833D)
| Name | Details |
|---|---|
| Power | 2*1.5V AAA Battery |
| Product Net Weight | 330g |

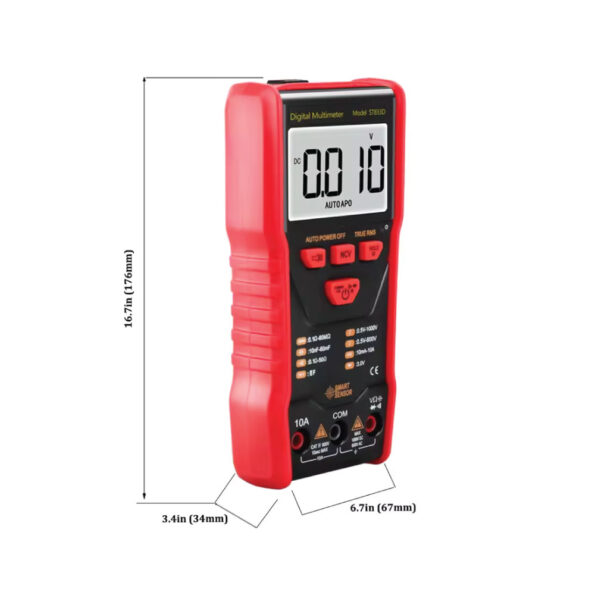

| Product Size | 170*105*55mm |
| Packing Style | Gift Box |
