SMART SENSOR Digital Clamp Meter (ST821)
- Automatic Shutdown Time 15 minutes.
- Operating Temperature 0~40℃ (32~104℉).
- Operating Relative Humidity Less Then 80%.
- Temperature Measurement Range -20-1000℃(-4-1832℉).

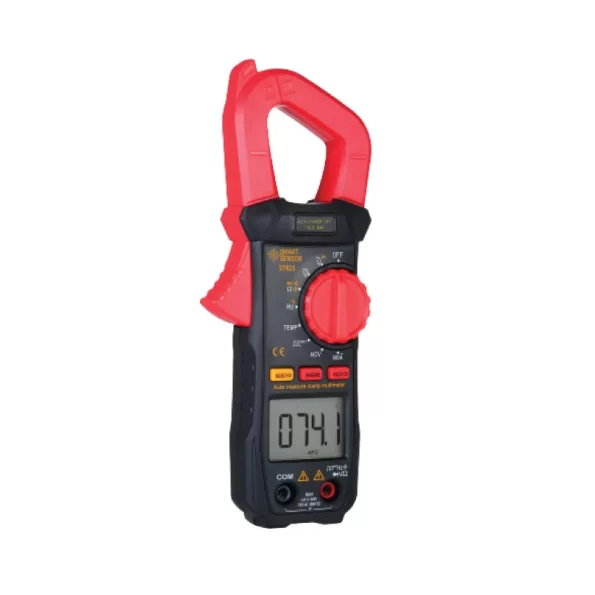

SMART SENSOR Digital Clamp Meter (ST821) is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it’s carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value. This design has the advantage of being able to measure current without requiring that the circuit under measurement be cut.
FEATURES OF SMART SENSOR DIGITAL CLAMP METER (ST821)
- Maximum Display 5999(3 5/6) bits automatic polarity display.
- Automatic Shutdown Time 15 minutes.
- Operating Temperature 0~40℃ (32~104℉).
- Operating Relative Humidity Less Then 80%.
- DC Voltage Range 6-1000V±(0.5%+3).
- AC Voltage Range 6-750V±(0.8%+3).
- AC Current Range 6-600A±(2.5%+30).
- Resistance Range 6-600kΩ±(0.8%+3).
- Capacitance Range 60nF-30000μF±(3.5%+20).
- Frequency Range 1kHz~100kHz±(0.1%+3).
- Temperature Measurement Range -20-1000℃(-4-1832℉).
SPECIFICATION OF SMART SENSOR DIGITAL CLAMP METER (ST821)
| Name | Details |
|---|---|
| Model | ST821 |
| Brand | SMART SENSOR |
| Origin | China |
| Material | ABS |
| Color | Red-black |
| Display | LCD Display |
| Maximum Display | 5999(3 5/6) bits automatic polarity display |
| Automatic Shutdown Time | 15 minutes |
| Operating Temperature | 0~40℃ (32~104℉) |
| Operating Relative Humidity | Less Then 80% |
| DC Voltage Range | 6-1000V±(0.5%+3) |
| AC Voltage Range | 6-750V±(0.8%+3) |
| AC Current Range | 6-600A±(2.5%+30) |
| Resistance Range | 6-600kΩ±(0.8%+3) |
| Capacitance Range | 60nF-30000μF±(3.5%+20) |
| Frequency Range | 1kHz~100kHz±(0.1%+3) |
| Temperature Measurement Range | -20-1000℃(-4-1832℉) |
PACKING INFORMATION OF SMART SENSOR DIGITAL CLAMP METER (ST821)
| Name | Details |
|---|---|
| Power | 2 * 1.5V AAA Battery (NOT included) |
| Product Net Weight | 172g |
| Product Size | 18*6.3*2.5cm |
| Packing Style | Gift Box |
VIDEO REVIEW OF SMART SENSOR DIGITAL CLAMP METER (ST821)
