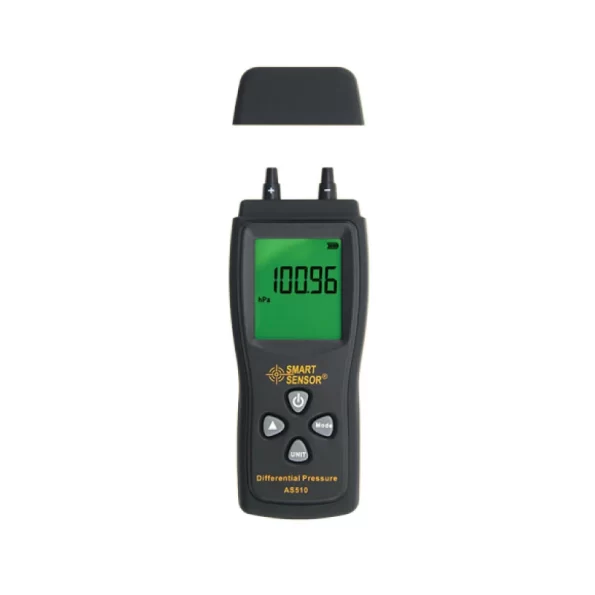

SMART SENSOR Differential Pressure Meter (AS510)
- Sampling Time: 0.5 sec.
- Resolution: 0.01hPa, 0.01inH²O.
- Operating Environment: 0~50°C, 32~122°F.
- Measuring range 0~100hPa 0~40.15inH²O.
SMART SENSOR Differential Pressure Meter (AS510) is High reliability, stability, and accuracy DP transmitters. It is widely used in the field of liquid, gas pressure test, water, oil, and mildly corrosive liquids measurement.
FEATURES OF SMART SENSOR DIFFERENTIAL PRESSURE METER (AS510)
- Measuring range 0~100hPa 0~40.15inH²O.
- Sampling Time: 0.5 sec.
- Resolution: 0.01hPa, 0.01inH²O.
- Operating Environment: 0~50°C, 32~122°F.
- Unit Selection: Pa, hPa, mbar, mmH²O, mmHg, inHg, inH²O, psi, m/s, fp.
- Accuracy: ±0.03hPa(0~0.30hPa) & ±0.05hPa(0.31~1.0hPa) & ±(1.5%+0.1hPa) & ±0.01inH²O(0.00~0.12inH²O) & ±0.02inH²O(0.13~0.40inH²O) & ±(1.5%+0.4inH²O).
SPECIFICATION OF SMART SENSOR DIFFERENTIAL PRESSURE METER (AS510)
| Name | Details |
|---|---|
| Model | AS907A |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring range | 0~100hPa & 0~40.15inH²O |
| Accuracy | ±0.03hPa(0~0.30hPa) ±0.05hPa(0.31~1.0hPa) ±(1.5%+0.1hPa) ±0.01inH²O(0.00~0.12inH²O) ±0.02inH²O(0.13~0.40inH²O) ±(1.5%+0.4inH²O) |
| Resolution | 0.01hPa, 0.01inH²O |
| Sampling Time | 0.5 sec |
| Unit Selection | Pa, hPa, mbar, mmH²O, mmHg, inHg, inH²O, psi, m/s, fp |
| Operating Environment | 0~50°C, 32~122°F |
PACKING INFORMATION OF SMART SENSOR DIFFERENTIAL PRESSURE METER (AS510)
| Name | Details |
|---|---|
| Power | 3*1.5V AAA battery |
| Product Net Weight | 71.5g |
| Product Size | 124.8*49.8*25.6mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 40PCS |
| Standard Carton Size | 52.5*40*49cm |
| Standard Carton Gross Weight | 19.01KG |
VIDEO REVIEW OF SMART SENSOR DIFFERENTIAL PRESSURE METER (AS510)
