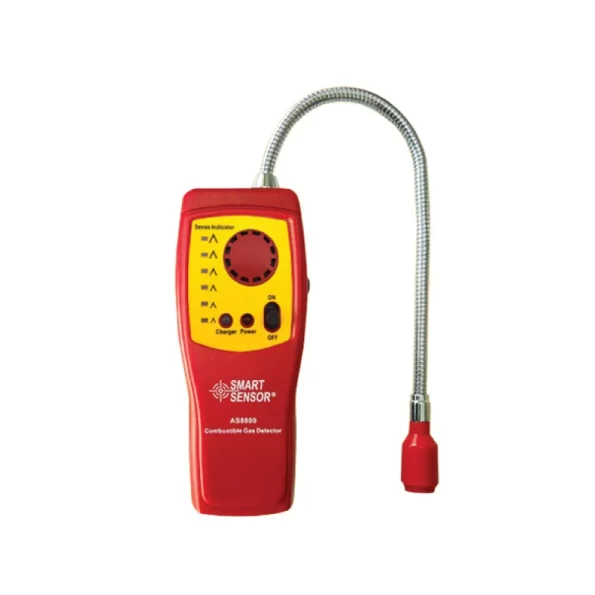

SMART SENSOR Combustible Gas Leak Detector (AS8800)
- Warm up time <20 sec.
- Continuous Operation Time 9 hours.
- Operation Condition 0°C~ 50°C ; ≤80%RH (Non Gel)
- Sensitivity Variable, minimum 5ppm (gasoline).
SMART SENSOR Combustible Gas Leak Detector (AS8800) is a device that detects the presence of gases in an area, often as part of a safety system. This type of equipment is used to detect a gas leak and interface with a control system so a process can be automatically shut down. Gas Detector can sound an alarm to operators in the area where the leak is occurring, giving them the opportunity to leave. This type of device is important because there are many gases that can be harmful to organic life.
Gas detectors can be used to detect combustible, flammable and toxic gases, and oxygen depletion, etc. This type of device is widely used in industry and can be found in locations, such as on oil rigs, to monitor manufacture processes and emerging technologies such as photovoltaic. They may also be used in firefighting.
FEATURES OF SMART SENSOR COMBUSTIBLE GAS LEAK DETECTOR (AS8800)
- Warm up time <20 sec.
- Continuous Operation Time 9 hours.
- Leak Size Indication Indication Light & Alarm Buzzer.
- Operation Condition 0°C~ 50°C ; ≤80%RH (Non Gel)
- Sensitivity Variable, minimum 5ppm (gasoline).
SPECIFICATION OF SMART SENSOR COMBUSTIBLE GAS LEAK DETECTOR (AS8800)
| Name | Details |
|---|---|
| Model | AS8800 |
| Brand | SMART SENSOR |
| Origin | China |
| Gas Type | Combustable Gas |
| Measuring Principle | Semiconductor |
| Sensitivity | Variable, minimum 5ppm (gasoline) |
| Response Time | Instantaneous |
| Warm up time | <20 sec. |
| Continuous Operation Time | 9 hours (slightly vary with working condition) |
| Sensitivity Adjustment | √ |
| Overcharge / Overcurrent Protection | √ |
| Power Indication | √ |
| Battery Indication | √ |
| Leak Size Indication | Indication Light & Alarm Buzzer |
| Operation Condition | 0°C~ 50°C ; ≤80%RH (Non Gel) |
PACKING INFORMATION OF SMART SENSOR COMBUSTIBLE GAS LEAK DETECTOR (AS8800)
| Name | Details |
|---|---|
| Power | 3.7V li-battery |
| Product Net Weight | 225g |
| Product Size | 156*66*31mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 10 |
| Standard Carton Size | 39*44*32cm |
| Standard Carton Gross Weight | 9.77KG |
