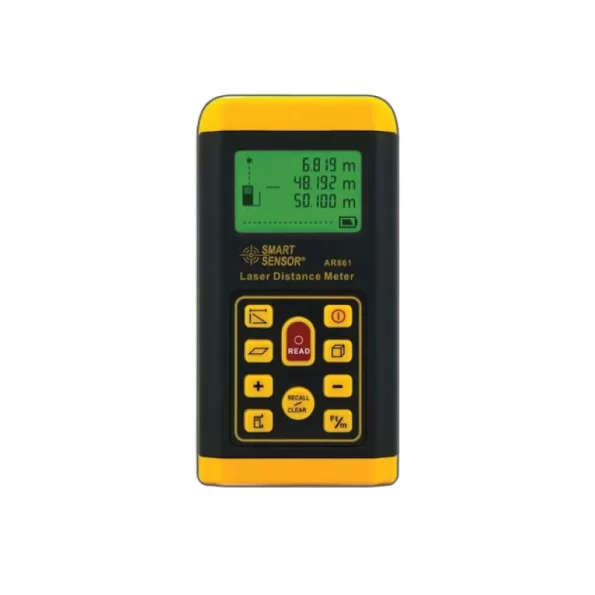

SMART SENSOR 60M Laser Distance Meter (AR861)
- Accuracy ±2mm.
- Data Store / Recall 30 Groups.
- Measuring Range 0.3~40m.
- Operation Condition 0°C ~ 60°C.
SMART SENSOR 60M Laser Distance Meter (AR861) is an instrument to measure the accurate distance to the goal by utilizing a laser. While working, the laser range finder projects a bunch of very thin lasers to the goal, the photoelectric element receives the goal reflection’s laser beam, the timer determines the laser beam receive time from the launch, calculates the distance from the observer to the goal.
SMART SENSOR 60M Laser Distance Meter (AR861) weight is light, the volume is small, simple operation, quick and accurate, its error is only other range finder’s 1/5 to1%. Thus it is widely used in the topographic measure, battlefield measure, tank, airplane, naval vessel and artillery to goal range, and measure the height of cloud layer, airplane, missile as well as satellite and so on. It is important technical equipment to enhance the tank, the airplane, the naval vessel and the artillery precision.
FEATURES OF SMART SENSOR 60M LASER DISTANCE METER (AR861)
- Accuracy ±2mm.
- Resolution 1mm.
- Measuring Principle Laser.
- Laser Class Class 2.
- Data Store / Recall 30 Groups.
- Measuring Range 0.3~60m.
- Operation Condition 0°C ~ 60°C.
- Laser Power & Wavelength P≤1mW λ=635nm.
SPECIFICATION OF SMART SENSOR 60M LASER DISTANCE METER (AR861)
| Name | Details |
|---|---|
| Model | AR861 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Principle | Laser |
| Measuring Range | 0.3~60m |
| Accuracy | ±2mm |
| Imperial/Metric Selection | √ |
| Resolution | 1mm |
| Operation Condition | 0°C ~ 60°C |
| Laser Power & Wavelength | P≤1mW λ=635nm |
| Data Store / Recall | 30 Groups |
| Laser Class | Class 2 |
| Triangulation Measurement | √ |
| Low Power Indicatioon | √ |
| Backlight | √ |
| Continueing Measurement | √ |
| Measuring Benchmark Setup | √ |
| Length Summation | √ |
| Area/ Volume Measurement Function | √ |
PACKING INFORMATION OF SMART SENSOR 60M LASER DISTANCE METER (AR861)
| Name | Details |
|---|---|
| Power | AA*2 battery |
| Product Net Weight | 217g |
| Product Size | 129*69*40mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 20pcs |
| Standard Carton Size | 62.5*45*28.5cm |
| Standard Carton Gross Weight | 17kg |
VIDEO REVIEW OF SMART SENSOR 60M LASER DISTANCE METER (AR861)
