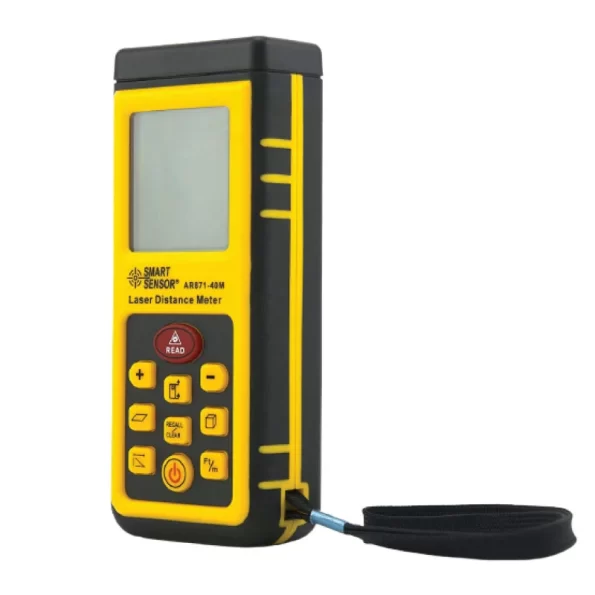

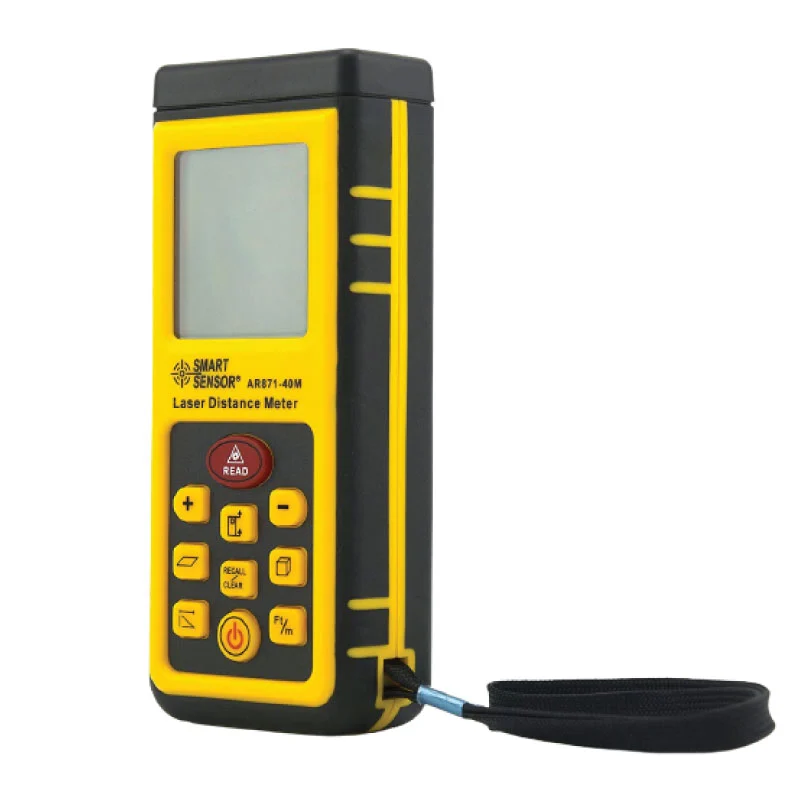

SMART SENSOR 40M Laser Distance Meter (AR871)
- Accuracy ±3mm.
- Measuring Range 0.3~40m.
- Operation Condition -10°C ~ 50°C.
- Data Store / Recall 30 Groups.
SMART SENSOR 40M Laser Distance Meter (AR871) is a meter which uses a laser beam to determine the distance to an object. The most common form of Laser Distance Meter operates on the time of flight principle by sending a laser pulse in a narrow beam towards the object and measuring the time taken by the pulse to be reflected off the target and returned to the sender. Laser Distance Meters are also used in several industries like construction, renovation and real estate as an alternative to a tape measure. They can also be used for military reconciliation and engineering.
FEATURES OF SMART SENSOR 40M LASER DISTANCE METER (AR871)
- Accuracy ±3mm.
- Resolution 1mm.
- Measuring Principle Laser.
- Measuring Range 0.3~40m.
- Laser Power & Wavelength P≤1mW λ=635nm.
- Data Store / Recall 30 Groups.
- Laser Class Class 2.
- Operation Condition 0°C ~40°C.
- Measurement Function Length, Area, Volume, Pythagorean Theorem.
SPECIFICATION OF SMART SENSOR 40M LASER DISTANCE METER (AR871)
| Name | Details |
|---|---|
| Model | AR871 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Principle | Laser |
| Measuring Range | 0.3~40m |
| Accuracy | ±2mm |
| Resolution | 1mm |
| Laser Power & Wavelength | P≤1mW λ=635nm |
| Data Store / Recall | Groups |
| Laser Class | Class 2 |
| Measurment Function | Length, Area, Volume, Pythagorean Theorem |
| Operation Condition | 0°C ~40°C |
| Area / Volume / Pythagorean Theorem Calculation | √ |
| Addition / Subtraction | √ |
| Battery Indication | √ |
| Auto/Manual Power Off | √ |
| Backlight Display | √ |
| Measuring Ref Point Switch | √ |
| Ft / M Selection | √ |
PACKING INFORMATION OF SMART SENSOR 40M LASER DISTANCE METER (AR871)
| Name | Details |
|---|---|
| Power | 2*1.5AAA battery |
| Product Net Weight | 85g |
| Product Size | 120*48*28mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 40 |
| Standard Carton Size | 52.5*40*49cm |
| Standard Carton Gross Weight | 12KG |
