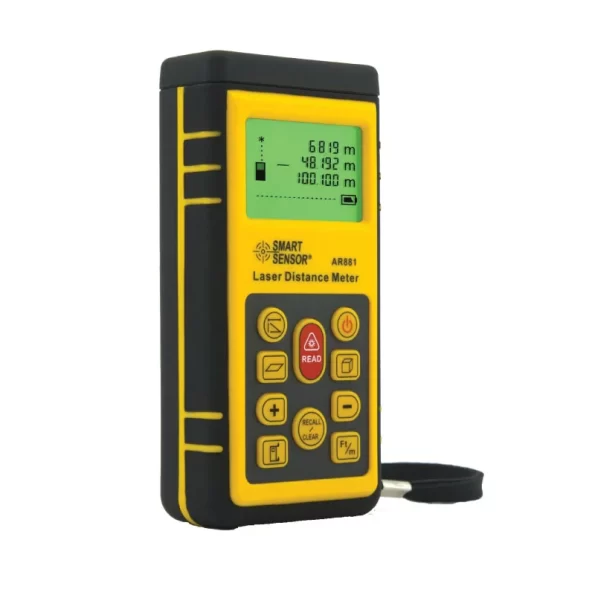

SMART SENSOR 100M Laser Distance Meter (AR881)
- Accuracy ±2mm.
- Data Store / Recall 30 Groups.
- Measuring Range 0.3~100m.
- Operation Condition 0°C ~ 40°C.
SMART SENSOR 100M Laser Distance Meter (AR881) is an instrument to measure the accurate distance to the goal by utilizing a laser. While working, the laser range finder projects a bunch of very thin lasers to the goal, the photoelectric element receives the goal reflection’s laser beam, the timer determines the laser beam receive time from the launch, and calculates the distance from the observer to the goal.
SMART SENSOR 100M Laser Distance Meter (AR881) weight is light, the volume is small, simple operation, quick and accurate, its error is only other range finder’s 1/5 to1%. Thus it is widely used in the topographic measure, battlefield measure, tank, airplane, naval vessel and artillery to goal range, and measure the height of cloud layer, airplane, missile as well as satellite and so on. It is important technical equipment to enhance the tank, the airplane, the naval vessel and the artillery precision.
FEATURES OF SMART SENSOR 100M LASER DISTANCE METER (AR881)
- Accuracy ±2mm.
- Resolution 1mm.
- Laser Class Class 2.
- Data Store / Recall 30 Groups.
- Measuring Principle Laser.
- Measuring Range 0.3~100m.
- Operation Condition 0°C ~ 40°C.
- Laser Power & Wavelength P≤1mW λ=635nm.
SPECIFICATION OF SMART SENSOR 100M LASER DISTANCE METER (AR881)
| Name | Details |
|---|---|
| Model | AR881 |
| Brand | SMART SENSOR |
| Origin | China |
| Measuring Principle | Laser |
| Measuring Range | 0.3~100m |
| Accuracy | ±2mm |
| Resolution | 1mm |
| Operation Condition | 0°C ~ 40°C |
| Laser Power & Wavelength | P≤1mW λ=635nm |
| Data Store / Recall | 30 Groups |
| Laser Class | Class 2 |
| Measure In Imperial/Metric | √ |
| Triangulation Measurement | √ |
| Low Battery Indication | √ |
| Sum Of Length | √ |
| Auto / Manual Power Off | √ |
| Backlight Display Selection | √ |
| Measuring Benchmark Setup | √ |
| Key Sound Beeps For Wrong Reading And Reading Confirmation | √ |
PACKING INFORMATION OF SMART SENSOR 100M LASER DISTANCE METER (AR881)
| Name | Details |
|---|---|
| Power | AA*2 battery |
| Product Net Weight | 230g |
| Product Size | 132*63*34.5mm |
| Packing Style | Gift Box |
| Standard Quantity Per Carton | 20pcs |
| Standard Carton Size | 62.5*45*28.5cm |
| Standard Carton Gross Weight | 18kg |
VIDEO REVIEW OF SMART SENSOR 100M LASER DISTANCE METER (AR881)
