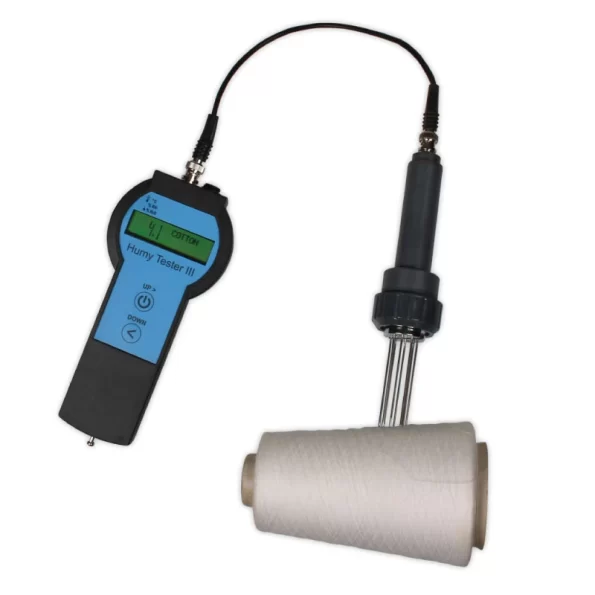

SCHMIDT Digital Textile Moisture Meter (DHT-3)
- Display LCD, resolution 0.1.
- Accuracy ±1 % full scale.
- Reproducibility ±0,3 %.
- Auto Power off After 2 min of non-use.
Multi function moisture meter to determine the residual moisture of yarn bobbins, fabric rolls, cotton bales, fiber flocks etc. optional to measure room temperature and humidity RH %. Portable textile moisture meter with digital display.
FEATURES OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-3)
- Display LCD, resolution 0.1.
- Accuracy ±1 % full scale.
- Reproducibility ±0,3 %.
- Power supply Battery 9 V E Block, low battery signal.
- Auto Power off After 2 min of non-use.
- Weight net (gross) Approx. 258 g (1650 g).
- Dimensions: 200 x 95 x 40 mm (LxWxH).
SPECIFICATION OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-3)
| Name | Details |
| Model | DHT-3 |
| Brand | SCHMIDT |
| Origin | Germany |
| Application: Residual moisture: Room temperature: |
Direct reading: wool, rayon, cotton, hemp, jute, paper, linen, nylon, acrylic, polyester, 50 PES/50 Zw, 50 PES/50 PAC, 50 PES/50 Bw, 67 PES/33 Bw, 70 PES/30 Zw, 70 PES/30 Wo, 67 PAC/33 Bw, 70 PAC/30 Wo, 60 Bw/40 PES, 50 Wo/50 Zw Indirect reading: 0 – 100 scale and 20 conversion sheets for different materials -30 to 70 °C (optional) 5 to 95 % RH (optional) |
| Display: | LCD, resolution 0.1 |
| Accuracy: | ±1 % full scale |
| Reproducibility: | ±0,3 % |
| Power supply: | Battery 9 V E Block, low battery signal |
| Auto Power off: | After 2 min of non-use |
| Weight net (gross): | Approx. 258 g (1650 g) |
| Dimensions: | 200 x 95 x 40 mm (LxWxH) |
| APPLICATION RANGE | Wool (Wo) 8 – 24.5 % Cotton (Bw) 2 – 12 % Rayon (Zw) 3 – 23 % Hemp (Ha) 2 – 15.5 % Jute (Ju) 3 – 21.5 % Paper (Pa) 2 – 16.5 % Linen (Li) 4 – 14.5 % Nylon (PA) 1.5 – 6 % Acryl (PAC) 0.1 – 2.4 % Polyester (PES) 0.5 – 3.5 % 50 PES/50 Zw 4 – 12.5 % 50 PES/50 PAC 0.5 – 1.5 % 50 PES/50Bw 1 – 7 % 67 PES/33 Bw 1 – 4.5 % 70 PES/30 Zw 1 – 9.5 % 70 PES/30 Wo 2 – 6.5 % 67 PAC/33 Bw 2 – 6 % 70 PAC/30 Wo 3 – 8 % 60 Bw/40 PES 2 – 9 % 50 Wo/50 Zw 4 – 24 % |
PACKING INFORMATION OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-3)
VIDEO REVIEW OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-3)
