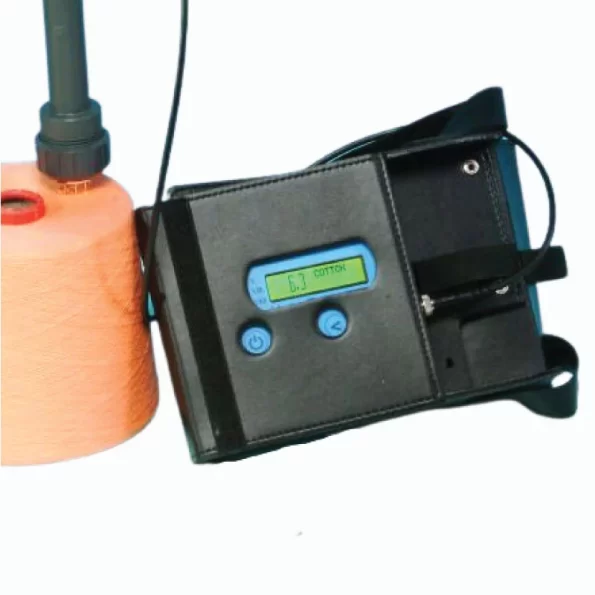

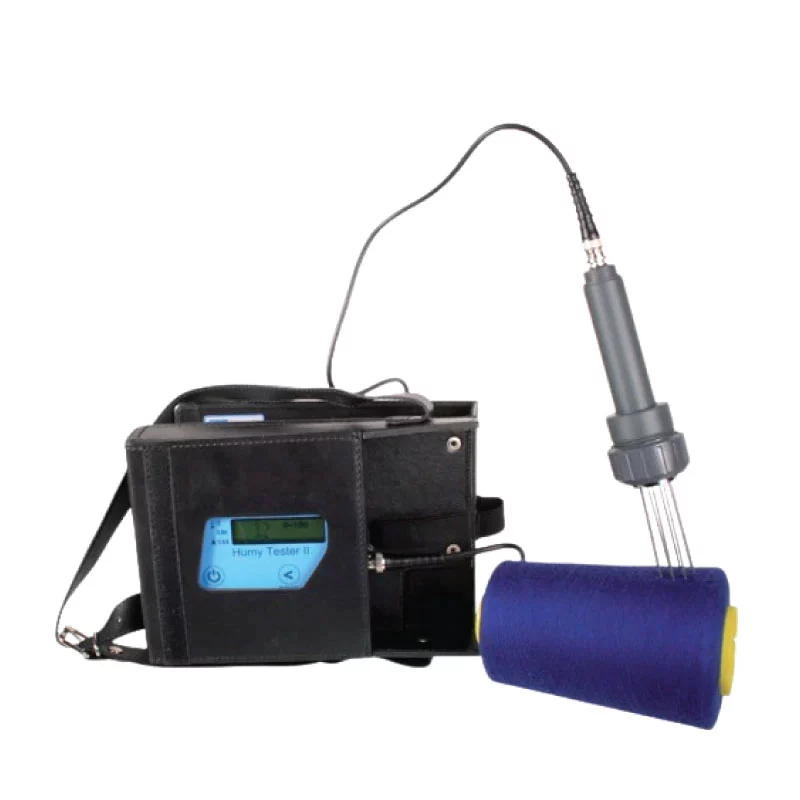

SCHMIDT Digital Textile Moisture Meter (DHT-1)
- Accuracy: ±1 % full scale.
- Reproducibility: 0.3 %.
- Display: LCD, resolution 0.1.
- Auto Power off: After 2 min of non-use.
Multi function instrument to determine the residual moisture of yarn bobbins, fabric rolls, cotton bales, fiber flocks etc., as well as to measure room temperature and humidity RH % Portable textile moisture meter with digital display
FEATURES OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-1)
- Display: LCD, resolution 0.1.
- Accuracy: ±1 % full scale.
- Reproducibility: 0.3 %.
- Power supply: Battery 9 V E Block, low battery signal.
- Auto Power off: After 2 min of non-use.
- Weight net (gross): Approx. 900 g (1300 g).
- Dimensions: 170 x 250 x 65 mm (LxWxH).
SPECIFICATION OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-1)
| Name | Details |
| Model | DHT-1 |
| Brand | SCHMIDT |
| Origin | Germany |
| Application: Residual moisture: Room temperature: |
Direct reading: wool, rayon, cotton, linen, nylon, acrylic, polyester, 50 PES/50 Zw, 50 PES/50 PAC, 50 PES/50 Bw, 67 PES/33 Bw, 70 PES/30 Zw, 70 PES/30 Wo, 67 PAC/33 Bw, 70 PAC/30 Wo, 60 Bw/40 PES, 50 Wo/50 Zw Indirect reading: |
| Display: | LCD, resolution 0.1 |
| Accuracy: | ±1 % full scale |
| Reproducibility: | 0.3 % |
| Power supply: | Battery 9 V E Block, low battery signal |
| Auto Power off: | After 2 min of non-use |
| Weight net (gross): | Approx. 900 g (1300 g) |
| Dimensions: | 170 x 250 x 65 mm (LxWxH) |
PACKING INFORMATION OF SCHMIDT DIGITAL TEXTILE MOISTURE METER (DHT-1)
