Best Button Pull Test Machine Importer & Supplier in Bangladesh. Button Pull Test Machine is a Textile Lab Machinery. Button Pull Test Machine is a tool for checking button pressure.

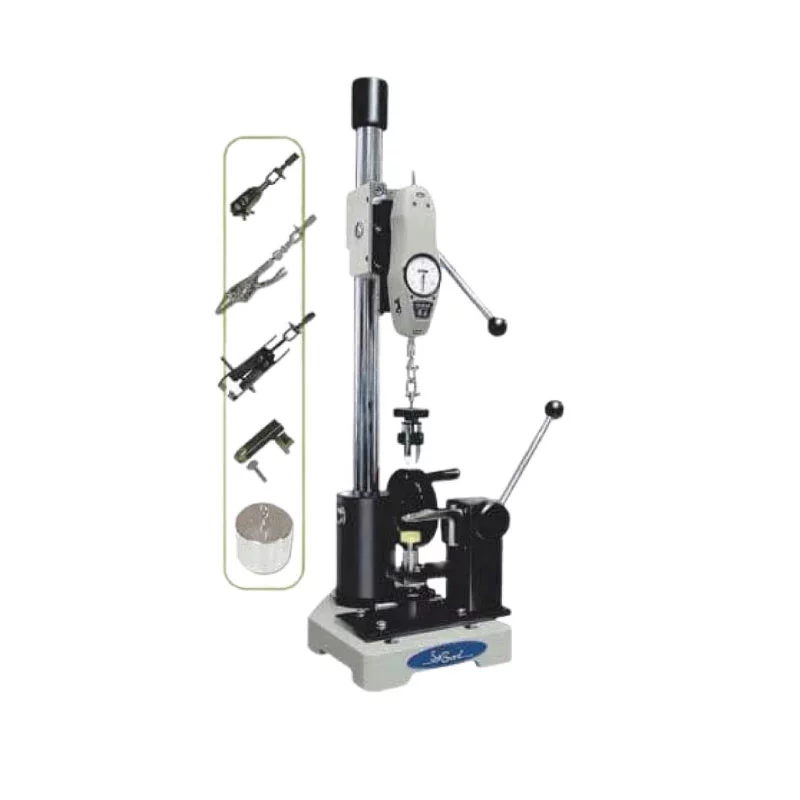

SafGuard Button Pull Test Machine (STA-0020) is the unique safety test instrument that provides a means to accurately measure how safe accessories are attached in a product. It is also used to compare a variety of accessories from different vendors in the process from product design to production so that we can safeguard our consumers. It is a simple but effective design mainly consisting of a high precision gauge, a sturdy stand, and special grips/clamps. It requires very little training. A sample required by standards & regulations is to fix horizontally (constant force is applied to secure the sample) so that snap or other accessories attached in fabric can be clamped into. Moreover, a standard weight is also offered so that it can be regularly checked if it meets the safety requirements.

FEATURES OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

• Including standard accessories.
• Including 15 kg LBS Calibration Weight.
• Including 30 kg/295N Japanese IMADA Measuring Meter.
• Standard BV, JAPAN Product Liability Law | ASTM F963, EN 71, M&S P115A (for snap) | P115 (for button) | ASTM D4846-96.

Better Cost-Effective And Quality Design:

• Ergonomically Constructed: force meter holder can be retained upwards during sampling.
• User-friendly: side-wheel operation.
• Economically exchangeable: with a plenty of different of grips/clamps.
• Longer Stand Spacious: for more applications.

Better Test Reproducibility and Repeatability:

• Constant Clamping Force in Lower Fabric Clamp (STA-0042) to minimize operation error.
• Minimum Clamping Failure & Slippage chiefly because our Universal Grip (STA-0041) can accurately secure snap and does not damage the fabric.

Better Recognition:

• Unlike others, SafGuard has been adopted by all world’s leading textile testing labs (e.g. BV MTL_ACTS, Intertek, SGS & STR…) & the most influential retailers / renowned brands (e.g. GAP, H&M, & Ralph Lauren childrenswear…).
• SafGuard is Patented (No. 2005200005331.0).

SPECIFICATION OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

ACCESSORIES OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

OPTIONAL ACCESSORIES OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

STANDARD REFERENCE OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

• BV, JAPAN Product Liability Law,
• ASTM F963, EN 71, M&S P115A (for snap),
• P115 (for button),
• ASTM D4846-96 many others.

TEST INTERPRETATION OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

There are lots of different test interpretations. Take snaps as an example. All snaps are usually tested to withstand attachment strength of 17 pounds (or 7.73 kg) for 10 seconds. If not, it is deemed to be mechanically unsafe unless it is not a small part & there is no sharp edge/point

APPROVED & ADOPTED BY SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

• World leading retailers / renowned brands: e.g. GAP, H&M, LEVI’S, M&S, NEXT, VF & Ralph Lauren, etc.
• World leading textile testing labs: e.g. BV, CTL, INTERTEK, SGS, STR, TUV, etc.

PACKING INFO OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)

VIDEO REVIEW OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)
