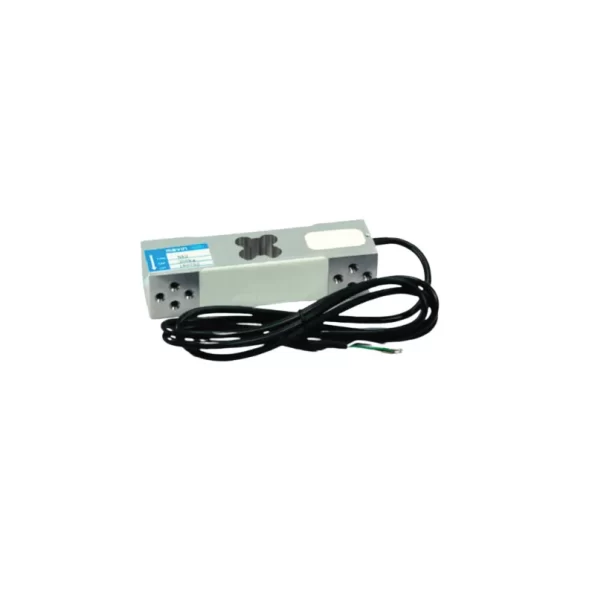

MAVIN 350KG Single Point Load Cell

The NA2 is a compact, low to medium capacity aluminum single point load cell ideal for a wide range of weighing scales. The Aluminum Weighing sensor is suitable for retail scales, bench scales. environmentally sealed with potting compound to ensure durability.

FEATURES OF MAVIN 350KG SINGLE POINT LOAD CELL

SPECIFICATION OF MAVIN 350KG SINGLE POINT LOAD CELL

Name	Details
Model
Brand	SUJA GLOBAL
Origin	Singapore
Rated Capacities	60,100,150,200,300,350,500（kg)
Rated Output	2.0 mV/V±0.25%
Zero Balance	±0.0200 mV/V
Non-linearity	0.02 %R.O.
Hysteresis	0.02 %R.O.
Repeatability	0.02 %R.O.
30mins Creep	0.02 %R.O.
30mins Return	0.02 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.002 %R.O./℃
Temperature Effect On Zero	0.003 %R.O./℃
Input Impedance	385±15 Ω
Output Impedance	350±5 Ω
Insulation Impedance	≥5000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Steel Alloy; Stainless Steel
Protection Class	IP66 / IP68
Cable	φ5×3m
Recommended Platform Size
Mode of Connection	Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
