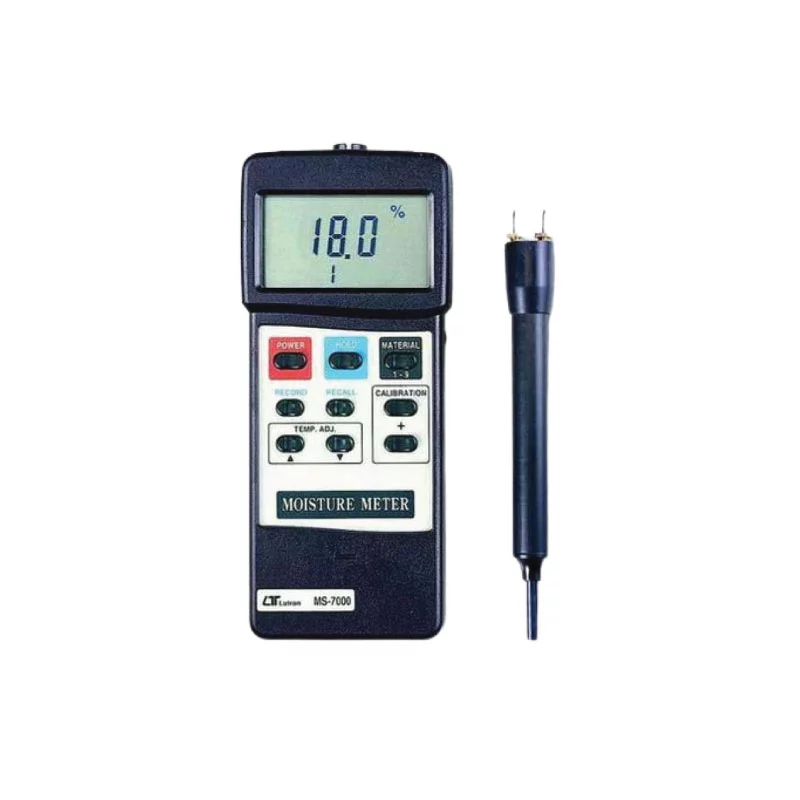

Lutron Wood Moisture Meter (MS-7000)
- Sampling Time Approx. 0.8 second.
- Data Output RS 232 PC serial interface.
- Operating Temperature 0 to 50 .
- Operating Humidity. Less than 80% R.H.
Lutron MS-7000 Digital Moisture Meter (Measuring Range 9 to 30%) dealers, your search ends here as you can get the best Lutron MS-7000 Digital Moisture Meter Deliver to all over Bangladesh. If you are bothered about the Lutron MS-7000 Digital Moisture Meter (Measuring Range 9 to 30%) prices, you can be totally sure to get the best rates as Industrybuying brings you genuine Lutron MS-7000 Digital Moisture Meter (Measuring Range 9 to 30%) rates and quality assured products only from the best of brands with exclusive.
FEATURES OF LUTRON WOOD MOISTURE METER (MS-7000)
- Applications For surveying buildings for dampness and for the rapid determination of the moisture content of wood/timber.
- Principal Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % ” Moisture of Content “.
- Default Memory for the species 9 material species groups in memory, calibrations for about 150 different species of wood are provided.
- Circuit Custom one-chip of microprocessor LSI circuit.
- Display 13 mm ( 0.5″ ) super large LCD display, dual function meter’s display.
- Measurement Measure moisture content over range 9 % to 30 %.
- Probe Separate 2 pins moisture electrode.
Temperature Compensation Manual temperature compensation of the meter in the range of 0 to 50 . - Calibration Built-in self-calibration circuit by push button on front panel.
- Data Hold By push button on front panel.
- Memory Recall Records Maximum & Minimum reading value.
- Power off Auto shut off, saves battery life, or manual off by push button.
- Sampling Time Approx. 0.8 second.
- Data Output RS 232 PC serial interface.
- Operating Temperature 0 to 50 .
- Operating Humidity. Less than 80% R.H.
- Power Supply 006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery.
- Power Current Approx. DC 6.5 mA.
- Weight 330 g/0.73 LB.
SPECIFICATION OF LUTRON WOOD MOISTURE METER (MS-7000)
| Name | Details |
| Model | MS-7000 |
| Brand | Lutron |
| Origin | Taiwan |
| Applications | For surveying buildings for dampness and for the rapid determination of the moisture content of wood/timber. |
| Principal | Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % ” Moisture of Content “. |
| Default Memory for the species | 9 material species groups in memory, calibrations for about 150 different species of wood are provided. |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
| Display | 13 mm ( 0.5″ ) super large LCD display, dual function meter’s display. |
| Measurement | Measure moisture content over range 9 % to 30 %. |
| Probe | Separate 2 pins moisture electrode. |
| Temperature Compensation | Manual temperature compensation of the meter in the range of 0 to 50 . |
| Calibration | Built-in self-calibration circuit by push button on front panel. |
| Data Hold | By push button on front panel. |
| Memory Recall | Records Maximum & Minimum reading value. |
| Power off | Auto shut off, saves battery life, or manual off by push button. |
| Sampling Time | Approx. 0.8 second. |
| Data Output | RS 232 PC serial interface. |
| Operating Temperature | 0 to 50 . |
| Operating Humidity. | Less than 80% R.H. |
| Power Supply | 006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery. |
| Power Current | Approx. DC 6.5 mA. |
| Weight | 330 g/0.73 LB |
| Dimension | Main instrument: 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ). Moisture Probe: Round 23 mm Dia. x 165 mm. Round 0.9 inch Dia. x 6.5 inch. |
| Accessories Included | Instruction anual……………………………………………………….1 PC. Moisture probe…………………………………………………………….1 PC. Extra contact pins…………………………………………………………1 SET. Hard Carrying Case……………………………………………………… 1 PC. |
PACKING INFORMATION OF LUTRON WOOD MOISTURE METER (MS-7000)
VIDEO REVIEW OF LUTRON WOOD MOISTURE METER (MS-7000)
