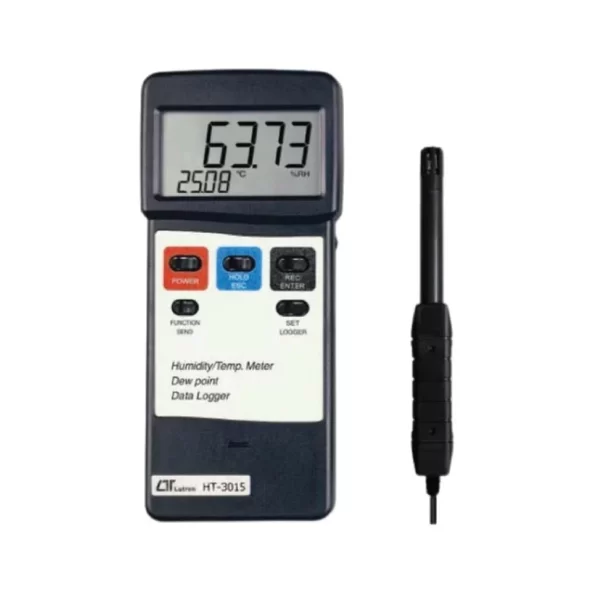

Lutron Humidity Temperature Meter (HT-3015)
- Humidity : %RH ( Relative Humidity )
- Temperature: ℃ or ℉.
- Dew point: ℃ or ℉.
- Response Time 5 to 30 seconds typically.
Lutron HT-3015 is a Dew Point Humidity Meter. it has 0.01 %RH resolution for the humidity reading, and 0.01-degree resolution for the humidity reading. it has fast humidity measuring response time.
FEATURES OF LUTRON HUMIDITY TEMPERATURE METER (HT-3015)
- Display LCD size : 61 mm x 35 mm dual function LCD display.
- Humidity : %RH ( Relative Humidity )
- Temperature: ℃ or ℉.
- Dew point: ℃ or ℉.
- Response Time 5 to 30 seconds typically.
- Data Hold Freeze the display reading.
- Memory Recall Maximum & Minimum value.
- Sampling Time Approx. 0.8 second.
- Sampling Time Approx. 0.8 second.
- Power off Auto shut off saves battery life or manual off by push button.
- Data Output RS 232 PC serial interface.
- Operating Temperature 0 to 50 .
- Operating Humidity Main instrument : Less than 85% R.H.
- Probe : 0 to 95 %RH
- Power Supply 006P DC 9V battery
- Power Current Approx. DC 4.6 mA.
- Weight 306 g/0.67 LB. @ Battery is included.
- Temperature Compensation Automatic temp. compensation for the humidity function.
SPECIFICATION OF LUTRON HUMIDITY TEMPERATURE METER (HT-3015)
| Name | Details |
| Model | HT-3015 |
| Brand | Lutron |
| Origin | Taiwan |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
| Display | LCD size : 61 mm x 35 mmdual function LCD display. |
| Measurement Unit | Humidity : %RH ( Relative Humidity ) Temperature: ℃ or ℉. Dew point: ℃ or ℉. |
| Response Time | 5 to 30 seconds typically. @ Reach the 85% reading value. |
| Temperature Compensation | Automatic temp. compensation for the humidity function. |
| Sampling Time of Data Logger | Manual: Push the data logger button once will save data one time Auto: 1, 2, 10, 30, 60, 600, 1800, Remark : 3600 seconds. |
| Data Hold | Freeze the display reading. |
| Memory Recall | Maximum & Minimum value. |
| Sampling Time | Approx. 0.8 second. |
| Sampling Time | Approx. 0.8 second. |
| Power off | Auto shut off saves battery life or manual off by push button. |
| Data Output | RS 232 PC serial interface. |
| Operating Temperature | 0 to 50 . |
| Operating Humidity | Main instrument : Less than 85% R.H. Probe : 0 to 95 %RH |
| Power Supply | 006P DC 9V battery ( Alkaline or Heavy duty type ). |
| Power Current | Approx. DC 4.6 mA. |
| Weight | 306 g/0.67 LB. @ Battery is included. |
| Dimension | Main instrument : 180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch) Humidity Sensor Probe : 197 mm ( 7.8 inch ) in length. |
| Accessories Included | Instruction manual……………………1 PC Humidity probe………………………..1 PC Carrying case…………………………..1 PC |
| Optional Accessories | RS232 cable/UPCB-01, USB cable/USB-01 Data Acquisitio software, SW-U801-WIN Data Logger software, SW-DL2005 |
