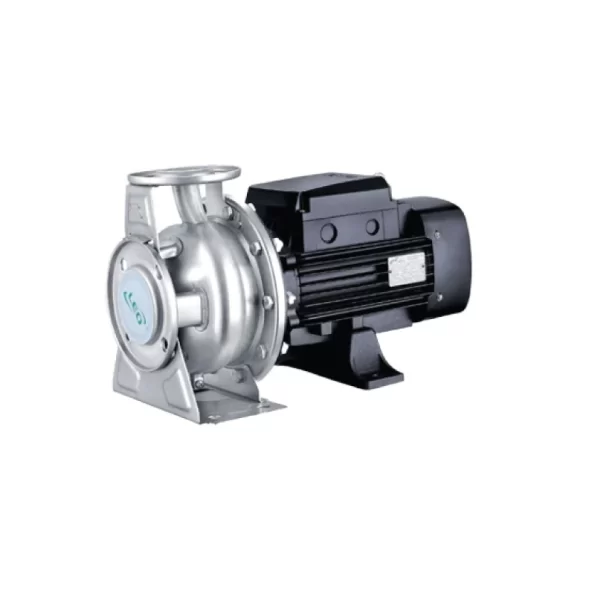

LEO XZS Stainless Steel Centrifugal Pumps (XZS50-32-200/30)
- Liquid temperature: -15°C – +80°C
- Flow range: 0.7 – 132 m³/h
- Head range: 9 – 58 m
- Ambient temperature range: -15°C – + 40°C
Water supply filtration and transfer at waterworks, regional water supply and pressure boosting in main pipe. Industrial pressure boosting Water system, cleaning system. Industrial water supply boiler feeding, cooling system, air conditioning, transportation of light acid and alkali liquid. Water treatment distillation systems, separators, swimming pools. Use it Agricultural irrigation, petrochemical industry, medicine and sanitation, etc.
FEATURES OF LEO XZS STAINLESS STEEL CENTRIFUGAL PUMPS (XZS50-32-200/30)
- Thin, clean, non-flammable and explosive, not containing the liquid with solid particles and fibers
- Liquid temperature: -15°C – +80°C
- Flow range: 0.7 – 132 m³/h
- Head range: 9 – 58 m
- Ambient temperature range: -15°C – + 40°C
- Max. operation: 10 bar
- Altitude: up to 1000 m
- Liquid PH valve: 3 – 9
- Max. ambient temperature: +40°C
- IE 2 motor (IE 3 motor optional)
- Totally enclosed & fan-cooled
- Protection class: IP55
- Insulation class: F
SPECIFICATION OF LEO XZS STAINLESS STEEL CENTRIFUGAL PUMPS (XZS50-32-200/30)
| Name | Details |
| Model | XZS50-32-200/30 |
| Brand | LEO |
| Origin | China |
| Liquid Temperature | 15 ~ +80℃ |
| Flow Range | 0.7 ~132 m3/h |
| Head Range | 9 ~58 m |
| Ambient Temperature | 15 ~ +40℃ |
| Max. Operation Pressure | 33 bar |
| Altitude | up to 1000 m |
