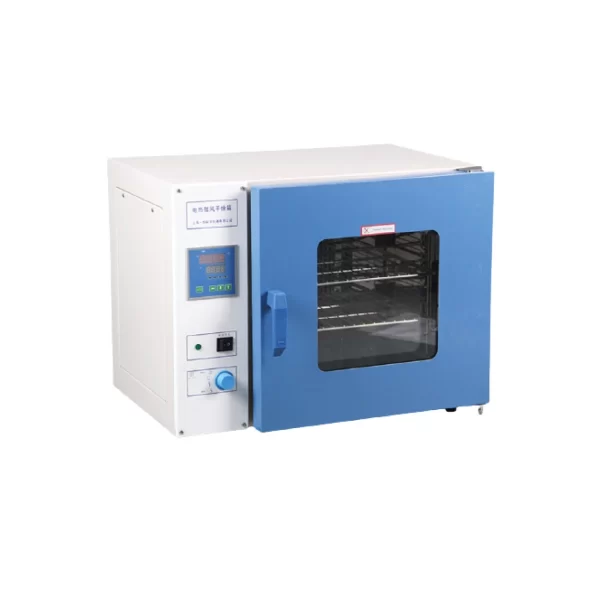

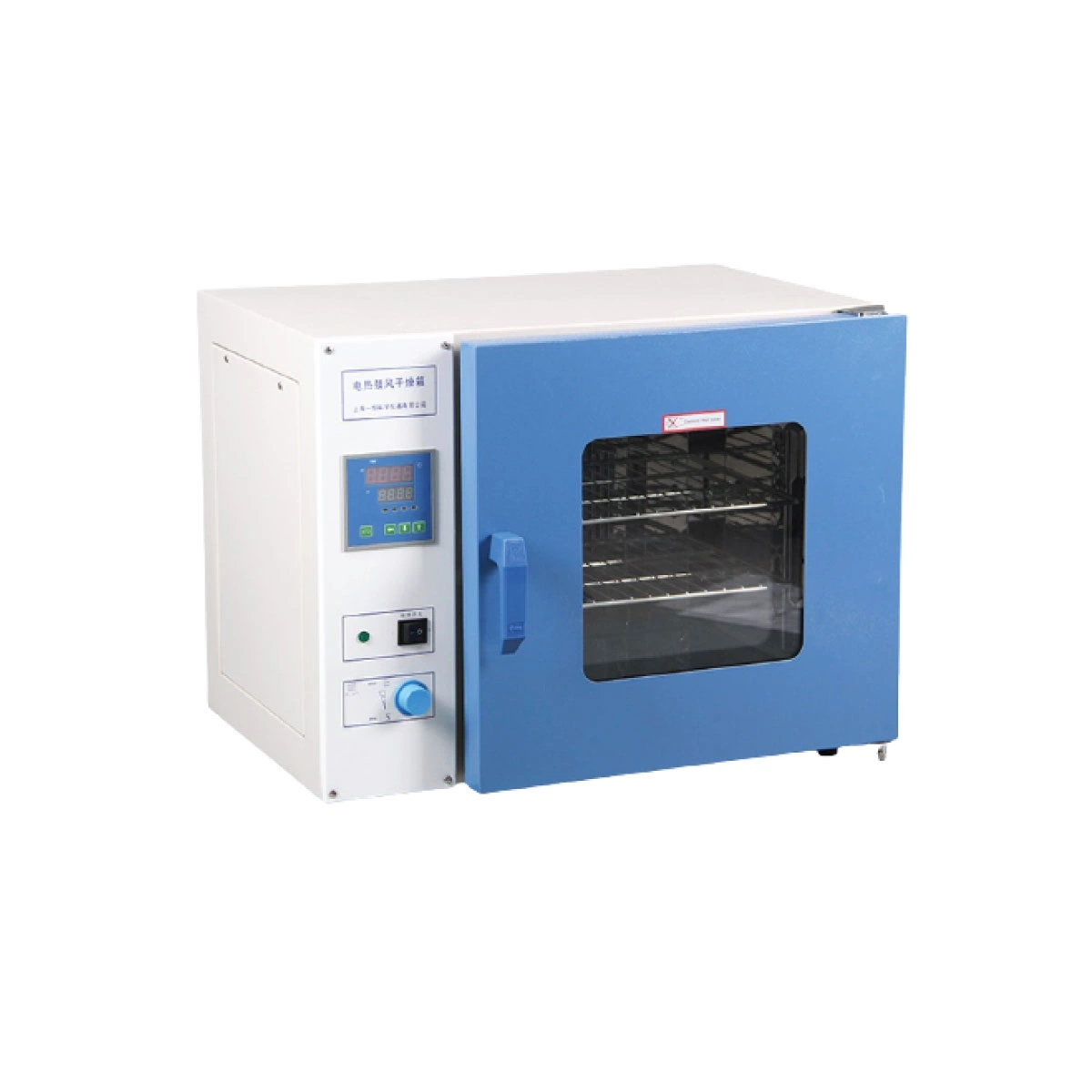

Laboratory Air Dry Oven (DHG-9030A)
- Temperature fluctuation ±1°C.
- Temperature Resolution 0.1°C.
- Temperature Uniformity ±3%(At 100°C).
- Temperature range RT+10~200 °C / RT+10~250 °C.
Hinotek Laboratory Air Dry Oven (DHG-9030A) is applicable for drying, cure, melting and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
FEATURES OF HINOTEK LABORATORY AIR DRY OVEN (DHG-9030A)
1. Interior of oven is made of specular stainless steel by argon-arc-welding technics, and the exterior of oven is made of high-quality steel sheet with a beautiful and novel appearance.
2. It adopts temperature control protection, digital display, microcomputer PID temperature controller with timer function to ensure precise and reliable temperature control.
3. Hot air circulation system is composed of blower fan and proper air channels, which is capable of continuous operation under high temperature.Improve the uniformity of the temperature inside the working chamber.
4. New-style Silicon gasket ensure long-life under high temprature, and easy to replace.
5. Can adjust blast and exhaust in control panel.
6. Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.(Option)
7. Recorder and printer are options which can print or record setting parameters and trace variational curves of temperature(4~20mA standardsignal).(Option)
OPTIONAL ACCESSORIES OF HINOTEK LABORATORY AIR DRY OVEN (DHG-9030A)
1. Intelligent program temperature control–LCD Display.
2. Independence temperature limited alarm system.
3. RS484 connector and communication software.
4. Control board and printer (Build-In or Independence printer)
5. Test Hole(Dimension 25mm)
6. U disk data store
7. Wireless Alarm System (Message Alarm system)
SPECIFICATION OF HINOTEK LABORATORY AIR DRY OVEN (DHG-9030A)
| Name | Details |
| Model | DHG-9030A |
| Brand | Hinotek |
| Origin | China |
| Power | 220V 50HZ (110V 60HZ option) |
| Temerature range | RT+10~200 °C / RT+10~250 °C |
| Temperature fluctuation | ±1°C |
| Temperature Resolution | 0.1°C |
| Temperature Uniformity | ±3%(At 100°C) |
| Operation RT | +5~40°C |
| Input Power | 850W |
| Capacity | 30L |
| Chamber Dimension | 340*320 *320 |
| Extermal Dimension (mm) | 620*530 *490 |
| Shelves Per Chamber | 2 Piece |
| Time L°Cating Range | 1 ~ 9999Min |
PACKING INFORMATION OF HINOTEK LABORATORY AIR DRY OVEN (DHG-9030A)
VIDEO REVIEW OF HINOTEK LABORATORY AIR DRY OVEN (DHG-9030A)
