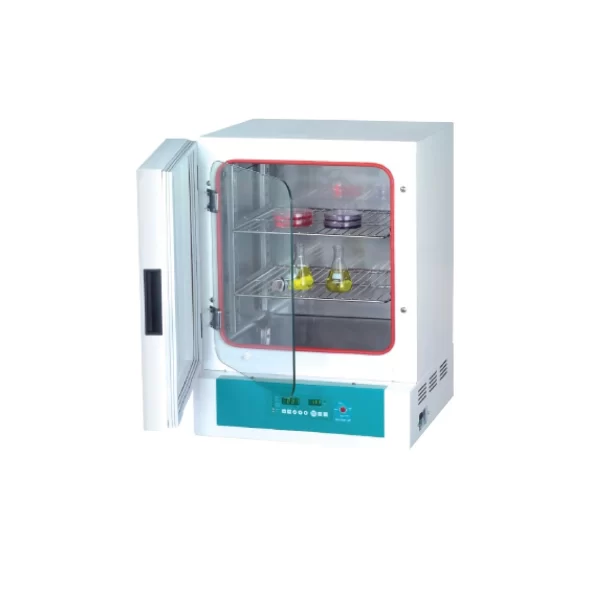

JeioTech Incubator (IB-05G)
- Range Amb. +5 to 70 / Amb. +9 to 158 (℃ / ℉)
- Fluctuation 1) 0.1 / 0.18 37℃ (±℃ / ℉)
- Variation 1) at 37℃ 0.6 / 1.08 (±℃ / ℉)
- Electrical 1.3A (230V, 50 / 60Hz)
IB-G series are the most useful incubators for general purpose which manufactured equipped air-jacketed convection style for excellent uniformity without outside air disturbances.
FEATURES OF JEIOTECH INCUBATOR (IB-05G)
- Temperature range from ambient +5°C to 70°C.
- Microprocessor PID control / Temperature calibration / Automatic tuning.
- Vibration-free design ideal for yeast cultivation.
- – Air-jacked natural convection is beneficial for Uniform temperature distribution and minimal sample contamination caused by external air intrusion.
- Durable incoloy heating element with radiator fans for efficient heat dissipation.
CONVENIENCE OF JEIOTECH INCUBATOR (IB-05G)
- Intuitive control panel with bright LED display. (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings.
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Corrosion-resistant stainless steel interior with rounded corners for easy cleaning and optimal airflow.
- Fully insulated dual-wall door with magnetic rubber gasket.
- Built-in cable port to use other instruments inside the chamber. (diameter: 38mm)
- RS-232 interface for external control and data collection.
- Stackable up to 2 units using the optional stacking kit. (optional)
SAFETY OF JEIOTECH INCUBATOR (IB-05G)
- Automatic run after power interruption.
- Keypad lock function prevents accidental changes during operation.
- Over-temperature and over-current protection.
- Audible and visible open door alarms.
SPECIFICATION OF JEIOTECH INCUBATOR (IB-05G)
| Name | Details |
| Model | IB-05G |
| Brand | JeioTech |
| Origin | South Korea |
| Temperature | Range Amb. +5 to 70 / Amb. +9 to 158 (℃ / ℉) Fluctuation 1) 0.1 / 0.18 37℃ (±℃ / ℉) Variation 1) at 37℃ 0.6 / 1.08 (±℃ / ℉) |
| Dimension(W×D×H) | Interior 400×360×420/ 15.7×14.2×16.5 (mm / inch) Exterior 595×555×745/ 23×22×29 (mm / inch) No. of wire shelf 2 / 7 (standard / max.) Net weight 45 / 99 (Kg / lbs) |
| Electrical Requirements | 1.3A (230V, 50 / 60Hz) |
| Cat. No. | AAH21162K |
| Electrical requirements | 2.8A (120V, 50 / 60Hz) |
PACKING INFORMATION OF JEIOTECH INCUBATOR (IB-05G)
VIDEO REVIEW OF JEIOTECH INCUBATOR (IB-05G)
