JamesHeal Crockmeter (680)
- Fuse 5A Anti-Surge Fuse
- Speed 60 r.p.m. and 15 r.p.m.
- Power 150 watts, 0.7 amps at 230V or 1.4 amps at 115V
- Weight 17.3 kg (including 22N weight piece)

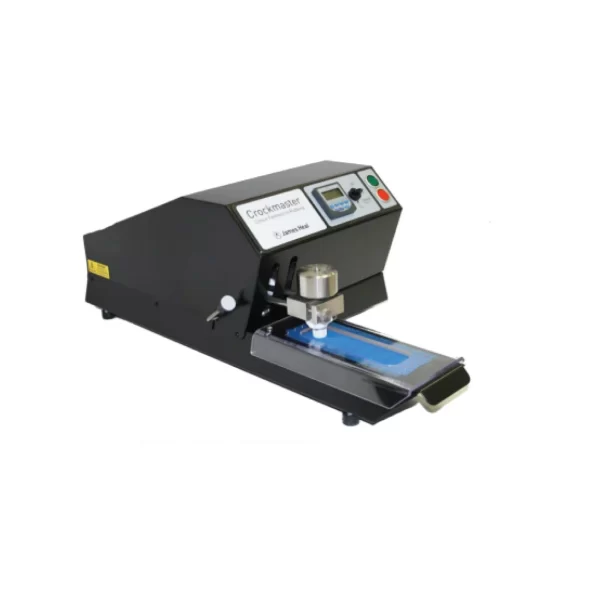

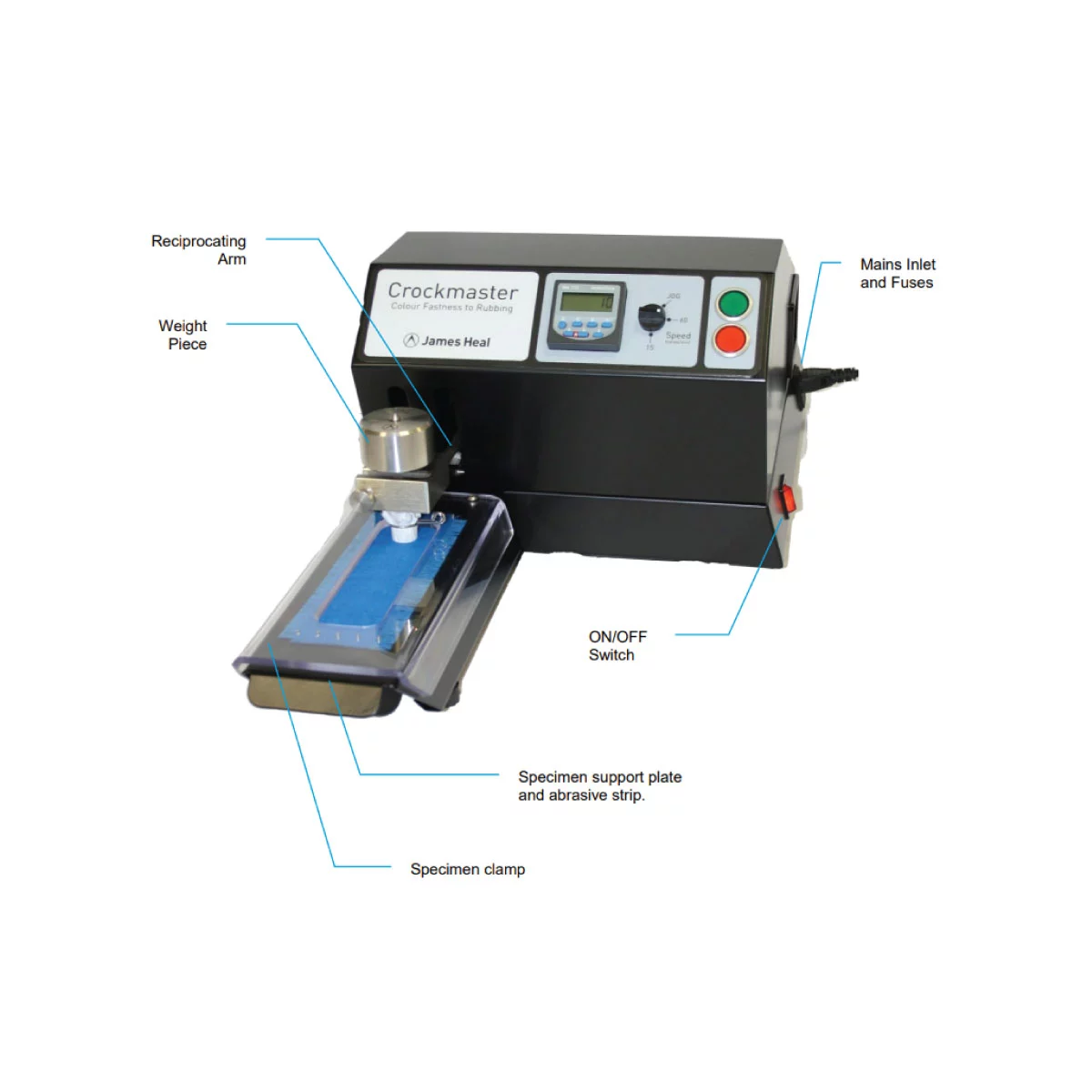

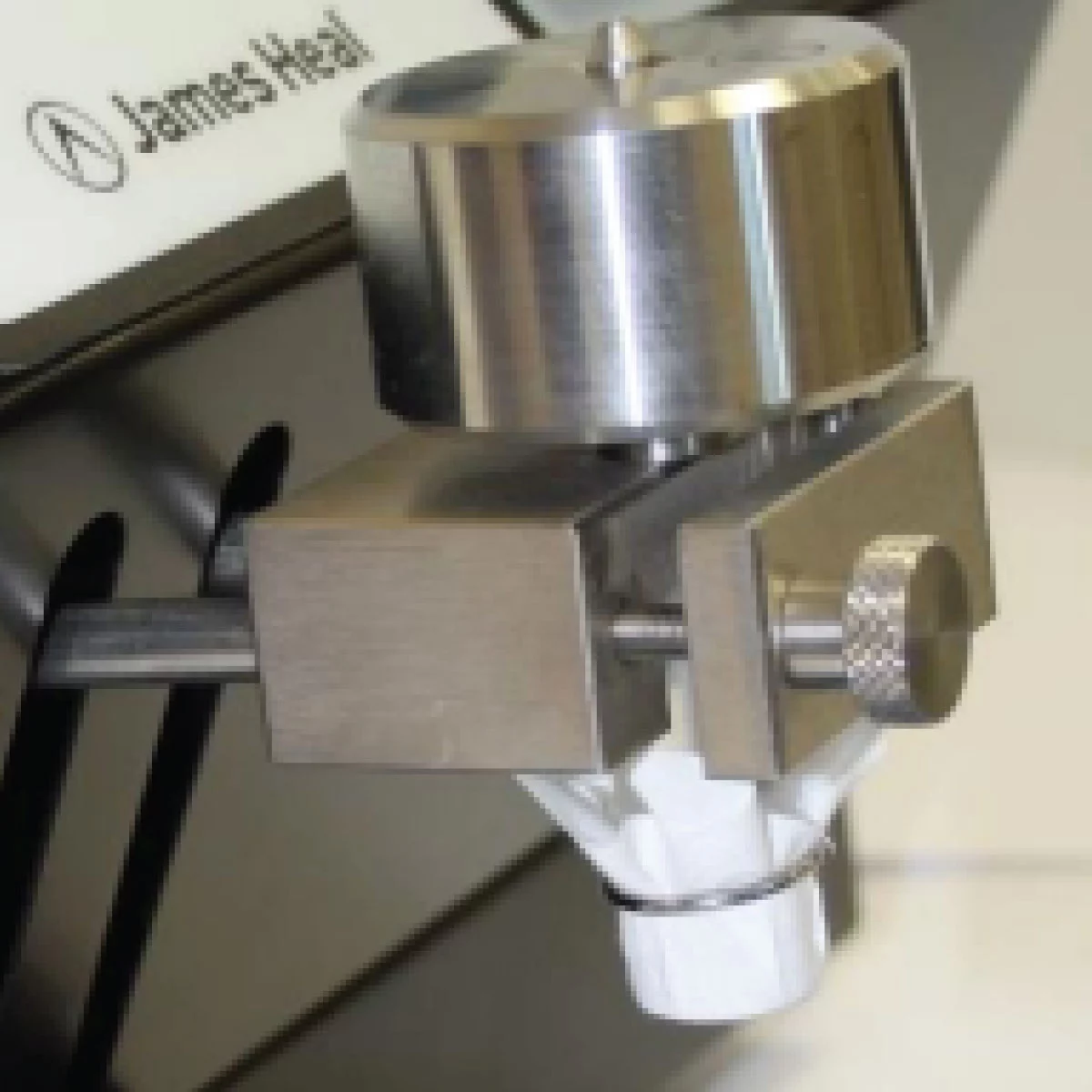

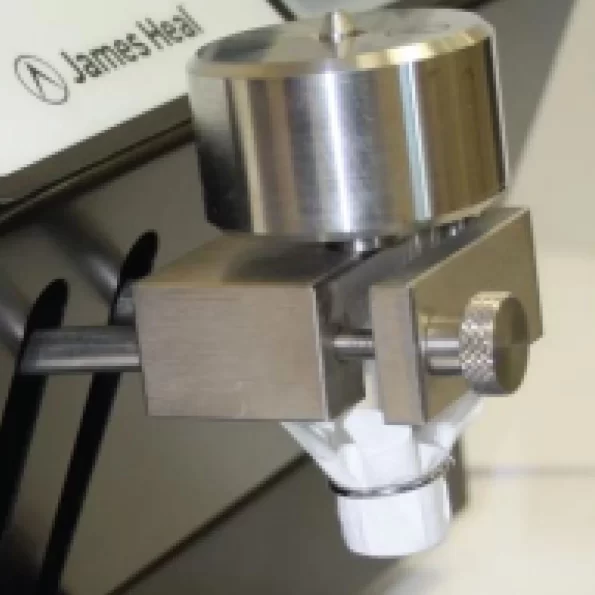

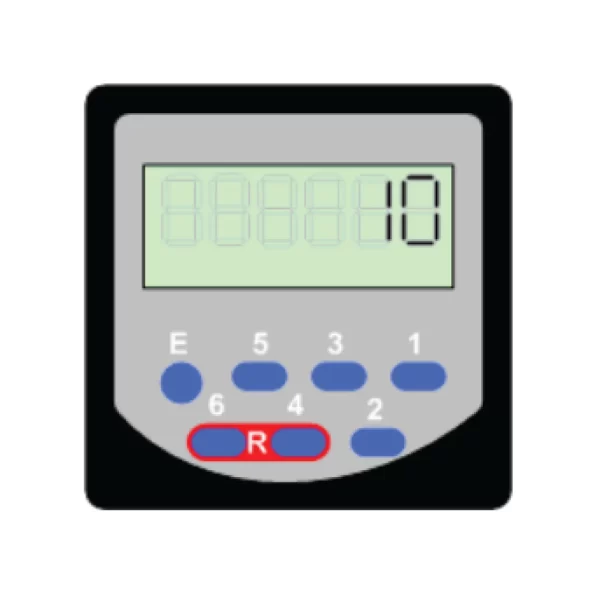

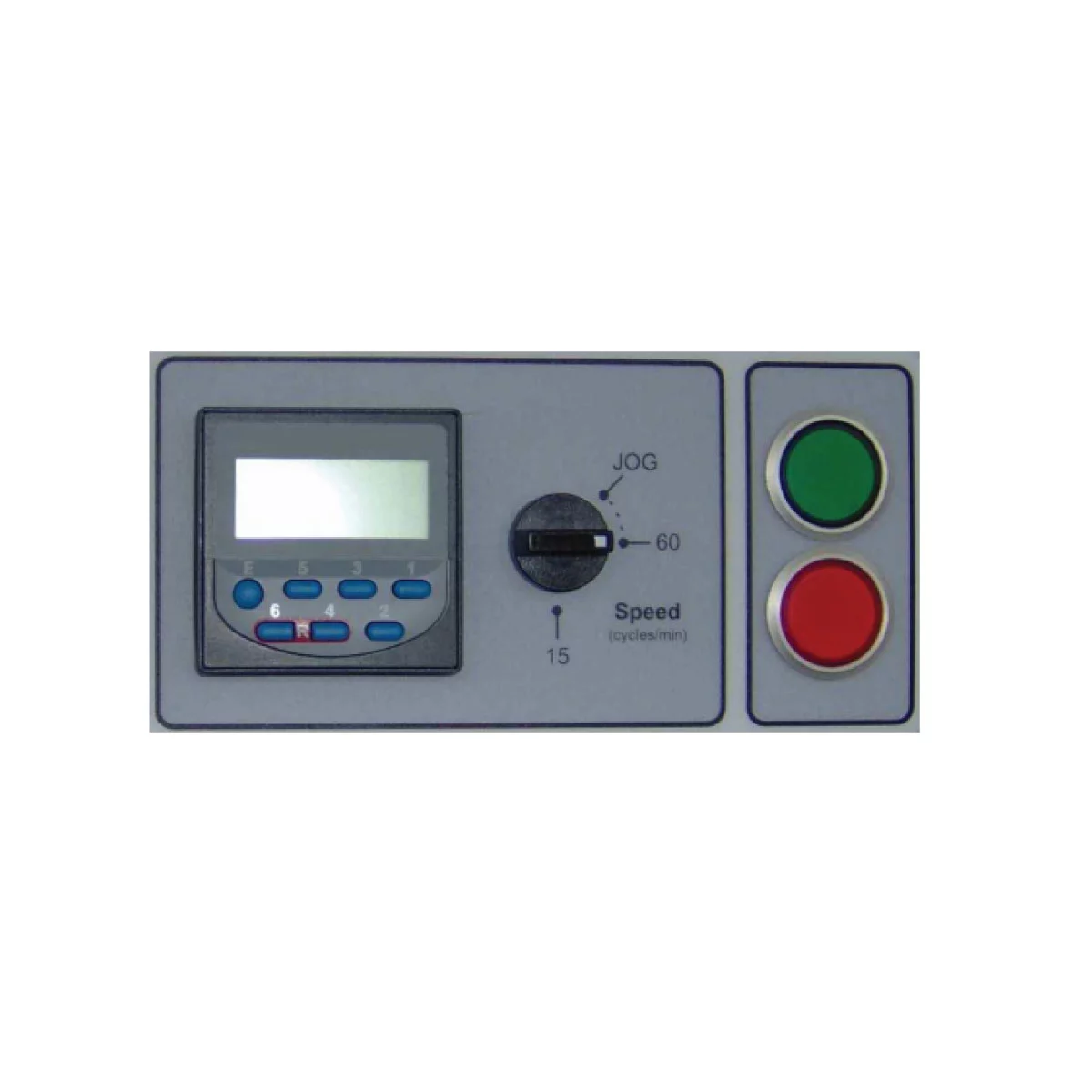

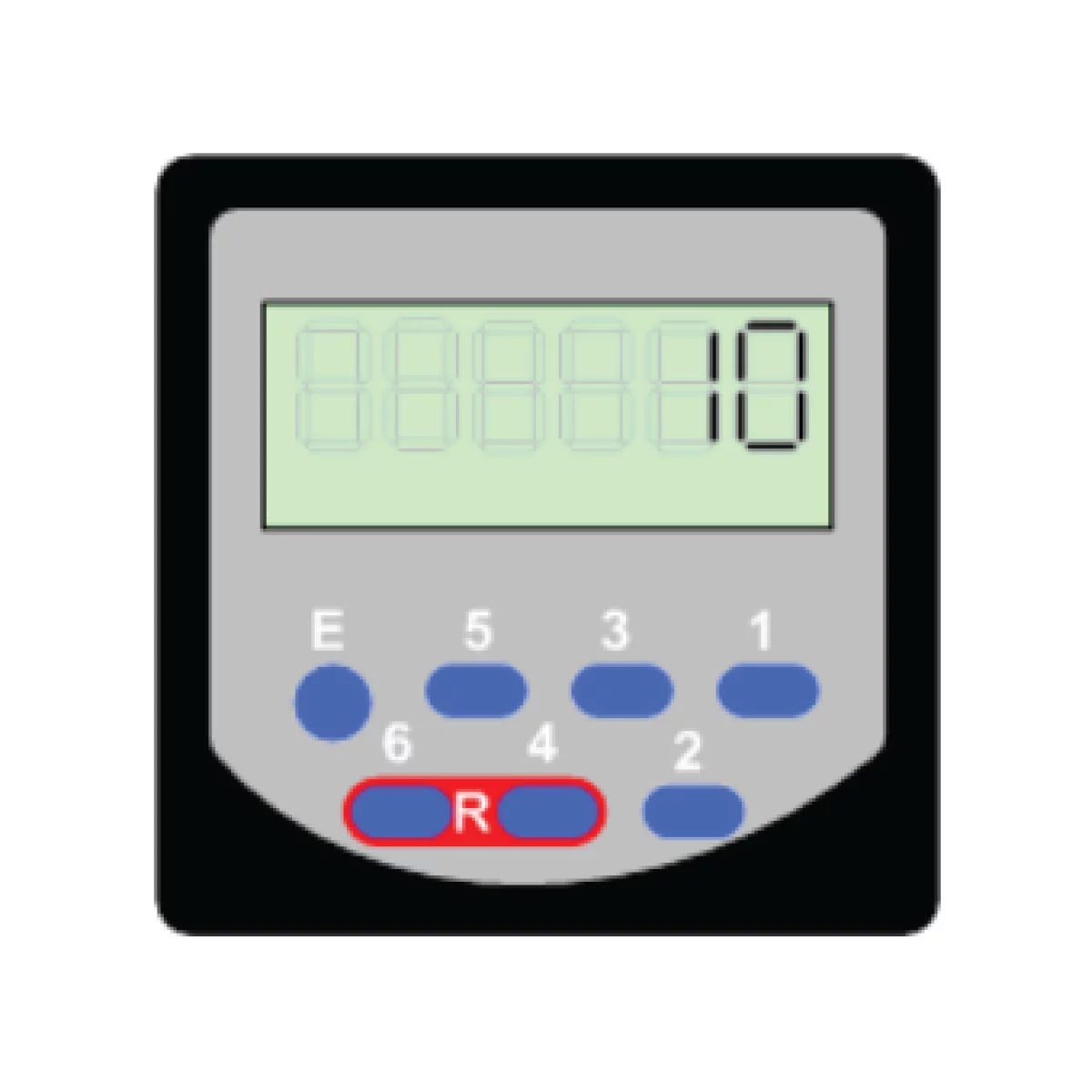

The smooth precision-engineered mechanism of the CrockMaster provides an accurate reciprocating straight line rubbing motion, with guaranteed accuracy of down force and stroke, to meet the exacting demands for testing colour fastness to rubbing of textile materials. The combined effective gripping of the easy-to-use polycarbonate specimen clamp and synthetic abrasive paper, makes CrockMaster applicable to textiles made from all fibres, in the form of yarn or fabric, whether dyed, printed or otherwise coloured. The operation is assisted by a built-in digital counter to record the number of rubs performed. Two alternative sizes of interchangeable rubbing fingers are available together with an interchangeable token holder to facilitate a number of test standards to be accommodated.
FEATURES OF JAMES HEAL CROCKMETER (680)
- Fuse 5A Anti-Surge Fuse
- Speed 60 r.p.m. and 15 r.p.m.
- Power 150 watts, 0.7 amps at 230V or 1.4 amps at 115V
- Weight 17.3 kg (including 22N weight piece)
- Dimensions 660mm (w) x 320mm (L) x 230mm (H)
SPECIFICATION OF JAMES HEAL CROCKMETER (680)
| Name | Details |
| Model | 680 |
| Brand | JamesHeal |
| Origin | England |
| Fuse | 5A Anti-Surge Fuse |
| Speed | 60 r.p.m. and 15 r.p.m. |
| Power | 150 watts, 0.7 amps at 230V or 1.4 amps at 115V |
| Weight | 17.3 kg (including 22N weight piece) |
| Dimensions | 660mm (width) x 320mm (depth) x 230mm (height) |
STANDARDS OF JAMES HEAL CROCKMETER (680)
| Name |
|---|
| AATCC 165 |
| AATCC 8 |
| ASTM F1319 |
| BS 2543 |
| BS 4655 |
| EN ISO 105-D02 |
| Marks & Spencer C8 |
| Next TM06 |
PACKING INFORMATION OF JAMES HEAL CROCKMETER (680)
VIDEO REVIEW OF JAMES HEAL CROCKMETER (680)
