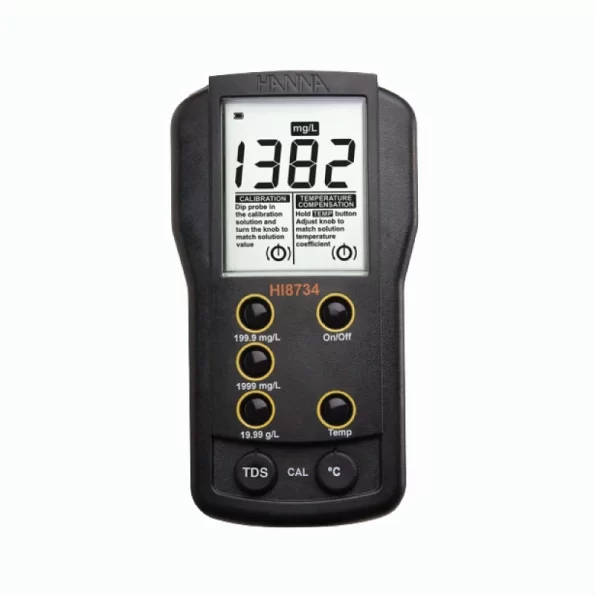

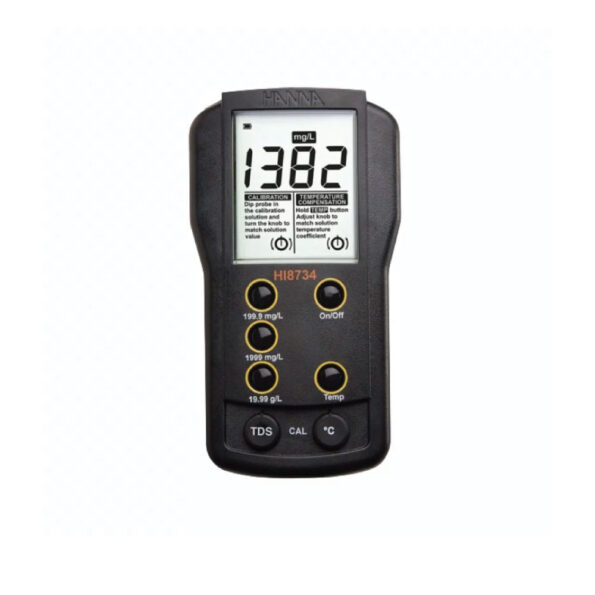

Hanna Three Range Portable TDS Meter (HI8734)
- TDS Accuracy ±1% FS .
- TDS Range 0.0 to 199.9 mg/L (ppm).
- TDS Resolution 0.1 mg/L (ppm).
- TDS Calibration manual, one-point through TDS knob.
The HI8734 is a rugged, portable TDS meter designed for the water conditioning industry, particularly in the softening, demineralization, reverse osmosis, and drinking water applicaitons. It can also be used for a wide variety of environmental conditions. TDS readings are adjusted with manual temperature compensation, assuring users of consistent and accurate measurements of total dissolved solids.
FEATURES OF HANNA THREE RANGE PORTABLE TDS METER (HI8734)
- TDS Range 0.0 to 199.9 mg/L (ppm); 0 to 1999 mg/L (ppm); 0.00 to 19.99 g/L (ppt).
- TDS Resolution 0.1 mg/L (ppm); 1 mg/L (ppm); 0.01 g/L (ppt).
- TDS Accuracy ±1% FS (excluding probe error).
- TDS Calibration manual, one-point through TDS knob.
- EC/TDS Temperature Compensation manual from 0 to 50°C (32 to 122°F) with β = 2%/°C.
- EC to TDS Conversion Factor 0.5.
- EC/TDS Probe HI76301D four ring conductivity probe with DIN connector and 1 m (3.3’) cable (included).
- Battery Type/Life 9V / approximately 100 hours of continuous use.
- Environment 0 to 50°C (32 to 122°F); RH max 95%.
- Dimensions 145 x 80 x 36 mm (5.7 x 3.1 x 1.4”).
- Weight 230 g (8.1 oz).
- Ordering Information HI8734 is supplied with HI76301D. conductivity probe, HI70032 1382 mg/L (ppm) calibration solution sachet, battery, and instruction manual.
SPECIFICATION OF HANNA THREE RANGE PORTABLE TDS METER (HI8734)
| Name | Details |
|---|---|
| Model | HI8734 |
| Brand | Hanna |
| Origin | Romania |
| Product Name | Three Range Portable TDS Meter – HI8734 |
| Quote Required | Yes |
| TDS Range | 0.0 to 199.9 mg/L (ppm); 0 to 1999 mg/L (ppm); 0.00 to 19.99 g/L (ppt) |
| TDS Resolution | 0.1 mg/L (ppm); 1 mg/L (ppm); 0.01 g/L (ppt) |
| TDS Accuracy | ±1% FS (excluding probe error) |
| TDS Calibration | manual, one-point through TDS knob |
| EC/TDS Temperature Compensation | manual from 0 to 50°C (32 to 122°F) with β = 2%/°C |
| EC to TDS Conversion Factor | 0.5 |
| EC/TDS Probe | HI76301D four ring conductivity probe with DIN connector and 1 m (3.3’) cable (included) |
| Battery Type/Life | 9V / approximately 100 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% |
| Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4”) |
| Weight | 230 g (8.1 oz) |
| Ordering Information | HI8734 is supplied with HI76301D conductivity probe, HI70032 1382 mg/L (ppm) calibration solution sachet, battery, and instruction manual. |
PACKING INFORMATION OF HANNA THREE RANGE PORTABLE TDS METER (HI8734)
VIDEO REVIEW OF HANNA THREE RANGE PORTABLE TDS METER (HI8734)
