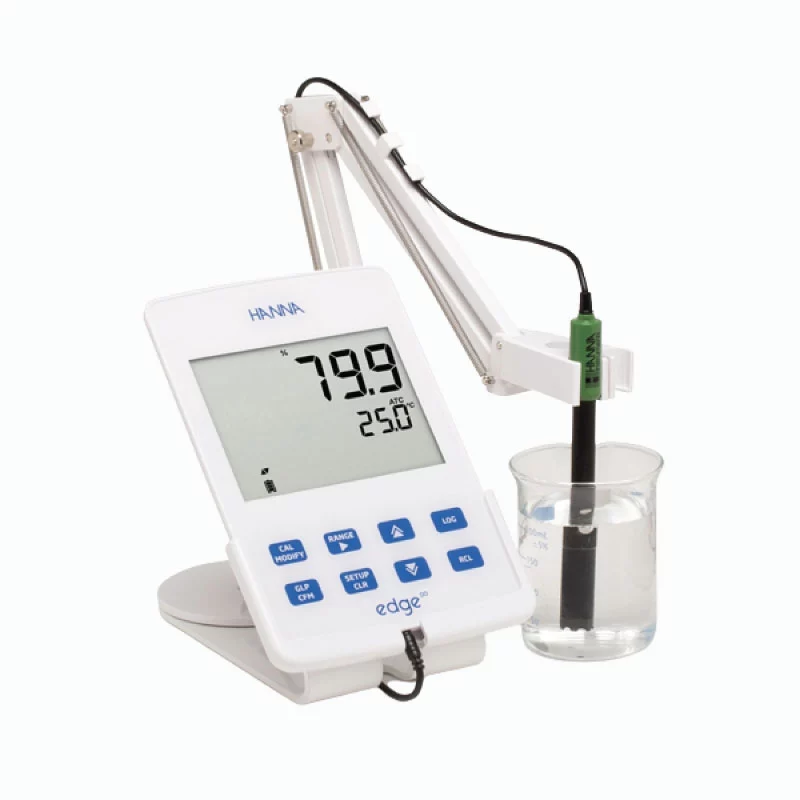

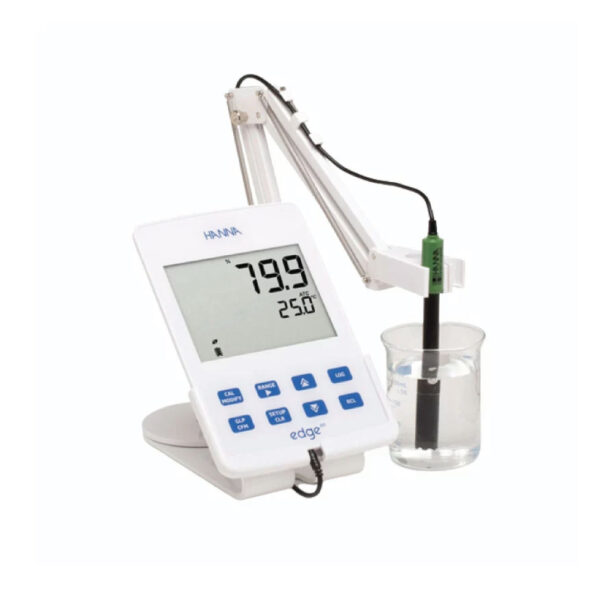

Hanna Edge® Dedicated Dissolved Oxygen Meter (HI2004)
- Temperature Range -20.0 to 120.0 ºC ; -4.0 to 248.0 °F**.
- Temperature Resolution 0.1 ºC; 0.1 ºF.
- Temperature Accuracy ±0.5 °C, ±0.9 °F.
- DO Probe HI764080 (included).
Hanna Instruments is proud to introduce the world’s most innovative DO meter: edge®. edge’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world-class R&D. edge® is a single meter that can measure Dissolved Oxygen and is incredibly easy to use.
FEATURES OF HANNA EDGE® DEDICATED DISSOLVED OXYGEN METER (HI2004)
- Dissolved Oxygen Measurement Type polarographic.
- Dissolved Oxygen Range 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation.
- Dissolved Oxygen Resolution 0.01 ppm (mg/L); 0.1% saturation.
- Dissolved Oxygen Accuracy ±1 digit; ±1.5% of reading.
- Dissolved Oxygen Calibration one or two points at 0% (HI 7040 solution) and 100% (in air).
- Dissolved Oxygen Temperature Compensation ATC.
- Salinity Compensation 0 to 40 g/L (witd 1 g/L resolution).
- Altitude Compensation -500 to 4000 m (witd 100 m resolution).
- Temperature Range -20.0 to 120.0 ºC ; -4.0 to 248.0 °F**.
- Temperature Resolution 0.1 ºC; 0.1 ºF.
- Temperature Accuracy ±0.5 °C, ±0.9 °F.
- DO Probe HI764080 (included).
- Logging Memory up to 1000*** records.
- Connectivity 1 micro USB port for charging and PC connectivity, 1 USB port for storage.
- Battery Type/Life Built-in rechargeable battery witd up to 8 hours of continuous use.
- Power Supply 5 VDC adapter (included).
- Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing.
- Dimensions 202 x 140 x 12.7mm (8” x 5.5” x 0.5”).
- Weight 250 g (8.82 oz).
SPECIFICATION OF HANNA EDGE® DEDICATED DISSOLVED OXYGEN METER (HI2004)
| Name | Details |
| Model | HI2004 |
| Brand | Hanna |
| Origin | Romania |
| Product Name | edge® Dedicated Dissolved Oxygen Meter – HI2004 |
| Quote Required | Yes |
| Dissolved Oxygen Measurement Type | polarographic |
| Dissolved Oxygen Range | 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation |
| Dissolved Oxygen Resolution | 0.01 ppm (mg/L); 0.1% saturation |
| Dissolved Oxygen Accuracy | ±1 digit; ±1.5% of reading |
| Dissolved Oxygen Calibration | one or two points at 0% (HI 7040 solution) and 100% (in air) |
| Dissolved Oxygen Temperature Compensation | ATC |
| Salinity Compensation | 0 to 40 g/L (witd 1 g/L resolution) |
| Altitude Compensation | -500 to 4000 m (witd 100 m resolution) |
| Temperature Range | -20.0 to 120.0 ºC ; -4.0 to 248.0 °F** |
| Temperature Resolution | 0.1 ºC; 0.1 ºF |
| Temperature Accuracy | ±0.5 °C, ±0.9 °F |
| DO Probe | HI764080 (included) |
| Logging Type | Manual log-on-demand (Max. 200 logs); Manual log-on-stability (Max. 200 logs); Interval logging *** (Max. 600 samples; 100 lots) |
| Logging Memory | up to 1000*** records |
| Connectivity | 1 micro USB port for charging and PC connectivity, 1 USB port for storage |
| GLP | Yes |
| Battery Type/Life | Built-in rechargeable battery witd up to 8 hours of continuous use |
| Power Supply | 5 VDC adapter (included) |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 202 x 140 x 12.7mm (8” x 5.5” x 0.5”) |
| Weight | 250 g (8.82 oz) |
| Ordering Information | edge® HI2004 includes benchtop docking station witd electrode holder, wall mount cradle, USB cable, HI 764080 Dissolved Oxygen electrode, HI 7041S Refill electrolyte solution, 2 DO membrane caps, 2 DO membrane cap o-rings, 5 VDC power adapter, and instruction. |
| Notes | * temperature limits will be reduced to actual probe/sensor limits. |
PACKING INFORMATION OF HANNA EDGE® DEDICATED DISSOLVED OXYGEN METER (HI2004)
VIDEO REVIEW OF HANNA EDGE® DEDICATED DISSOLVED OXYGEN METER (HI2004)
