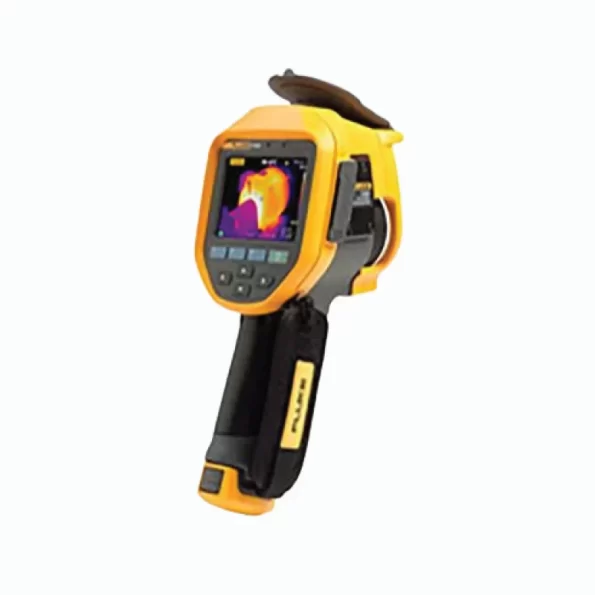

Fluke 9hz Thermal Imager (Ti400)
- Thermal sensitivity (NETD) ≤ 0.05 °C at 30 °C target temp (50 mK).
- Temperature measurement range -20 °C to +1200 °C (-4 °F to+2192 °F).
- Built-in digital camera (visible light) 5 megapixel industrial performance.
- Frame rate 60 Hz or 9 Hz versions.
The Fluke Ti400 is a high performance, 320 x 240 thermal imaging camera that has the resolution, wireless connectivity and temperature range that maintenance professionals need. And its future-ready in the bargain. You can test and measure with wireless speed and ease, and connect with other wireless devices.
FEATURES OF FLUKE 9HZ THERMAL IMAGER (TI400)
- High performance, 320×240 thermal imaging camera for maintenance professionals.
- Features LaserSharp® Auto Focus to produce consistently in-focus images.
- Offers Fluke Connect® App to share results with remote users via a smart phone.
- Measures temperaturesfrom-20 °C to +1200 °C (-4 °F to +2192 °F).
- Provides IR Fusion® technology with AutoBlend™ mode to help clearly identify potential problems with precisely blended visual and infrared images.
- Provides a one-handed, easy-to-use interface.
- Offers faster communication with wireless image transfer directly to PC, Apple® iPhone® or iPad®.
- Includes backlit ruggedized LCD capacitive touchscreen Captures additional digital images to show location or additional site details with IR-PhotoNotes™ photo annotation system.
- Digitally documents critical information along with the infrared image using IR-PhotoNotes™ or voice annotation.
- Works with optional interchangeable lenses for greater flexibility in additional applications.
- Includes rechargeable, field replaceable smart batteries with five-segment LED display to show charge levels.
- Captures high definition visible light images with built-in 5-megapixel industrial performance digital camera.
- Includes Fluke Connect® SmartView® Analysis and Reporting Software.
SPECIFICATION OF FLUKE 9HZ THERMAL IMAGER (TI400)
| Name | Details |
| Model | 87V |
| Brand | Fluke |
| Origin | Japan |
| Key Features | |
| IFOV (spatial resolution) | 1.31 mRad |
| Detector resolution | 320×240 (76,800 pixels) |
| Field of view | 24 °H x 17 °V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| Optional lenses | Telephoto lens, wide angle lens |
| Focus system | LaserSharp® Auto Focus for consistently in-focus images, manual focus |
| Laser distance meter | Yes |
| Wireless connectivity | Fluke Connect™ app compatible. Wireless connectivity to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN1 |
| IR-Fusion® technology | IR-Fusion® AutoBlend™ mode and Picture-in-Picture |
| Display | Touchscreen capacitive 3.5 inch diagonal landscape color VGA (640 x 480) LCD with backlight |
| Design | Rugged, ergonomic design for one-handed use |
| Thermal sensitivity (NETD) | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| Temperature measurement range | -20 °C to +1200 °C (-4 °F to+2192 °F) |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
| Data Storage and Image Capture | |
| Extensive memory options | Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection |
| File formats image | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| SmartView® software | SmartView® software, Fluke Connect™1, and SmartView® Mobile App—full analysis and reporting software |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes™ | Yes |
| Text annotation | Yes |
| Video recording | Standard and radiometric |
| Streaming video (remote display) | Via USB or WiFi hot spot to PC or via HDMI to HDMI compatible screen |
| Auto capture (temperature and interval) | Yes |
| Remote control | Yes |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| AC battery charging system | Two-bay battery charger or in imager charging. Optional 12 V automotive charging adapter |
| Temperature Measurement | |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| General Specifications | |
| Color palettes | 8 standard and 8 Ultra Contrast™: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Color alarms (temperature alarms) | High-temperature, low-temperature, and isotherm |
| Spot temp | Hot and cold spot markers |
| User-definable spot markers | 3 user definable spot markers on camera and in SmartView® software |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in) |
| Weight (battery included) | 1.04 Kg (2.3 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Notes | |
| 1Fluke Connect™ not available in all countries | |
