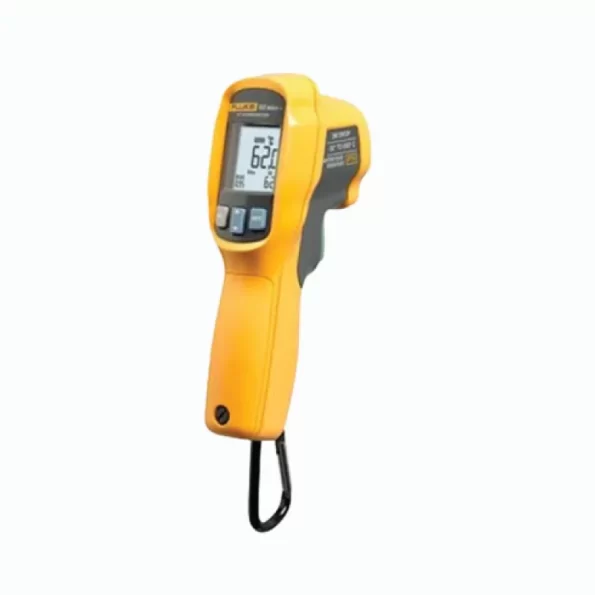

Fluke 62 MAX+ Handheld Infrared Laser Thermometer (62 MAX+)
- Temperature range -30°C to 650°C (-22°F to 1202°F).
- Accuracy ±1.0°C or ±1.0% .
- Response time (95%) < 500 ms (95% of reading).
- Spectral response 8 to 14 microns.
Fluke 62 MAX+ Handheld Infrared Laser Thermometer (62 MAX+)
Request a Call Back
- Ask a Question
Fluke 62 MAX+ Handheld Infrared Laser Thermometer (62 MAX+)
Ask a Question
The Fluke 62 MAX+ Handheld Infrared Laser Thermometer delivers the accuracy you need in an extremely rugged package. Just point, shoot, and read the temperature of many types of equipment. Get accurate readings form transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents.
FEATURES OF FLUKE 62 MAX+ HANDHELD INFRARED LASER THERMOMETER (62 MAX+)
- Temperature range -30°C to 650°C (-22°F to 1202°F).
- Accuracy ±1.0°C or ±1.0% .
- Response time (95%) < 500 ms (95% of reading).
- Spectral response 8 to 14 microns.
- Emissivity 0.10 to 1.00.
- Optical resolution 12:1 (calculated at 90% energy).
- Display resolution 0.1°C (0.2°F).
- Repeatability of readings ±0.5% of reading or <±0.5°C (1°F).
- Weight 255 g (8.99 oz).
- Size 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in).
- Operating temperature 0°C to 50°C (32°F to 122°F).
- Storage temperature -20°C to 60°C (-4°F to 140°F), (without battery).
- Operating humidity 10% to 90% RH non-condensing at 30°C (86°F).
- Operating altitude 2000 meters above mean sea level.
- Storage altitude 12,000 meters above mean sea level.
- IP rating IP 54 per IEC 60529.
- Drop test 3 meters.
- Vibration and shock IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms.
- Electromagnetic compliance IEC 61326-1: Portable electromagnetic equipment.
SPECIFICATION OF FLUKE 62 MAX+ HANDHELD INFRARED LASER THERMOMETER (62 MAX+)
Name | Details | |
Model | 62 MAX+ | |
Brand | Fluke | |
Origin | Japan | |
Temperature range | -30°C to 650°C (-22°F to 1202°F) | |
Accuracy | ±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 |
|
Response time (95%) | < 500 ms (95% of reading) | |
Spectral response | 8 to 14 microns | |
Emissivity | 0.10 to 1.00 | |
Optical resolution | 12:1 (calculated at 90% energy) | |
Display resolution | 0.1°C (0.2°F) | |
Repeatability of readings | ±0.5% of reading or <±0.5°C (1°F), whichever is greater | |
Power | AA battery | |
Battery life | 8 hours with laser and backlight on | |
Physical Specifications | ||
Weight | 255 g (8.99 oz) | |
Size | 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in) | |
Operating temperature | 0°C to 50°C (32°F to 122°F) | |
Storage temperature | -20°C to 60°C (-4°F to 140°F), (without battery) | |
Operating humidity | 10% to 90% RH non-condensing at 30°C (86°F) | |
Operating altitude | 2000 meters above mean sea level | |
Storage altitude | 12,000 meters above mean sea level | |
IP rating | IP 54 per IEC 60529 | |
Drop test | 3 meters | |
Vibration and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms | |
Electromagnetic compliance | IEC 61326-1: Portable electromagnetic equipment | |
Safety | IEC 61010-1: Pollution degree 2 IEC 60825-1: Class 2 |
PACKING INFORMATION OF FLUKE 62 MAX+ HANDHELD INFRARED LASER THERMOMETER (62 MAX+)
