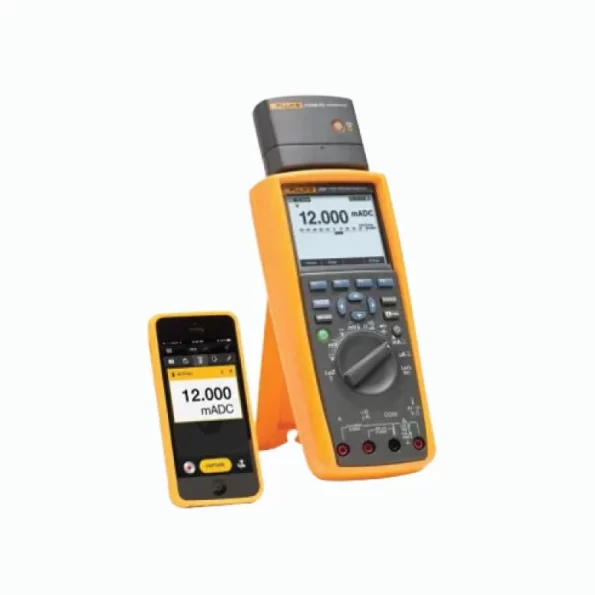

Fluke 289 True-RMS Data Logging Multimeter (289)

Relative humidity 0 to 90% (0 to 37°C), .
Electromagnetic compatibility EMC EN61326–1.
Vibration Random vibration per MIL-PRF-28800F Class 2.
Shock 1 meter drop per IEC/EN 61010–1 3rd Edition.

The Fluke 289 is the next generation high performance industrial logging multimeter. This Fluke Connect-compatible DMM is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. It provides the ability to log data and graphically review up 10,000 recorded events and logged readings with on-board TrendCapture. Zoom on trend provides a 14x zoom to view and analyze data—without needing a PC.

Because the 289 is Fluke Connect-compatible you can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Or you can share readings with your team in an instant anytime, from anywhere with ShareLive™ video call. It can help you solve problems faster and minimize downtime.

FEATURES OF FLUKE 289 TRUE-RMS DATA LOGGING MULTIMETER (289)

Provides up to a 14x zoom to view and analyze TrendCapture data in depth
Includes a selectable AC filter (smoothing mode) to help display a steadier reading when the input signal is changing rapidly or noisy.
Offers adjustable recording and auto hold thresholds to specify a percentage change in the readings that begins a new event
Features a large 50,000 count, 1/4 VGA dot matrix display with white backlight
Stores up to 15,000 recorded events so you can save multiple logging sessions before PC download is necessary
Provides two-terminal 50 ohm range with 1 milliohm resolution, 10 mA source current, for measuring and comparing differences in motor winding resistance or contact resistance
Includes low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
Provides LoZ Volts, a low impedance voltage function for eliminating ghost voltages Recommended when testing for absence or presence of live power
Features on-board help screens for measurement functions
Includes a real-time clock to automatically time stamp saved readings
Offers relative mode to remove test lead resistance from low ohms or capacitance measurements
Provides True-RMS AC voltage and current for accurate measurements on non-linear signals
Measures up to 10 A (20 A for 30 seconds)
Provides up to 100 mF capacitance range
Records transients as fast as 250 μs with peak capture
Includes premium test leads, alligator clips, and amp jack plugs
Offers optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
Works with optional FlukeView forms to enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
Includes a limited lifetime warranty.

SPECIFICATION OF FLUKE 289 TRUE-RMS DATA LOGGING MULTIMETER (289)

Name	Details
Model	289
Brand	Fluke
Origin	Japan
Specifications
Function
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
DC volts	Basic accuracy	0.025%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
AC volts	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
DC current	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
AC current	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
Temperature (excluding probe)	Basic accuracy	1.0%
Resistance	Range / resolution	50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Resistance	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
Capacitance	Basic accuracy	1.0%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Frequency	Basic accuracy	0.005%
Connectivity	Optional infrared connector via Fluke ir3000 FC
General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	6 AA alkaline batteries, IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20°C to 55°C
Temperature	Storage	-40°C to 60°C
Relative humidity	0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility	EMC EN61326–1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1 meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L)	22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-max-avg	Yes
Duty cycle	Yes
Pulse width	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/event logging	Yes
Logging memory	Up to 15,000 readings
Wireless connectivity (optional)	Yes
