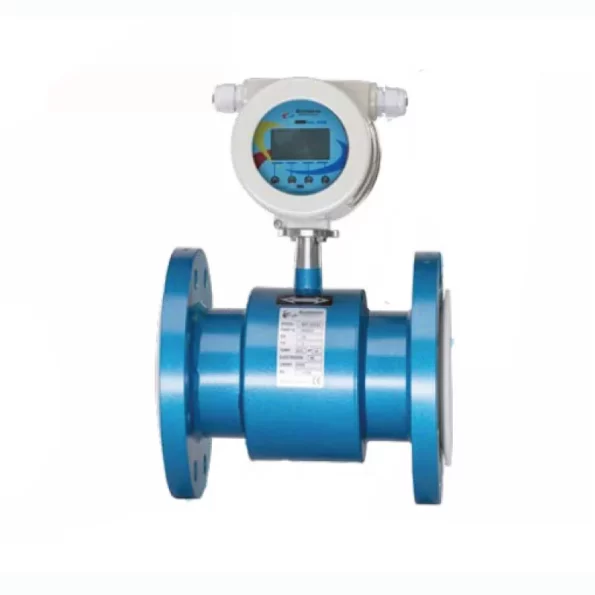

EuroMag 6 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-150S)
- Sensor Diameter DN150.
- Liquid Temperature -40°C / + 80°C.
- Available Diameters 6” inches(150mm).
- Convertes Compatibility MC608A/B/R/P, MC406.
Electromagnetic flowmeters are the best solution to measure conductive liquids with minimum conductivity of 5μS/cm, as they offer rapid response time, high measuring accuracy and long term stability. No moving parts in the pipe and no obstruction to the liquid, with great advantage of no-pressure loss and virtually maintenance free system. Our electromagnetic flowmeters cover a wide range of applications and satisfy every customer demand: flanged, wafer, threaded and insertions DN150 with pressure class up to ANSI900.
FEATURES OF EUROMAG 6 INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-150S)
- Flow tube Material AISI 304, AISI 316 (optional).
- Flanges Material Carbon steel (S235JR – 1.0037), AISI 304 optional, AISI 316 optional.
- Available electrodes AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum.
- Internal lining Ebonite.
- Liquid Temperature -40°C / + 80°C.
- Available Diameters 6” inches(150mm).
- Standard flanged connection EN1092-1 PN 16, ANSI 150.
- Flanged Connection on request AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, others on request.
- Standard Operation Pressure 21 Bar.
- Pressure Drop Class DN≤80 ΔP10 (< 0,10 bar) and DN≥100 ΔP16 (< 0,16 bar).
- Installation requirements/condition U0-D0.
- Protection Degree IP68 permanent submersion at 1,5 m (EN 60529).
- Convertes Compatibility MC608A/B/R/P, MC406.
- Electrical Connections Cableglands M20 x 1.5 + terminal box + sealing resin.
SPECIFICATION OF EUROMAG 6 INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-150S)
| Name | Details |
| Model | Euromag-FM-150S |
| Brand | EuroMag |
| Origin | italy |
| Flow tube Material | AISI 304, AISI 316 (optional). |
| Flanges Material | Carbon steel (S235JR – 1.0037), AISI 304 optional, AISI 316 optional. |
| Available electrodes | AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum. |
| Internal lining | Ebonite. |
| Liquid Temperature | -40°C / + 80°C. |
| Available Diameters | 6” inches(150mm). |
| Standard flanged connection | EN1092-1 PN 16, ANSI 150. |
| Flanged Connection on request | AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, others on request. |
| Standard Operation Pressure | 21 Bar. |
| Pressure Drop Class | DN≤80 ΔP10 (< 0,10 bar) and DN≥100 ΔP16 (< 0,16 bar). |
| Installation requirements/condition | U0-D0. |
| Protection Degree | IP68 permanent submersion at 1,5 m (EN 60529). |
| Convertes Compatibility | MC608A/B/R/P, MC406. |
| Electrical Connections | Cableglands M20 x 1.5 + terminal box + sealing resin. |
PACKING INFORMATION OF EUROMAG 6 INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-150S)
VIDEO REVIEW OF EUROMAG 6 INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-150S)
