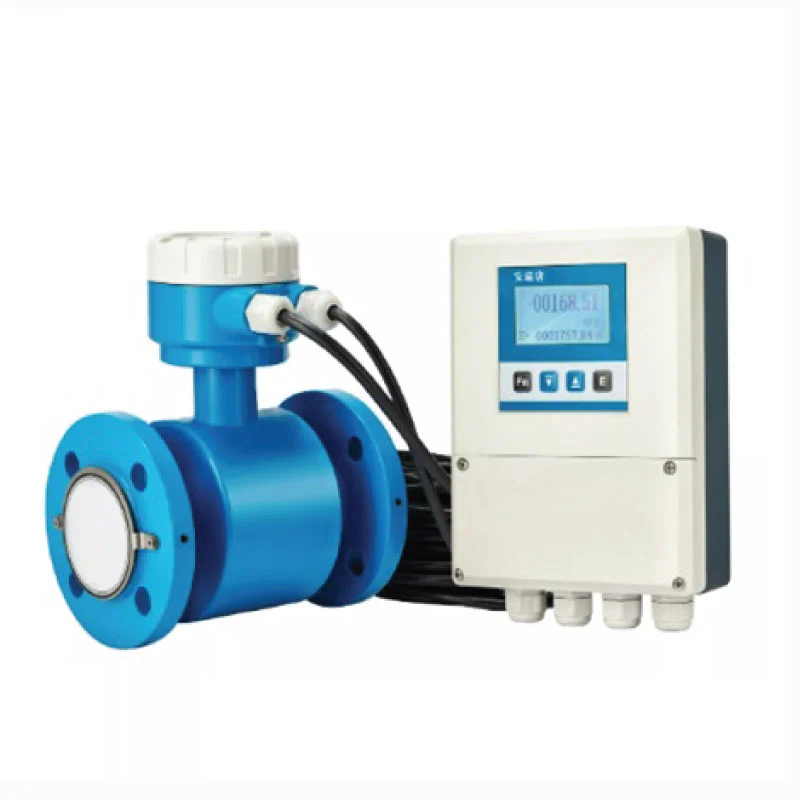

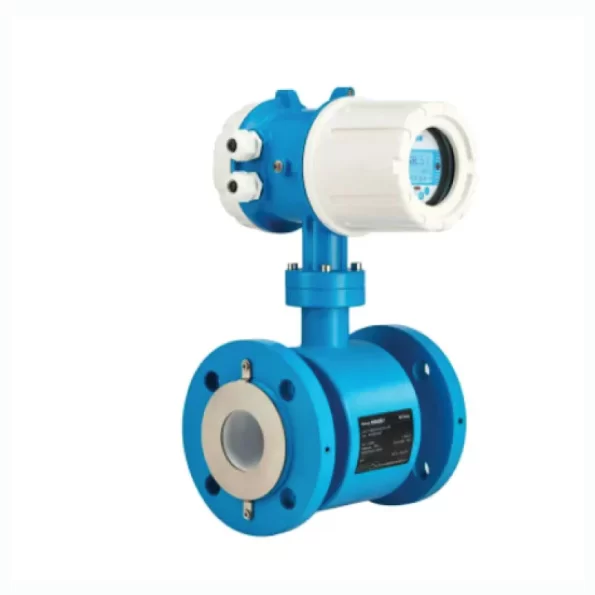

EuroMag 1 Inch Digital Electromagnetic Water Flow Meter (Euromag-FM-25S)

Electromagnetic flowmeters are the best solution to measure conductive liquids with minimum conductivity of 5μS/cm, as they offer rapid response time, high measuring accuracy and long term stability. No moving parts in the pipe and no obstruction to the liquid, with great advantage of no-pressure loss and virtually maintenance free system. Our electromagnetic flowmeters cover a wide range of applications and satisfy every customer demand: flanged, wafer, threaded and insertions DN25 with pressure class up to ANSI900.

FEATURES OF EUROMAG 1 INCH DIGITAL ELECTROMAGNETIC WATER FLOW METER (EUROMAG-FM-25S)

• Flow tube Material AISI 304, AISI 316 (optional).
• Flanges Material Carbon steel (S235JR – 1.0037), AISI 304 optional, AISI 316 optional.
• Available electrodes AISI316 (standard), Hastelloy C, Hastelloy B, Titanium, Tantalum, Platinum.
• Internal lining Ebonite.
• Liquid Temperature -40°C / + 80°C.
• Available Diameters 1” inches(25mm).
• Standard flanged connection EN1092-1 PN 16, ANSI 150.
• Flanged Connection on request AS 2129 (Table D, E, F), AS 4087 (PN 16, 21), KS10K, others on request.
• Standard Operation Pressure 21 Bar.
• Pressure Drop Class DN≤80 ΔP10 (< 0,10 bar) and DN≥100 ΔP16 (< 0,16 bar).
• Installation requirements/condition U0-D0.
• Protection Degree IP68 permanent submersion at 1,5 m (EN 60529).
• Convertes Compatibility MC608A/B/R/P, MC406.
• Electrical Connections Cableglands M20 x 1.5 + terminal box + sealing resin.
