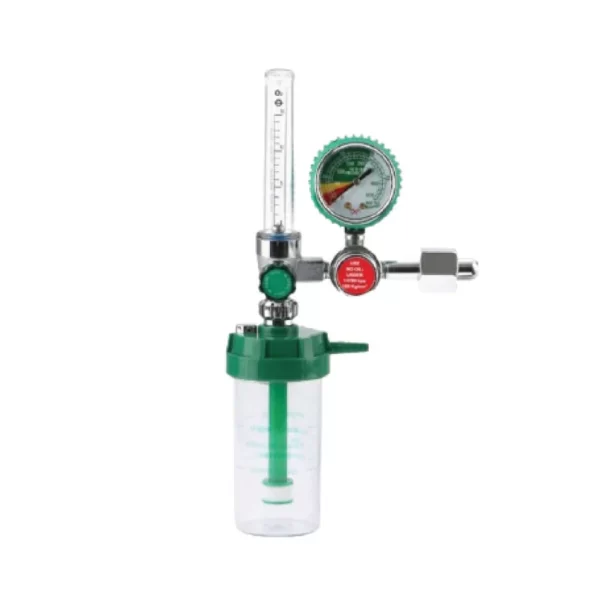

AmCareMed Oxygen Flow Meter (AM-O-GR-02)
- Gas Type: Oxygen, Medical Air.
- Flow range: 0-5, 0-10, 0-15LPM.
- 3000 psi maximum inlet pressure.
- Easy to read flow rate window.
Amcaremed provides a flexible integrated valve regulator to meet hospital cylinder gas requirements. With an inlet connection for oxygen or air according to the various standards used in different countries. All of the flowmeter regulators have easily accessible flow adjustment knobs to provide hospitals with precise control of multiple gas sources.
FEATURES OF AMCAREMED OXYGEN FLOW METER (AM-O-GR-02)
- Gas Type: Oxygen, Medical Air
- Flow range: 0-5, 0-10, 0-15LPM
- Chromed forged brass body for endurable and compact
- Backpressure compensated flowmeters
- 3000 psi maximum inlet pressure
- Easy to read flow rate window
- Accessories: humidifier bottle, cannula
- Connecting thread: G 5/8, CGA540, G 5/8, G3 / 4, DIN477, and CGA870.
SPECIFICATION OF AMCAREMED OXYGEN FLOW METER (AM-O-GR-02)
| Name | Details |
| Model | AM-O-GR-02 |
| Brand | AmCareMed |
| Origin | China |
| Delivery flow | 0-5, 0-10, 0-15LPM |
| Inlet connection | CGA540 |
| Working pressure | 50PSI |
| Gas Type | Oxygen, Medical Air |
| Flow Range | 0-5, 0-10, 0-15LPM |
| Pressure MIX | 3000 psi |
| Accessories | Humidifier Bottle, Cannula |
| Connecting Thread | G 5/8, CGA540, G 5/8, G3 / 4, DIN477, and CGA870. |
PACKING INFORMATION OF AMCAREMED OXYGEN FLOW METER (AM-O-GR-02)
VIDEO REVIEW OF AMCAREMED OXYGEN FLOW METER (AM-O-GR-02)
